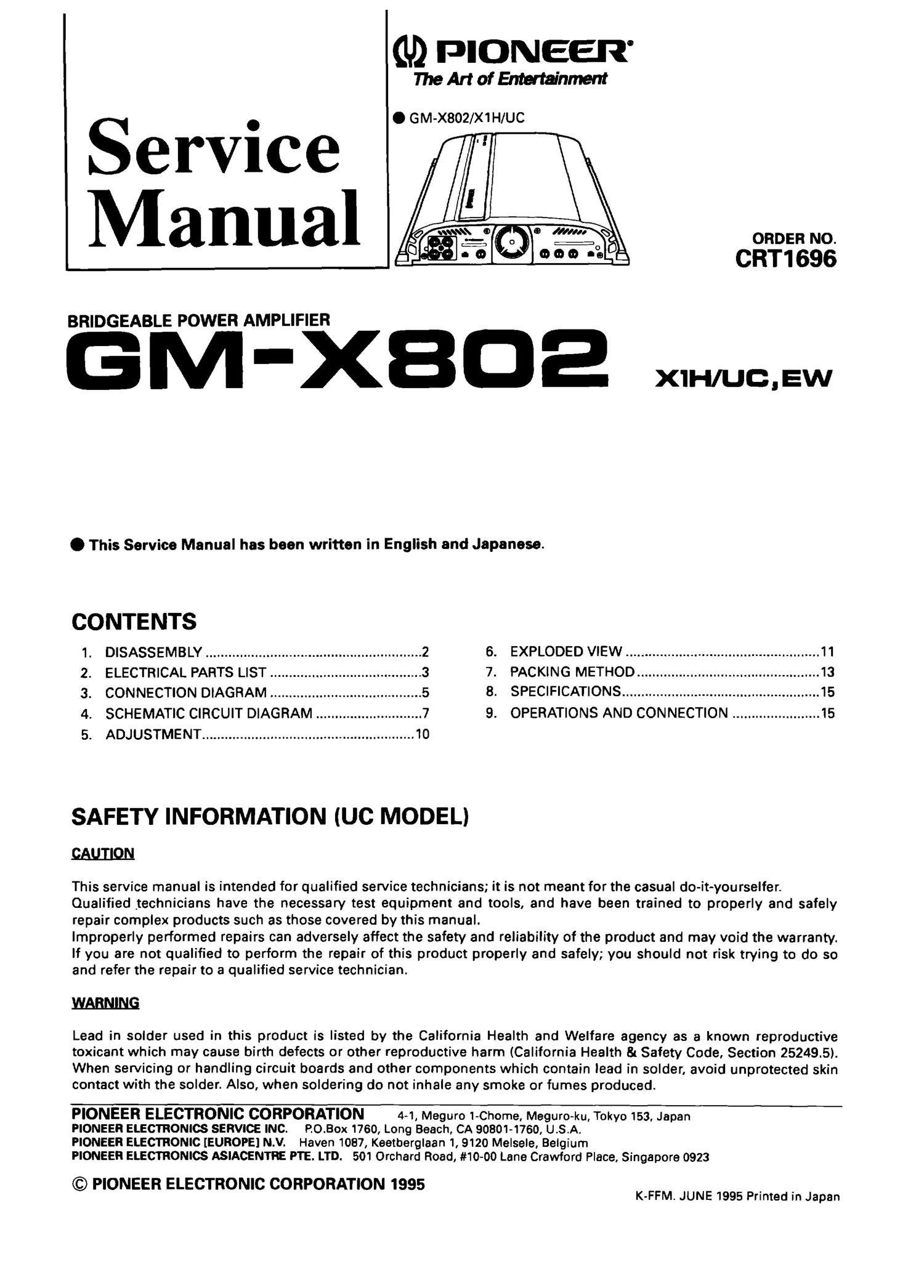

Page 1

GI) PIONEER"

TheArtofEntertainmem

O G M-X802/X1H/UC

ORDER NO.

CRT1 696

BRIDGEABLE POWER AMPLIFIER

M-xua xmaew

O This Service Manual has been written in English and Japanese.

CONTENTS

1. DISASSEMBLY ......................................................... 2 6. EXPLODEDVIEW ................................................... 11
2. ELECTRICAL PARTS LIST ........................................ 3 7. PACKING METHOD ................................................ 13
3. CONNECTION DIAGRAM ........................................ 5 a. SPECIFICATIONS .................................................... 15
4. SCHEMATIC CIRCUIT DIAGRAM ............................ 7 9. OPERATIONS AND CONNECTION ....................... 15
5. ADJUSTMENT ........................................................ 10

SAFETY INFORMATION (UC MODELI
CAUIIQN

This service manual is intended for qualified service technicians; it iS not meant for the casual dO-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely
repair complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so
and refer the repair to a qualified service technician.

EARNING

Lead in solder used in this product iS listed by the California Health and Welfare agency as a known reproductive
toxicant which may cause birth defects or other reproductive harm (California Health Sr Safety Code, Section 25249.5).
When servicing or handling circuit boards and other components which contain lead in solder, avoid unprotected Skin
contact with the solder. Also, when soldering do not inhale any smoke or fumes produced.

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan
PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Lane Crawford Place, Singapore 0923

© PIONEER ELECTRONIC CORPORATION 1995

K-FFM. JUNE 1995 Printed in Japan
