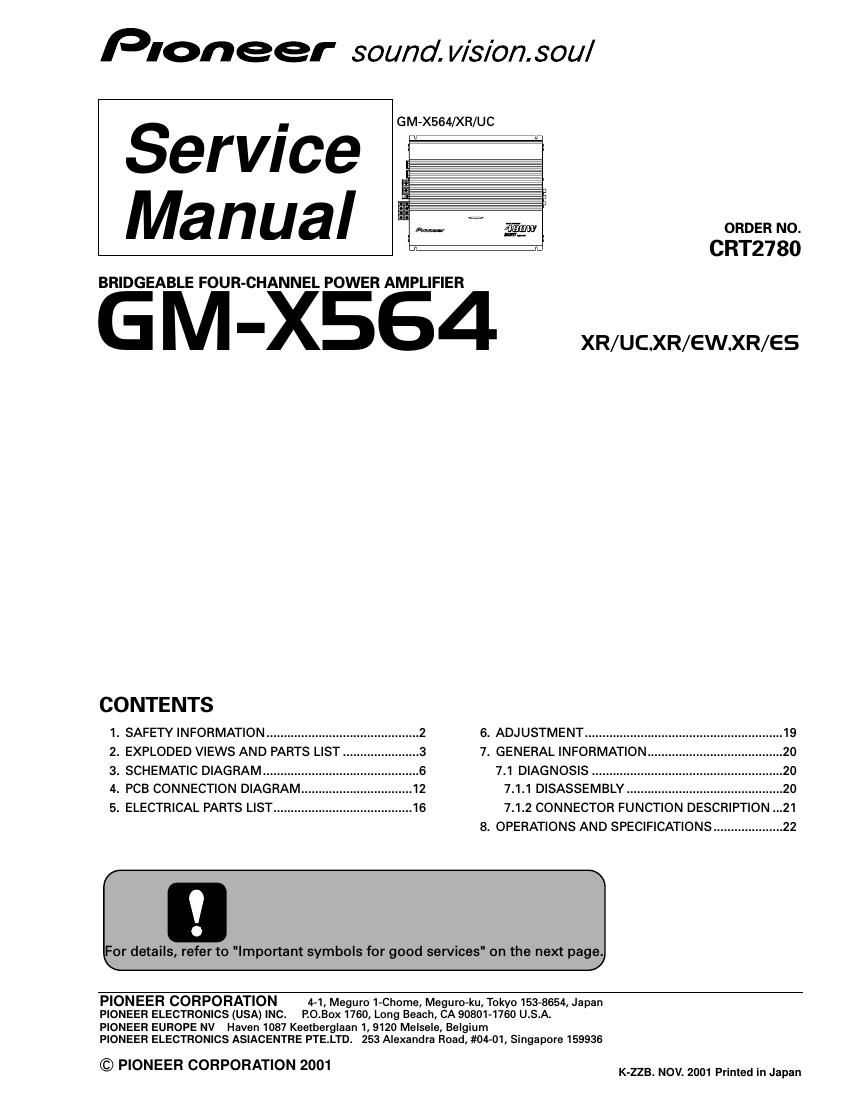

Page 1

Pioneer sound. vision. soul

GM»X564/XR/UC

Service
Manual

BRIDGEABLE FOUR-CHANNEL POWER AMPLIFIER

G M-X564 WW

ORDER NO.

CRT2780

CONTENTS
1. SAFETY INFORMATION ............................................ 2 6. ADJUSTMENT ......................................................... 19
2. EXPLODED VIEWS AND PARTS LIST.. ...3 7. GENERAL INFORMATION ....20
3. SCHEMATIC DIAGRAM ......................... 7.1 DIAGNOSIS ................ ....20
4. PCB CONNECTION DIAGRAM 7.1.1 DISASSEMBLY ............................................. 20
5. ELECTRICAL PARTS LIST.... 7.1.2 CONNECTOR FUNCTION DESCRIPTION ...21
8. OPERATIONS AND SPECIFICATIONS .................... 22

For details, refer to "Important symbols for good services" on the next page.

PIONEER CORPORATION 4»1,Meguro 1»Chome, Meguro-ku, Tokyo 15343654, Japan
PIONEER ELECTRONICS (USA) INC. R0.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936

© PIONEER CORPORATION 2001 K-ZZB. NOV. 2001 Printed in Japan

Page 2

GM-X564

[ Important symbols for good services I
In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely.
When you find the procedures bearing any ofthe symbols, be sure to fulfill them:

1. Product safety

You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and
should keep the safety during servicing by following the safety instructions described in this manual.

N

. Adjustments

To keep the original performances ofthe product, optimum adjustments or specification confirmation is indispensable.
In accordance with the procedures or instructions described in this manual, adjustments should be performed.

3. Cleaning

6 For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning,
proper cleaning should be performed to restore their performances.

§

4. Shipping mode and shipping screws

To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or
the shipping screws should be installed before shipping out in accordance with this manual, if necessary.

5. Lubricants, glues, and replacement parts
» Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying
glue may lead to failures or troubles in the product By following the instructions in this manual, be sure to apply the
a prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed
ones should be used.

1. SAFETY INFORMATION
. UC model

CAUTION

This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.

Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair

complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so

and refer the repair to a qualified service technician.

WARNING

This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of

California to cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 - Proposition 65
