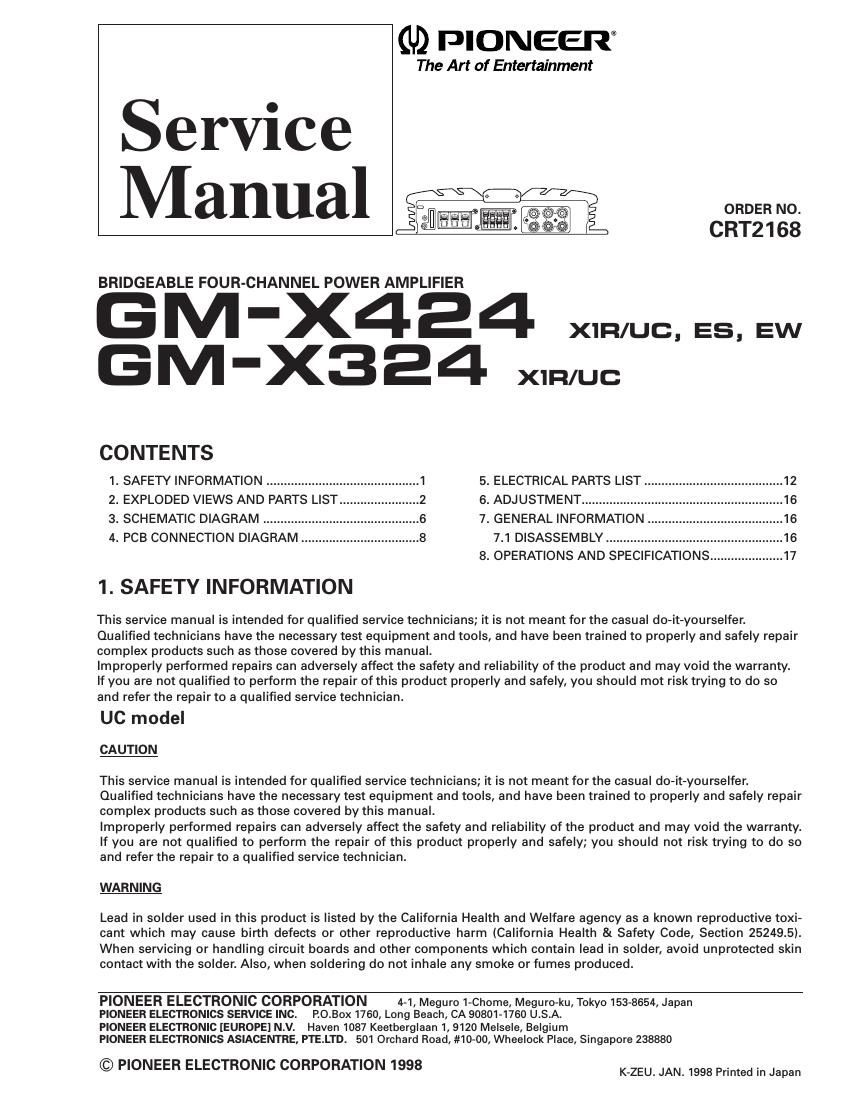

Pioneer gmx 424 service manual
This is the 21 pages manual for pioneer gmx 424 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer gmx 424 service manual (Ocr-read)
Page 1
2 GM-X424, GM-X324 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING 1 Contain Box See Contrast table (2) 2 Carton See Contrast table (2) 3 Protector HHP0020 4 Polyethylene Bag HEG0009 5 Screw(x4) BYC40P180FZK6 Polyethylene Bag HEG0011 7 Terminal(x8) See Contrast table (2) 8 Cord Assy See Contrast table (2) 9-1 Owners Manual See Contrast table (2) 9-2 Owners Manual See Contrast table (2) * 9-3 Warranty Card See Contrast table (2) * 9-4 Caution Card See Contrast table (2) * 9-5 Card See Contrast table (2) (1) PACKING SECTION PARTS LIST Mark No. Description Part No. Mark No. Description Part No. NOTE: - Parts marked by *are generally unavailable because they are not in our Master Spare Parts List. - Screws adjacent to Ñmark on the product are used for disassembly.Fig. 1
Page 2
3 GM-X424, GM-X324 (2) CONTRAST TABLE GM-X424/X1R/UC, GM-X424/X1R/ES, GM-X424/X1R/EW and GM-X324/X1R/UC are constructed the same except for the following: Part No. GM-X424 GM-X324 Mark No. Symbol and Description X1R/UC X1R/ES X1R/EW X1R/UC 1 Contain Box HHL0142 HHL0143 HHL0144 HHL0141 2 Carton HHG0142 HHG0143 HHG0144 HHG0141 7 Terminal(x8) HKC0001 HKC0003 HKC0003 HKC0003 8 Cord Assy Not used HDE4419 HDE4419 Not used 9-1 Owners Manual HRD0052 HRD0050 HRD0055 HRD0054 9-2 Owners Manual Not used HRD0053 Not used Not used * 9-3 Warranty Card HRY1070 Not used HRY1087 Not used * 9-4 Caution Card HRP0006 Not used Not used Not used * 9-5 Card Not used Not used Not used ARY1048 -Owner's Manual Model Part No. Language GM-X424/X1R/UC HRD0052 English, French GM-X424/X1R/ES HRD0050 English, Spanish HRD0053 Arabic, Portuguese(B) GM-X424/X1R/EW HRD0055 English, French, German, Dutch, Spanish, Italian GM-X324/X1R/UC HRD0054 English, French
