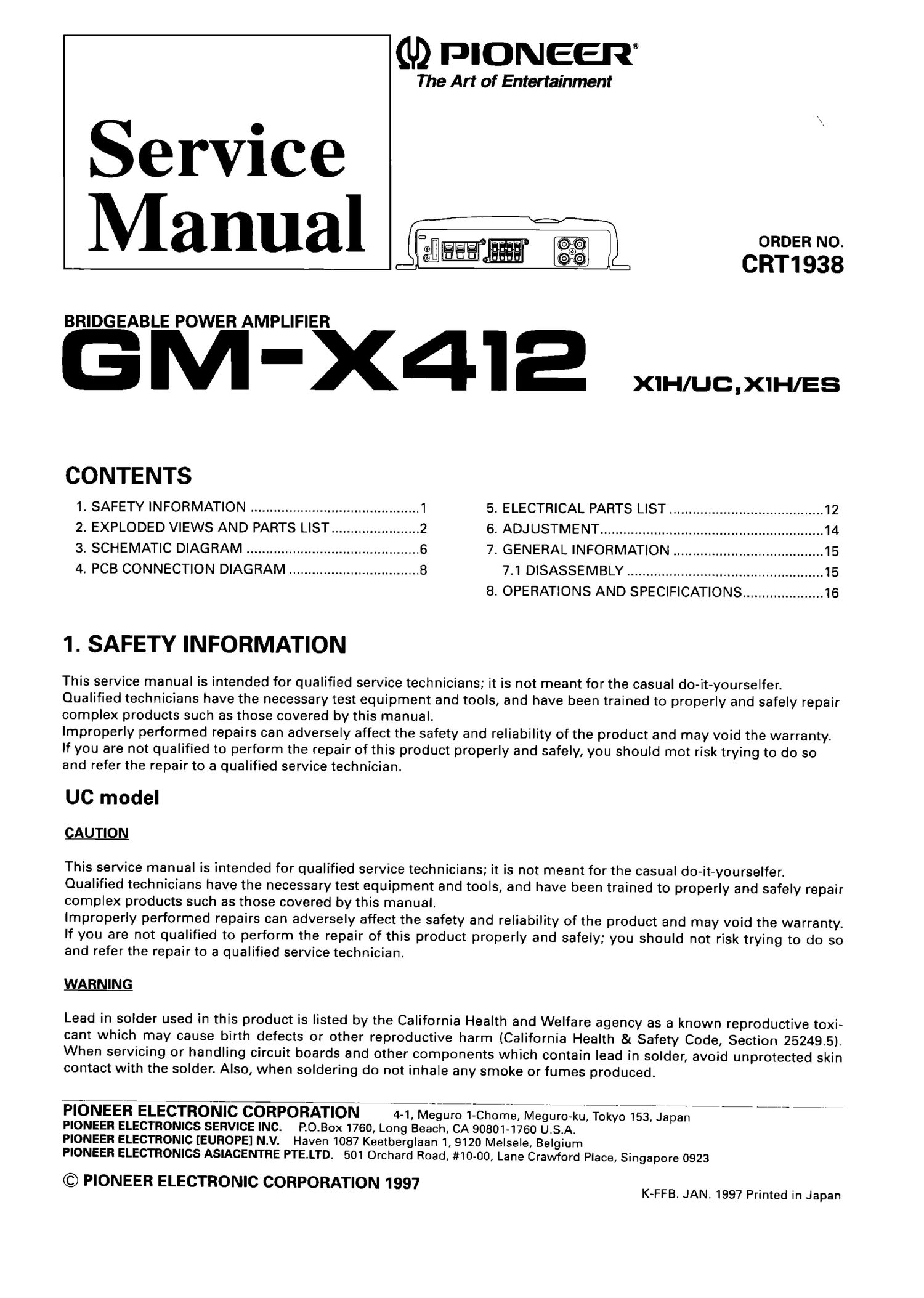

(ll) PIONEER®

The Art of Entertainment

Service
Manua

BRIDGEABLE POWER AMPLIFIER

G M -X41 2 x...,u..,x...,..

ORDER NO.

CRT1938

CONTENTS
1. SAFETY INFORMATION ............................................ 1 5. ELECTRICAL PARTS LIST ........................................ 12
2. EXPLODED VIEWS AND PARTS LIST ....................... 2 6. ADJUSTMENT .......................................................... 14
3. SCHEMATIC DIAGRAM ............................................. 6 7. GENERAL INFORMATION ....................................... 15
4. PCB CONNECTION DIAGRAM .................................. 8 7.1 DISASSEMBLY ................................................... 15

8. OPERATIONS AND SPECIFICATIONS ..................... 16

1. SAFETY INFORMATION

This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product pr0per|y and safely, you should mot risk trying to do so
and refer the repair to a qualified service technician.

UC model

CAUTION

This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.

If you are not qualified to perform the repair of this product pr0per|y and safely; you should not risk trying to do so
and refer the repair to a qualified service technician.

WARNING

Lead in solder used in this product is listed by the California Health and Welfare agency as a known reproductive toxi-
cant which may cause birth defects or other reproductive harm (California Health 8: Safety Code, Section 25249.5).
When servicing or handling circuit boards and other components which contain lead in solder, avoid unprotected skin
contact with the solder. Also, when soldering do not inhale any smoke or fumes produced.

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan
PIONEER ELECTRONICS SERVICE INC. P.0.Box 1760, Long Beach, CA 90801-1760 U.S.A.

PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1,9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 501 Orchard Road, #10-00, Lane Crawford Place, Singapore 0923

© PIONEER ELECTRONIC CORPORATION 1997 K-FFB. JAN. 1997 printed in Japan

Page 2

GM-X4'IE

2. EXPLODED VIEWS AND PARTS LIST

2.1. PACKING METHOD

NOTE:

. Parts marked by * "are generally unavailable because they are not in our Master Spare Parts List.

. Screws adjacent to V mark on the product are used for disassembly.

l1) PARTS LIST

Mark No. Description

Part No.

1 Contain Box

2 Canon

3 Protector

4 Polyethylene Bag
5-1 Screw Assy

See Contrast table (2)
See Contrast table (2)
HHP0002
HEGOO10
See Contrast table (2)

Mark No. Description Part No.
T 5-2 Screwlle) ' avcfimor'zk
5-3 Polyethylene Bag HEGOO11

*9!-

5-4 Terminalle)
6 Cord Assy
7-1 Owners Manual

7-2 Warranty Card
7-3 Caution Card

See Contrast table (2)
See Contrast table (2)
See Contrast table (2)

HRY1070
See Contrast table (2)
