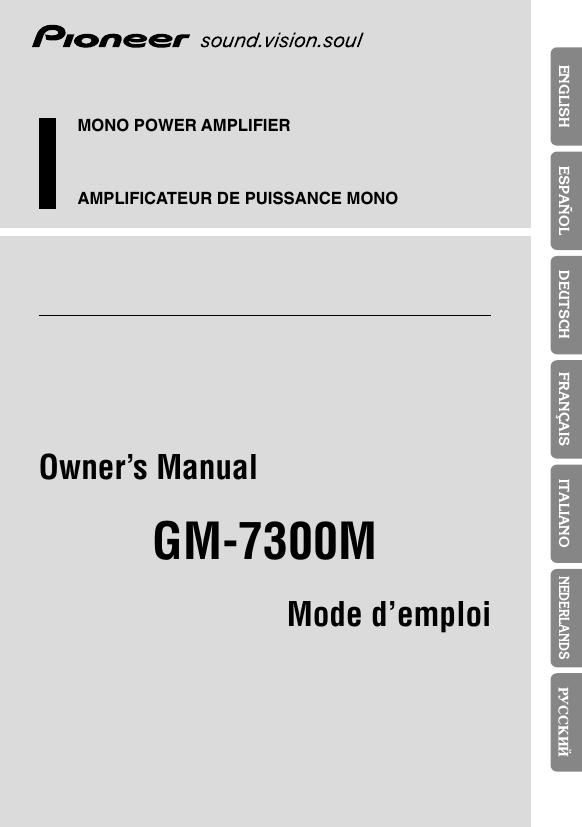

Pioneer gm 7300 m owners manual
This is the 85 pages manual for pioneer gm 7300 m owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer gm 7300 m owners manual (Ocr-read)
Page 1
1Before Using This Product ...................... 1 Visit our website ................................................ 1 In case of trouble .............................................. 2 About This Product .......................................... 2 CAUTION ........................................................ 2 WARNING ........................................................ 2 Setting the Unit .......................................... 3 Gain Control ...................................................... 4 LPF (Low-Pass-Filter) Cut Off Frequency Control ........................................................ 4 Power Indicator ................................................ 4 BFC (Beat Frequency Control) Switch ............ 4 Bass Boost Control ............................................ 4 Connecting the Unit .................................. 5 Connection Diagram ........................................ 6 Connecting the Power Terminal ........................ 7 Connecting the Speaker Terminals .................. 8 Using the Speaker Input .................................... 8 Connecting the Speaker Wires .......................... 9 Installation ................................................ 10 Example of installation on the floor mat or on the chassis ...................................... 10 Specifications .......................................... 11 Thank you for purchasing this PIONEER product. Before attempting operation, be sure to read this manual. Private households in the 25 member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one). For countries not mentioned above, please contact your local authorities for the correct method of disposal. By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health. Visit our website Visit us at the following site: - Register your product. We will keep the details of your purchase on file to help you refer to this information in the event of an insurance claim such as loss or theft. - We offer the latest information about Pioneer Corporation on our website. If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling. Contents Before Using This Product
Page 2
ENGLISHESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS êìëëäàâ 2 In case of trouble When the unit does not operate properly, contact your dealer or the nearest autho- rized PIONEER Service Station. About This Product This product is an amplifier for the sub- woofer. If both L (left) and R (right) chan- nels are connected to the RCA input of this product, output is mixed because this product is a mono amplifier. CAUTION Never replace the fuse with one of greater value or rating than the original fuse. Use of an improper fuse could result in over- heating and smoke and could cause dam- age to the product and injury including burns. WARNING - Always use the special red battery and ground wire [RD-223], which is sold separately. Connect the battery wire directly to the car battery positive terminal (+) and the ground wire to the car body. - Do not touch the amplifier with wet hands. Otherwise you may get an electric shock. Also, do not touch the amplifier when it is wet. - For traffic safety and to maintain safe driving conditions, keep the volume low enough so that you can still hear normal traffic sound. - Check the connections of the power supply and subwoofer if the fuse of the separately sold bat- tery wire or the amplifier fuse blows. Detect the cause and solve the problem, then replace the fuse with another one of the same size and rating. - To prevent malfunction of the amplifier and sub- woofer, the protective circuit will cut the power supply to the amplifier (sound will stop) when an abnormal condition occurs. In such a case, switch the power to the system OFF and check the connection of the power supply and subwoofer. Detect the cause and solve the problem. - Contact the dealer if you cannot detect the cause. - To prevent an electric shock or short-circuit during connection and installation, be sure to disconnect the negative (–) terminal of the battery beforehand. - Confirm that no parts are behind the panel when drilling a hole for installation of the amplifier. Be sure to protect all cables and important equipment such as fuel lines, brake lines and the electrical wiring from damage. - DO NOT allow amplifier to come into contact with liquids due to, for example, the location where the amplifier is installed. Electrical shock could result. Also, amplifier and speaker damage, smoke, and overheating could result from contact with liquids. In addition, the amplifier surface and the surface of any attached speakers could become hot to the touch and minor burns could result.
