Pioneer gm 3400 t service manual

This is the 32 pages manual for pioneer gm 3400 t service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 32
pioneer gm 3400 t service manual

Extracted text from pioneer gm 3400 t service manual (Ocr-read)

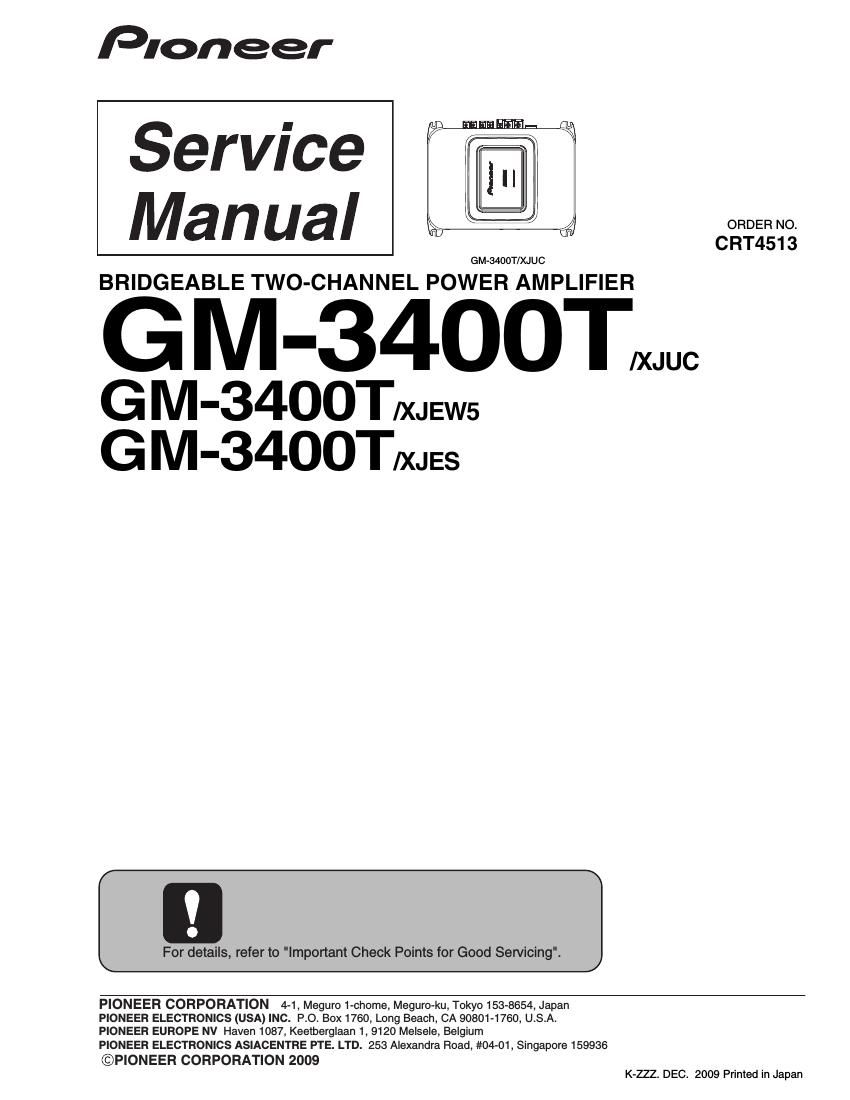

Page 1

Pioneer

Service
Manual

GM-GAOOT/XJUC

BRIDGEABLE TWO-CHANNEL POWER AMPLIFIER

GM-3400Tm

GM'34OOT/XJEW5
GM'34OOT/XJES

For details, refer to "Important Check Points for Good Servicing".

ORDER NO.

CRT4513

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. PO. BOX1760, Long Beach, CA 90801-1760, USA.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

@PIONEER CORPORATION 2009

K-ZZZ. DEC

. 2009 Printed in Japan

Page 2

SAFETY INFORMATION

CAUTION

This sen/ice manual is intended for qualified sen/ice technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.

If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so

and refer the repair to a qualified sen/ice technician.

WARNING

This product may contain a chemical known to the State of California to cause cancer, or birth defects or
other reproductive harm.
Health & Safety Code Section 25249.6 - Proposition 65

Where in a manufacturers service documentation, for example in circuit diagrams or lists

of components, a symbol is used to indicate that a specific component shall be replaced only
by the component specified in that documentation for safety reasons, the following symbol shall
be used:

&

2 GM-3400T/XJUC
