pioneer gm 3200 t service manual

Extracted text from pioneer gm 3200 t service manual (Ocr-read)

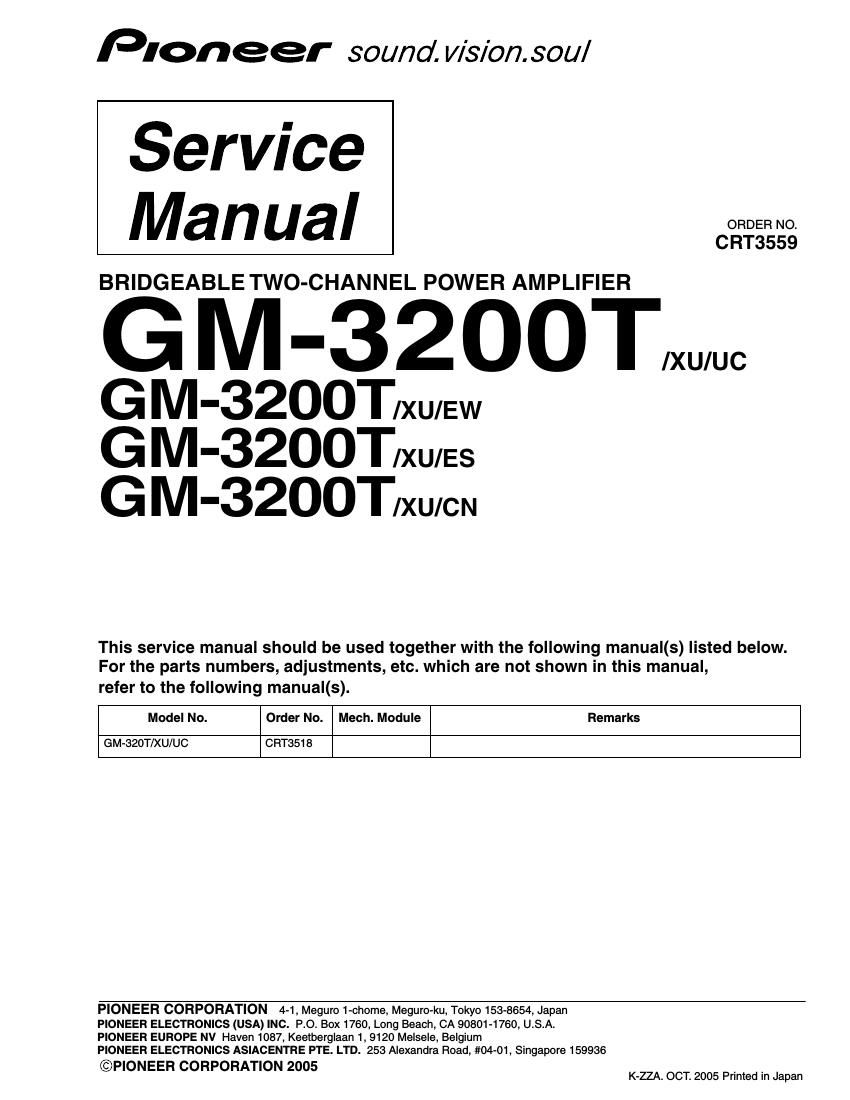

Page 1

Pioneer sound. vision. sou/

Service
Manual $5223

BRIDGEABLE TWO-CHANNEL POWER AMPLIFIER

G M -3200T,xu,uc

GM'3200T/XU/EW
GM-3200T/xwes
GM'3200T/XU/CN

This service manual should be used together with the following manual(s) listed below.
For the parts numbers, adjustments, etc. which are not shown in this manual,
refer to the following manual(s).

Model No. Order No. Mech. Module Remarks

GM-320T/XU/UC CRT3518

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. F'.O. BOX 1760, Long Beach, CA 90801-1760, USA.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

©P|ONEER CORPORATION 2005 . .
K-ZZA. OCT. 2005 Printed In Japan

Page 2

1 - 2 - 3 - 4

SAFETY INFORMATION

WARNING

This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of

California to cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 - Proposition 65

EXPLODED VIEWS AND PARTS LIST

PACKING(Page 6)
PACKING SECTION PARTS LIST

*:Non spare part

Mark No. Description GM-320T/XU/UC GM-3200T/XU/UC
7 Carton CHG5596 CHG5595
8 Contain Box CHL5596 CHL5595
9-2 Owner's Manual CRD4015 CRD4016
* 9-4 Caution Card CRP1324 Not used
Mark No. Description GM-320T/XU/UC GM-32OOT/XU/EW
6 Polyethylene Bag CEG1181 CEG1057(Cover)
7 Carton CHG5596 CHG5597
8 Contain Box CHL5596 CHL5597
9-2 Owner's Manual CRD4015 CRD4014
9-3 Card ARY1048 Not used
* 9-4 Caution Card CRP1324 Not used
9-5 Warranty Card Not used CRY1157
Mark No. Description GM-320T/XU/UC GM-3200T/XU/ES
6 Polyethylene Bag CEG1181 CEG1057(Cover)
7 Carton CHG5596 CHG5598
8 Contain Box CHL5596 CHL5598
9-2 Owner's Manual CRD4015 CRD4017
9-3 Card ARY1048 Not used
* 9-4 Caution Card CRP1324 Not used
9-6 Owner's Manual Not used CRD4018
Mark No. Description GM-320T/XU/UC GM-3200T/XU/CN
6 Polyethylene Bag CEG1181 CEG1057(Cover)
7 Carton CHG5596 CHG5599
8 Contain Box CHL5596 CHL5599
9-2 Owner's Manual CRD4015 CRB2107
* 9-3 Card ARY1048 Not used
* 9-4 Caution Card CRP1324 Not used
* 9-5 Warranty Card Not used ARY7046
WI
1 I 2 - 3 I
