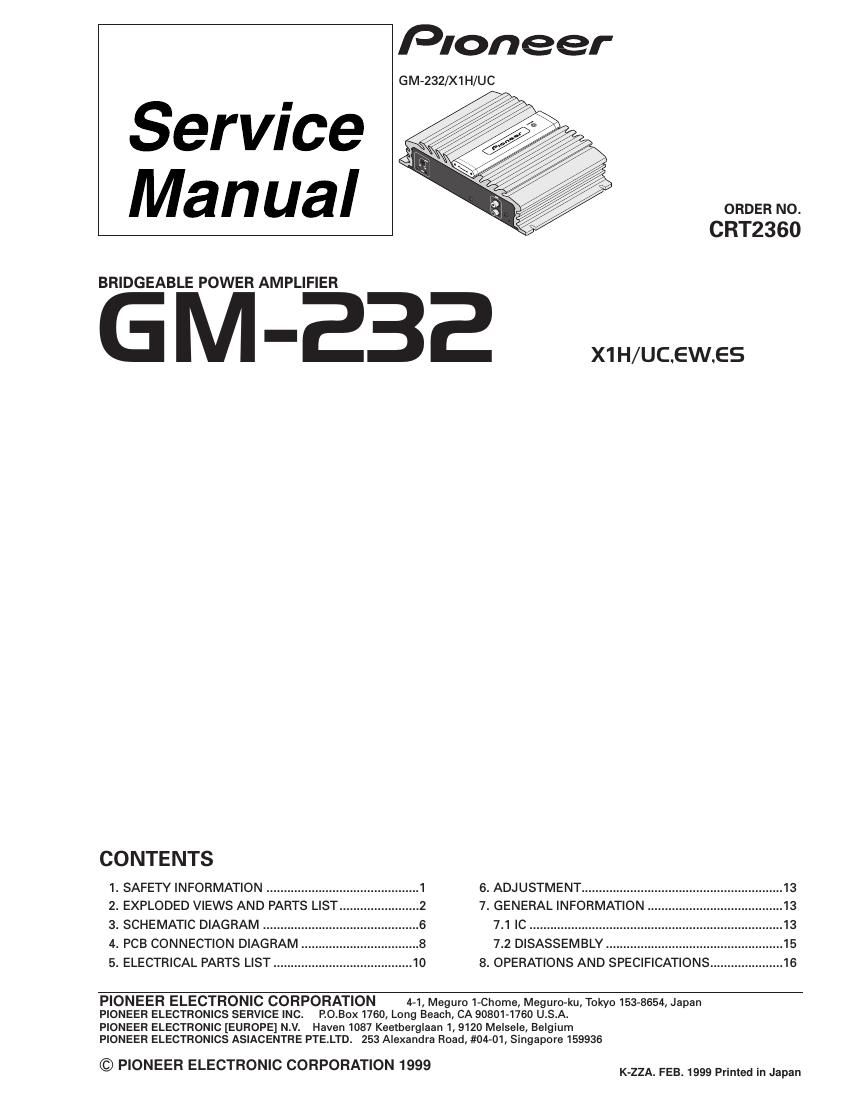

Pioneer gm 232 service manual

This is the 18 pages manual for pioneer gm 232 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 18
pioneer gm 232 service manual

Extracted text from pioneer gm 232 service manual (Ocr-read)


Page 1

2 GM-232 CAUTION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so and refer the repair to a qualified service technician. W ARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 - Proposition 65 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING 8 11 9 10 1 2 7 5 4 6 3 1. SAFETY INFORMATION - GM-232/X1H/UC

Page 2

3 GM-232 NOTE: -Parts marked by * are generally unavailable because they are not in our Master Spare Parts List. -Screws adjacent to Ñmark on the product are used for disassembly. 1 Screw BYC40P180FZK 2 Polyethylene Bag HEG0011 3 Polyethylene Bag HEG0010 4 Carton See Contrast table(2) 5 Contain Box See Contrast table(2) 6 Protector HHP0048 7-1 Owners Manual See Contrast table(2) 7-2 Owners Manual See Contrast table(2) * 7-3 Warranty Card See Contrast table(2) * 7-4 Card See Contrast table(2) * 7-5 PRC See Contrast table(2) 8 Cord Assy See Contrast table(2) 9 Cord(Remote) See Contrast table(2) 10 Cord(Power) See Contrast table(2) 11 Cord(Ground) See Contrast table(2) Mark No. Description Part No. (1) PACKING SECTION PARTS LIST -Owners Manual Model Part No. Language GM-232/X1H/UC HRD0080 English, French GM-232/X1H/EW HRD0082 English, Spanish, German, French, Italian, Dutch GM-232/X1H/ES HRD0083 English, Spanish HRD0084 Portuguese(B), Arabic Part No. Mark No.Symbol and Description GM-232/X1H/UC GM-232/X1H/EW GM-232/X1H/ES 4 Carton HHG0201 HHG0186 HHG0203 5 Contain Box HHL0201 HHL0186 HHL0203 7-1 Owners Manual HRD0080 HRD0082 HRD0083 7-2 Owners Manual Not used Not used HRD0084 * 7-3 Warranty Card Not used HRY1087 Not used * 7-4 Card ARY1048 Not used Not used * 7-5 PRC HRY0007 Not used Not used 8 Cord Assy Not used HDW0004 HDW0004 9 Cord(Remote) Not used HDE0007 HDE0007 10 Cord(Power) Not used HDE4423 HDE4423 11 Cord(Ground) Not used HDE4455 HDE4455 (2) CONTRAST TABLE GM-232/X1H/UC, GM-232/X1H/EW and GM-232/X1H/ES are constructed the same except for the follow- ing:
