Extracted text from pioneer gm 2037 zf service manual (Ocr-read)

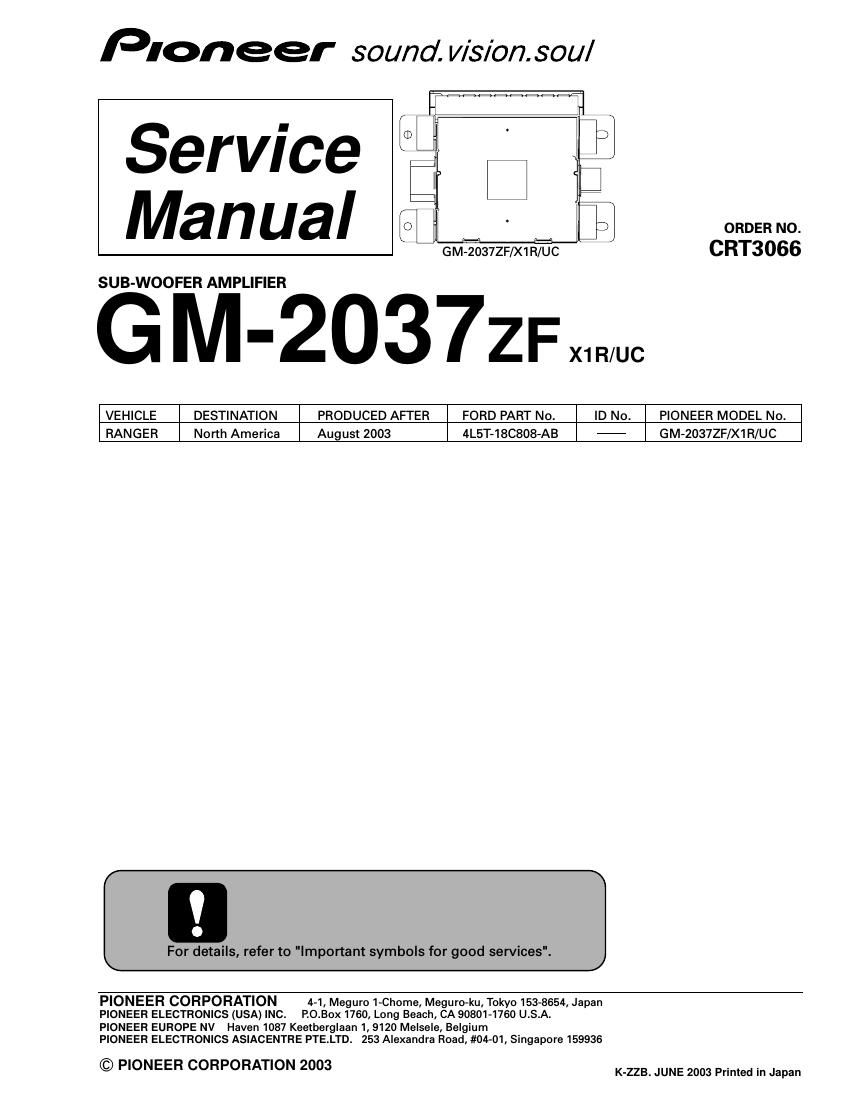

Page 1
21 234 1234 F E D CB A GM-2037ZF/X1R/UC [ Important symbols for good services ]In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely. When you find the procedures bearing any of the symbols, be sure to fulfill them: 2. Adjustments To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable. In accordance with the procedures or instructions described in this manual, adjustments should be performed. 3. Cleaning For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning, proper cleaning should be performed to restore their performances. 5. Lubricants, glues, and replacement parts Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed ones should be used. 4. Shipping mode and shipping screws To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or the shipping screws should be installed before shipping out in accordance with this manual, if necessary. 1. Product safety You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual. SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician.
Page 2
3 56 78 F E D CB A 56 78 GM-2037ZF/X1R/UC CONTENTS SAFETY INFORMATION ............................................2 1. SPECIFICATIONS .......................................................3 2. EXPLODED VIEWS AND PARTS LIST ......................4 2.1 EXTERIOR ............................................................4 3. SCHEMATIC DIAGRAM .............................................6 3.1 OVERALL CONNECTION DIAGRAM ..................6 4. PCB CONNECTION DIAGRAM..................................8 4.1 MOTHER UNIT ....................................................85. ELECTRICAL PARTS LIST ........................................10 6. ADJUSTMENT .........................................................11 7. GENERAL INFORMATION.......................................11 7.1 DIAGNOSIS .......................................................11 7.1.1 DISASSEMBLY .........................................11 7.1.2 CONNECTOR FUNCTION DESCRIPTION ......12 7.2 IC ........................................................................13 8. OPERATIONS ...........................................................13 1. SPECIFICATIONS Power source . . . . . . . . . . . . .14.4±0.2V(10.6-16.0V) Grounding . . . . . . . . . . . . . . . .Negative type Backup current . . . . . . . . . . . .0.5mA or less Dimensions . . . . . . . . . . . . . . .164mm(W)x44mm(H)x117mm(D) Weight . . . . . . . . . . . . . . . . . . .476g Rated power . . . . . . . . . . . . . .35W or less (1.5Ω, f=100Hz, THD+N=2%, 80kHz LPF) Residual noise . . . . . . . . . . . . .0.5mV or more (Rg=1k ohm IHF-A) Output offset voltage . . . . . . .0±100mV or less (Output + - both terminal voltage)
