Pioneer gm 120 service manual

This is the 10 pages manual for pioneer gm 120 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 10
pioneer gm 120 service manual

Extracted text from pioneer gm 120 service manual (Ocr-read)

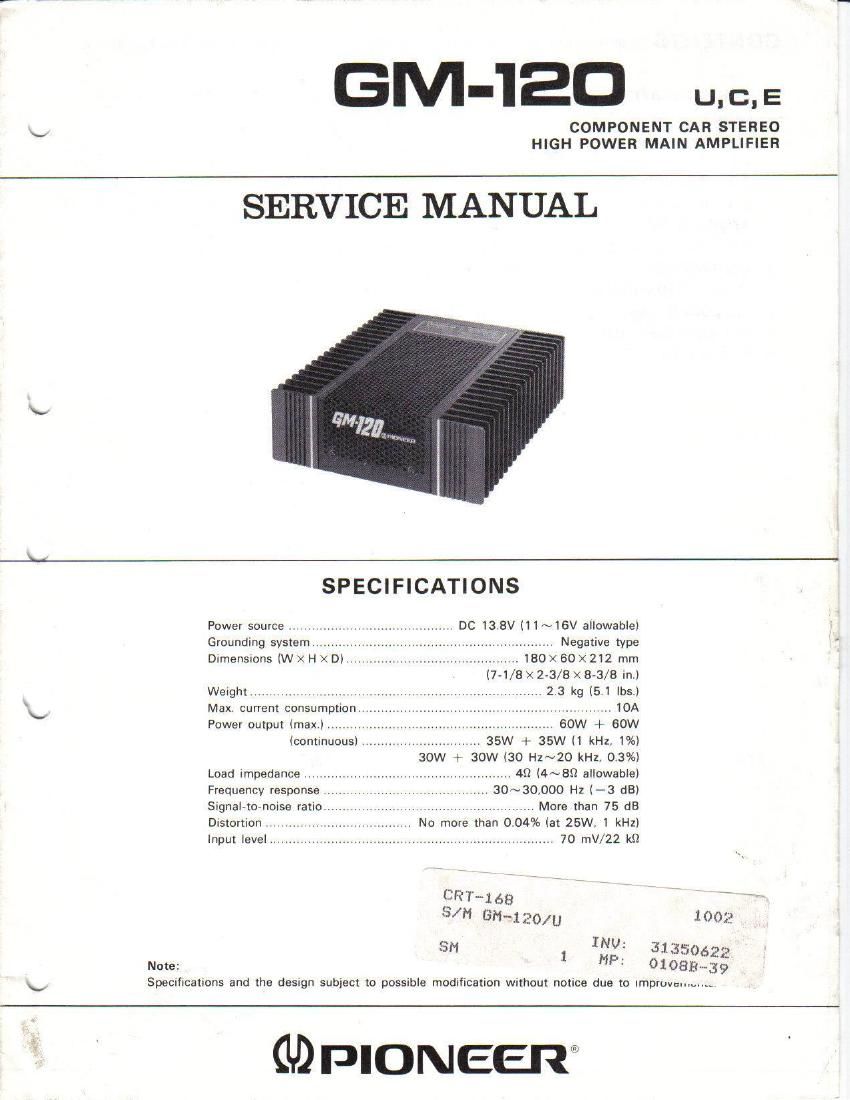

Page 1

GMIIED u,c,E

COMPONENT CAR STEREO
HIGH POWER MAIN AMPLIFIER

SERVICE MANUAL

SPECIFICATIONS

Power source ....................................... DC 13,8V (11~16V allowable)
Grounding system. Negative type
Dimensions (WXHXD) ............. .. .IBOXGOXZIZ mm

(7-1/8 x 243/8 X 8-3/8 in.)

Weight .................................. 2.3 kg (5.1 lbs.)
Max. current consumption. .............. 10A
Power output (max) ,,,,,,,,,,,,,,,, 60W + 60W
(continuous) .............................. 35W + 35W (1 kHz, 1%)

30W + 30W (30 Hz~20 kHz, 03%)

Load impedance .............................. 452 (4~89 allowable)

30~30,000 Hz (-3 dB)
.................... More than 75 dB

Frequency response
Signal-to-noise ratio .....................

Distortion ....... No more than 0.04% (at 25w, 1 kHz)
Input level ,,,,,,, 70 mV/22 k9
CRT-168 7 T "
S/M I3M«120/U 100}?
SM 1 13'; 31350622
Note: P- OIOBHw39

Specifications and the design subject to possible modification without notice due to Improve-w."
