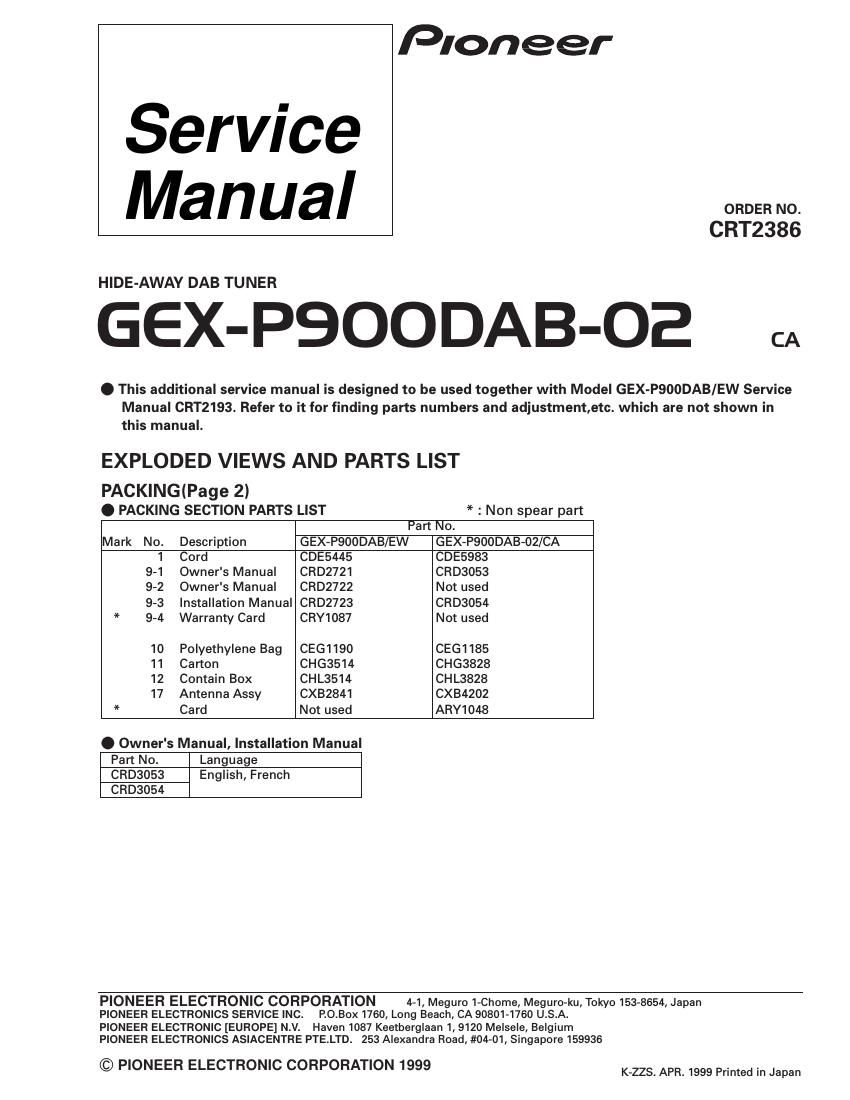

Page 1
GEX-P900DAB-02 SCHEMATIC DIAGRAM MAIN UNIT(1/3)(Page 6) SYSTEM CONTROL EXTERIOR(Page 4) -EXTERIOR SECTION PARTS LIST Part No. Mark No. Description GEX-P900DAB/EW GEX-P900DAB-02/CA 4 Plate CAH1654 CAH1688 5 Cord CDE5445 CDE5983 11 Case CNB2268 CNB2503 20 Main Unit CWM5731 CWM6644 38 Connector(CN141) Not used CKS3778
Page 2
3 GEX-P900DAB-02 ELECTRICAL PARTS LIST(Page 28) Main Unit Part No. Circuit Symbol and No. GEX-P900DAB/EW GEX-P900DAB-02/CA IC 601 PD5440A PD5440B R 624 Not used RS1/16S473J R 625 RS1/16S0R0J Not used MAIN UNIT(3/3)(Page 18) 43 216 5
