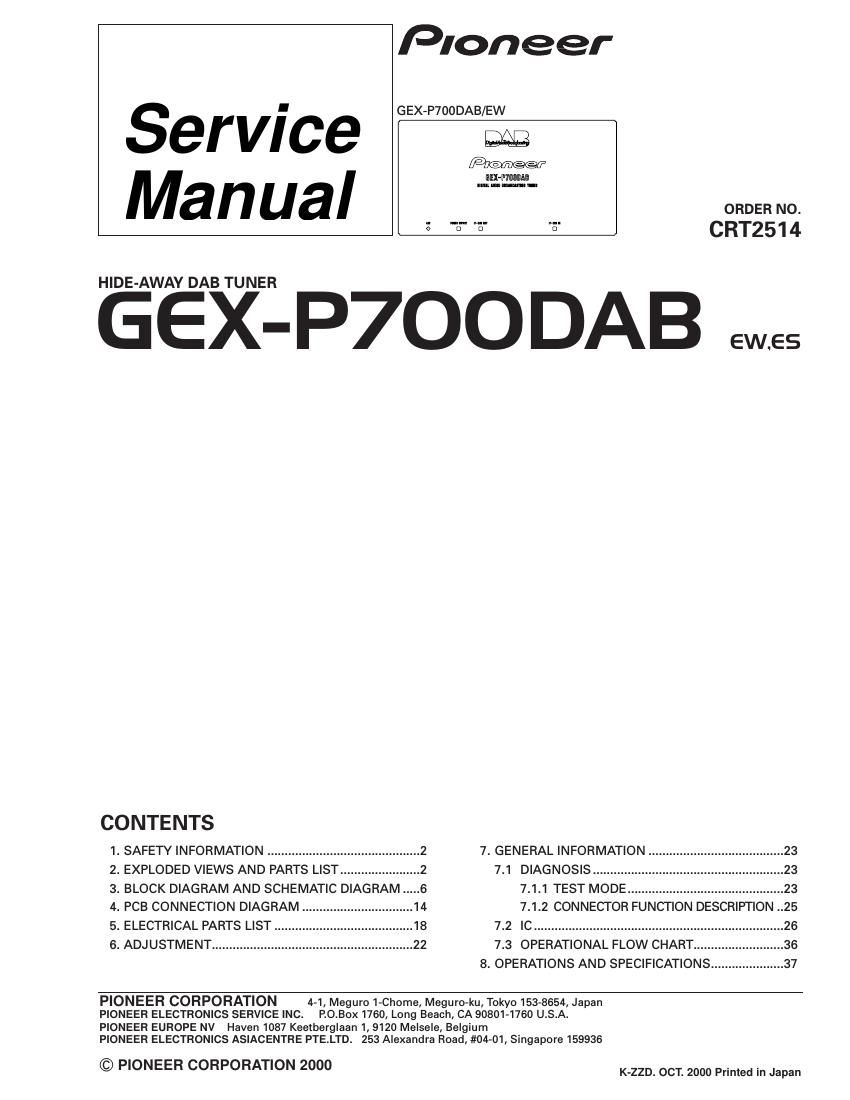

Pioneer

GEX-P700DAB/EW

Service we

lateneer

IBEX-WINE

Manual _ W. _

CRT2514

HIDE-AWAY DAB TUNER

GEX- 700 DAB ewes

CONTENTS

1. SAFETY INFORMATION ............................................ 2 7. GENERAL INFORMATION ....................................... 23
2. EXPLODED VIEWS AND PARTS LIST ....................... 2 7.1 DIAGNOSIS ........ ....23
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ..... 6 7.1.1 TEST MODE. ....23
4. PCB CONNECTION DIAGRAM ................................ 14 7.1.2 CONNECTOR FUNCTION DESCRIPTION ..25
5. ELECTRICAL PARTS LIST. ...18 7.2 [C .............................................
6. ADJUSTMENT .................. ...22 7.3 OPERATIONAL FLOW CHART..

8. OPERATIONS AND SPECIFICATIONS ..................... 37

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro»ku, Tokyo 1538654, Japan
PIONEER ELECTRONICS SERVICE INC. R0.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #0401, Singapore 159936

© PIONEER CORPORATION 2000 K-ZZD. OCT. 2000 Printed in Japan

Page 2

GEX-P7OODAB

1. SAFETY INFORMATION

This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so
and refer the repair to a qualified service technician.

2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING
