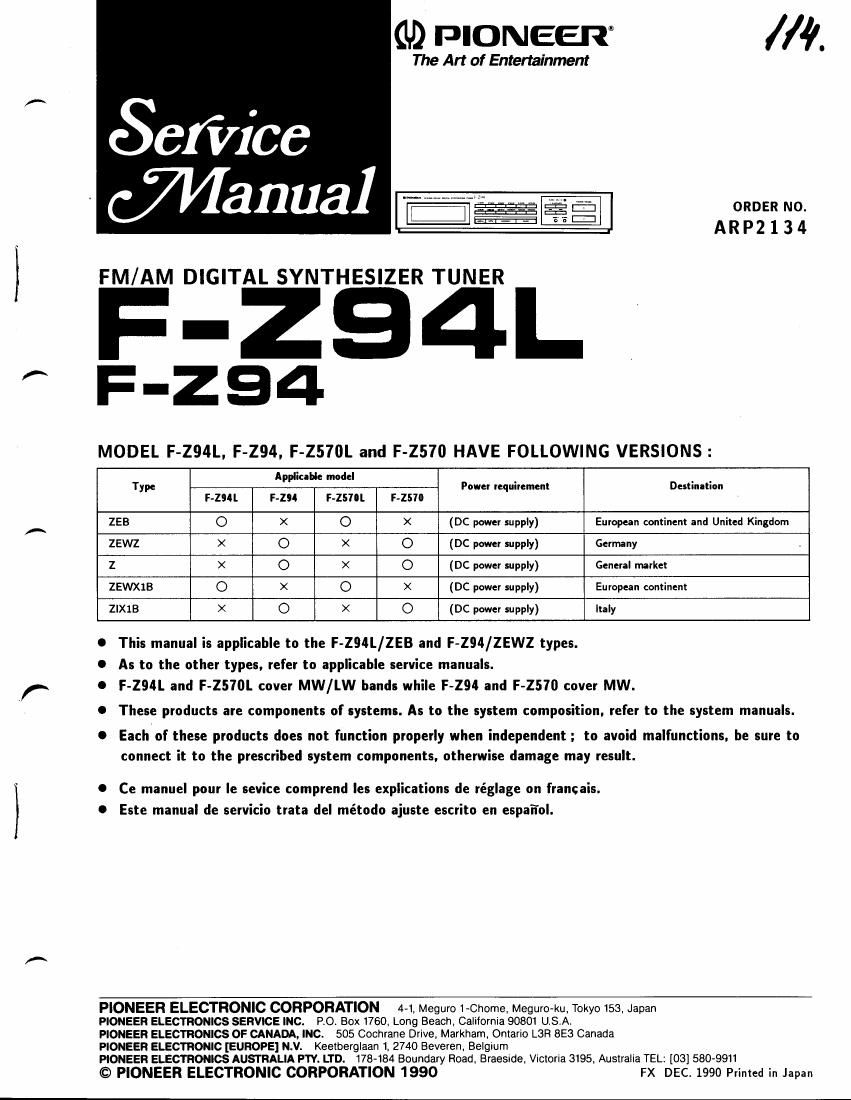

Pioneer fz 94 l service manual

Page 1

CONTENTS I.SPECtFtCATtONS .......................................2 2. EXPLODEO VIEWS. PACKING AND PARTS L|ST ... .. ... .. ... .. ... .. .. 3 3. ScHEMATtC DTAGRAM . ... .. .. . .. .... . .. . .. ... .. .... . .. 6 4. P.C, BOARD CONNECTION DIAGRAMS ......... 10 5.P.C.B'SPARTSLt5T ..'.'..'.'....'.'.........'......13 1. SPEC|F|CATTONS FM Tuner Section Frequency range....... 87.5 MH2 to lOS MHz Usabf e Sensitivity.-................ Mono: 1 2.8 d9f , IHF 11.2 pV 17 5 A) Sensitivity {DlN)........ Mono S/N 26 dB: 1 avl75 0 . Stereo S/N 46 dB: 35 pVl75 0 Signal-to-Noise Ratio (lHF, 85 dBt Input) Mono: 77 dB Signal-to-Noise Ratio {DlN)-..........-........................ Mono: 66 dB Stereo: 60 dB Distortion................ ..Stereo:0.5%{lkHz) Antenna Input.......... ........ 75 O unbalanced MW {AM} Tuner Section Frequency Range ...... 531 kHz to 1,602 kHz Sensitivity (lHF, Loop antenna) ..... 350 FVlm Antenna...,..,.,..,.,,.,. ,,.,.,.,.,., Loop Antenna LW Tuner Section Frequency range....... .-. 153 kHz ro 281 kHz Sensitivity (lHF, Loop antenna) ... 1500 pvlm An1enna..,.,.,,.,.,.,,.,. ,.,.,.,.,,. Loop Antenna Misc€llaneous Dimensions.............- 360 (W) x 68 (H) x 316 (D) mm Weight (without package) ..-.................... ...................... 2.2 kg Fumished Parts FM Antenna ...........- .....................-....... 1 AM Loop Antenna.... ............................. 1 . Specifications and design subject to possible modification without notice due to imprcvement. 6.ADJUSTMENTS'.......'....'.'....'.'.'.................15 6. REGLAGE
