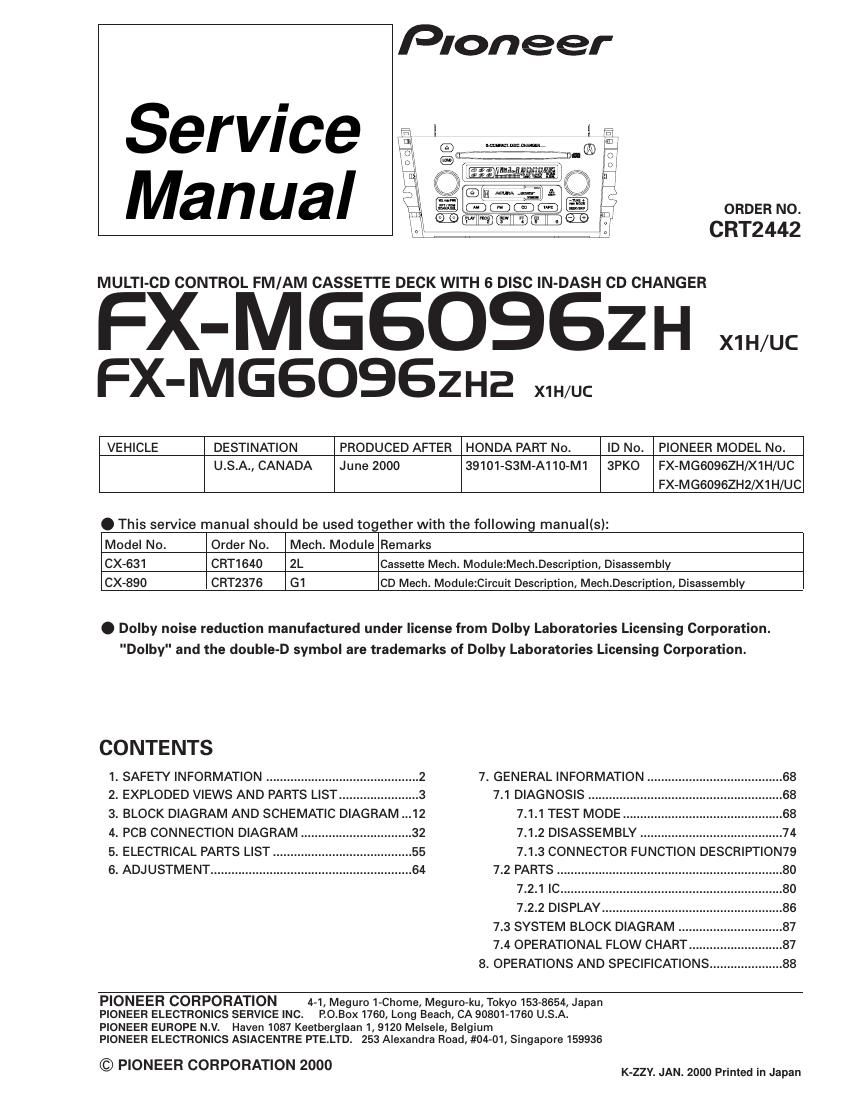

Page 1

Pioneer

Service
Manual

MULTI-CD CONTROL FM/AM CASSETTE DECK WITH 6 DISC IN-DASH CD CHANGER

FX- M G 60962 H X1H/UC
FX-MGSOSSZHE W

VEHICLE DESTINATION PRODUCED AFTER HONDA PART No. ID No. PIONEER MODEL No.
U.S.A., CANADA June 2000 39101-S3M-A110-M1 3PKO FX-MGBOQSZH/X1H/UC
FX-MGSOQBZHZ/X1H/UC

ORDER NO.

CRT2442

. This service manual should be used together with the following manual(s):

Model No. Order No. Mech. Module Remarks
CX-63'I CRT1640 2L Cassette Mech. Module:Mech.Description, Disassembly
CX-890 CRT2376 G1 CD Mech. Module:Circuit Description, Mech.Description, Disassembly

. Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation.
"Dolby" and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

CONTENTS
1. SAFETY INFORMATION ................... .2 7. GENERAL INFORMATION ""68
2. EXPLODED VIEWS AND PARTS LIST.. .3 7.1 DIAGNOSIS ................ ....68
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ...12 7.1.1 TEST MODE ...... ...68
4. PCB CONNECTION DIAGRAM 7.1.2 DISASSEMBLY. .74

5. ELECTRICAL PARTS LIST ........ 7.1.3 CONNECTOR FUNCTION DESCRIPTION79
6. ADJUSTMENT .......................................................... 64 7.2 PARTS ..
7.2.1 IC.

7.2.2 DISPLAY..

7.3 SYSTEM BLOCK DIAGRAM

7.4 OPERATIONAL FLOW CHART ..

8. OPERATIONS AND SPECIFICATIONS ..................... 88

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro»ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER EUROPE N.V. Haven 1087 Keetberglaan 1,9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #0401, Singapore 159936

© PIONEER CORPORATION 2000 K-ZZY. JAN. 2000 Printed in Japan

Page 2

FX-MGSOSSZHFX-MGSOSSZHB

. CD Player Service Precautions

1. For pickup unit(CXX13lll handling, please refer
to"Disassembly"(see page 74).
During replacement, handling precautions shall be
taken to prevent an electrostatic dischargelprotection
by a short pin).

2. During disassembly, be sure to turn the power off
since an internal IC might be destroyed when a con-
nector is plugged or unplugged.

3. Please checking the grating after changing the ser-
vice pickup unit(see page 66).

1. SAFETY INFORMATION

. When the Repair is Complete

When the repair is complete, make the CD mechanism

ready for transportation

implementing the following procedures:

1. Press the changer side 1 and 4 simultaneously to turn
the ACC on.

2. As the ACC is turned on, the disc indicator blinks in
red.

3. When the blinking is stopped, the mechanism is
ready for the transportation.

4. Attach the Transportation Bracket (CNC7878). Now
you can transport it.(See the figure below) (The
Bracket used on the FX-MGBOSSZH is recommended
for the transportation purpose.)

Transportation Bracket
(CNC7878)

Case
(CNBZ45I)

This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.

Qualified technicians have the necessary test equipment

complex products such as those covered by this manual.

and tools, and have been trained to properly and safely repair

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so and

refer the repair to a qualified service technician.
