Pioneer fxm 2337 service manual

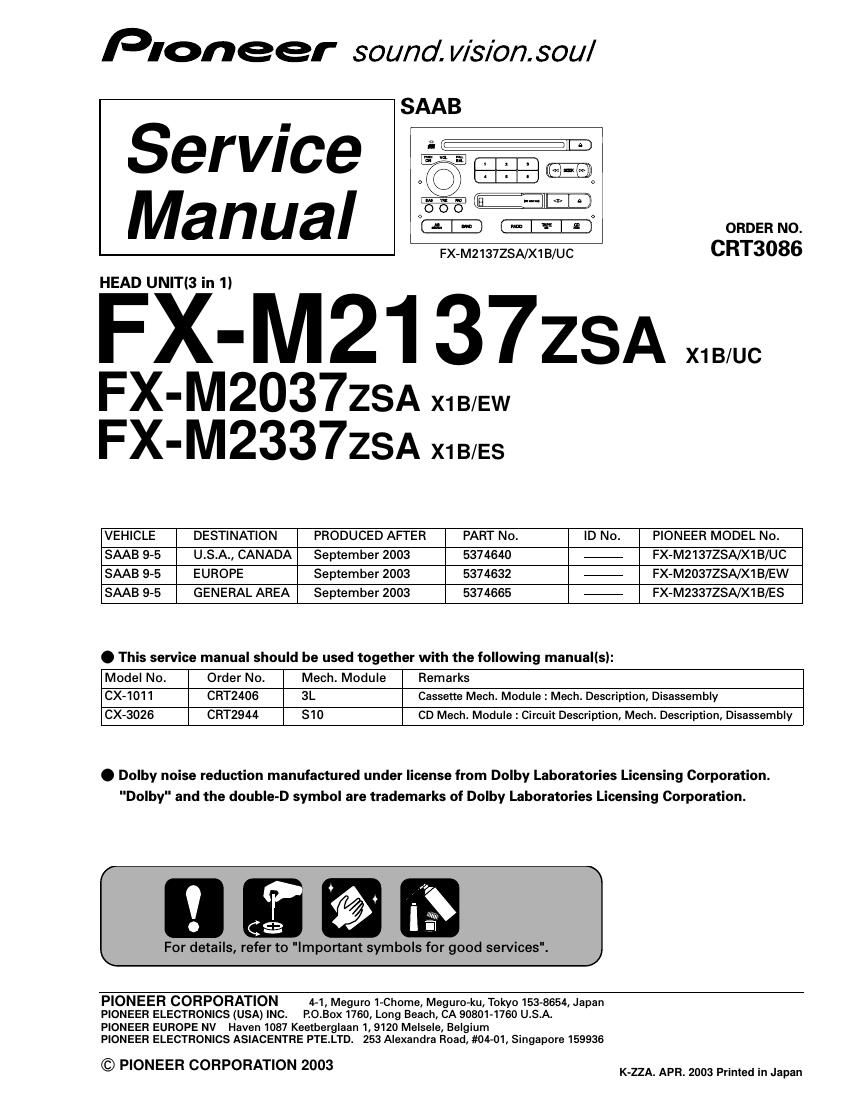

Page 1

Pioneer sound. Visionsou/

SAAB
.
E :-
Serwce fi I; ; I In;
Man ual 0- _0 ORDER NO.
FX-MZI37ZSA/X1B/UC CRT3086

HEAD UNITI3 in 1)

FX-M21 3723A

FX'M2037ZSA X1B/EW
FX'M2337ZSA X1B/ES

VEHICLE DESTINATION PRODUCED AFTER PART No. ID No. PIONEER MODEL N0.

SAAB 9»5 U.S.A., CANADA September 2003 5374640 - FX-M2137ZSA/X1B/UC
SAAB 9-5 EUROPE September 2003 5374632 7 FX»M2037ZSA/X1B/EW
SAAB 9-5 GENERAL AREA September 2003 5374665 - FX-M2337ZSA/X1B/ES

. This service manual should be used together with the following manualIsI:

Model No. Order No. Mech. Module Remarks
CX-IO1'I CRT2406 3L Cassette Mech. Module: Mech. Description, Disassembly
CX-3026 CRT2944 510 CD Mech. Module : Circuit Description, Mech. Description, Disassembly

. Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation.

"Dolby" and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

For details, refer to "Important symbols for good services".

PIONEER CORPORATION
PIONEER ELECTRONICS (USA) INC.
PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936

© PIONEER CORPORATION 2003

4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
P.O.Box 1760, Long Beach, CA 908014760 U.S.A.

K-ZZA. APR. 2003 Printed in Japan

Page 2

I
N
I
0)
I
.3;
I

[ Important symbols for good services ]
in this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely.
When you find the procedures bearing any ofthe symbols, be sure to fulfill them:

1. Product safety

You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and
should keep the safety during servicing by following the safety instructions described in this manual.

2. Adjustments

To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable.
In accordance with the procedures or instructions described in this manual, adjustments should be performed.

3. Cleaning

. For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other pans requiring cleaning,
% proper cleaning should be performed to restore their performances.

J

4. Shipping mode and shipping screws

To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or
the shipping screws should be installed before shipping out in accordance with this manual, if necessary.

5 Lubricants, glues, and replacement parts
Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying
glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the
W prescribed grease or glue to proper portions by the appropriate amount.For replacement parts ortools, the prescribed
ones should be used.

. CD Player Service Precautions n

1. Before disassembling the unit, be sure to turn off the 3- After replacing the PiCkUP unit, be sure to CheCk the
power. Unplugging and plugging the connectors dur- grating.(See p.75.)
ing power-on mode may damage the ICs inside the
unit.

2. To protect the pickup unit from electrostatic dis-
charge during serviving, take an appropriate treat-
mentlshorting-solder) by referring to "the DISAS-
SEMBL " on page 79.

E FX 1 - 2 - 3 - 4 I
