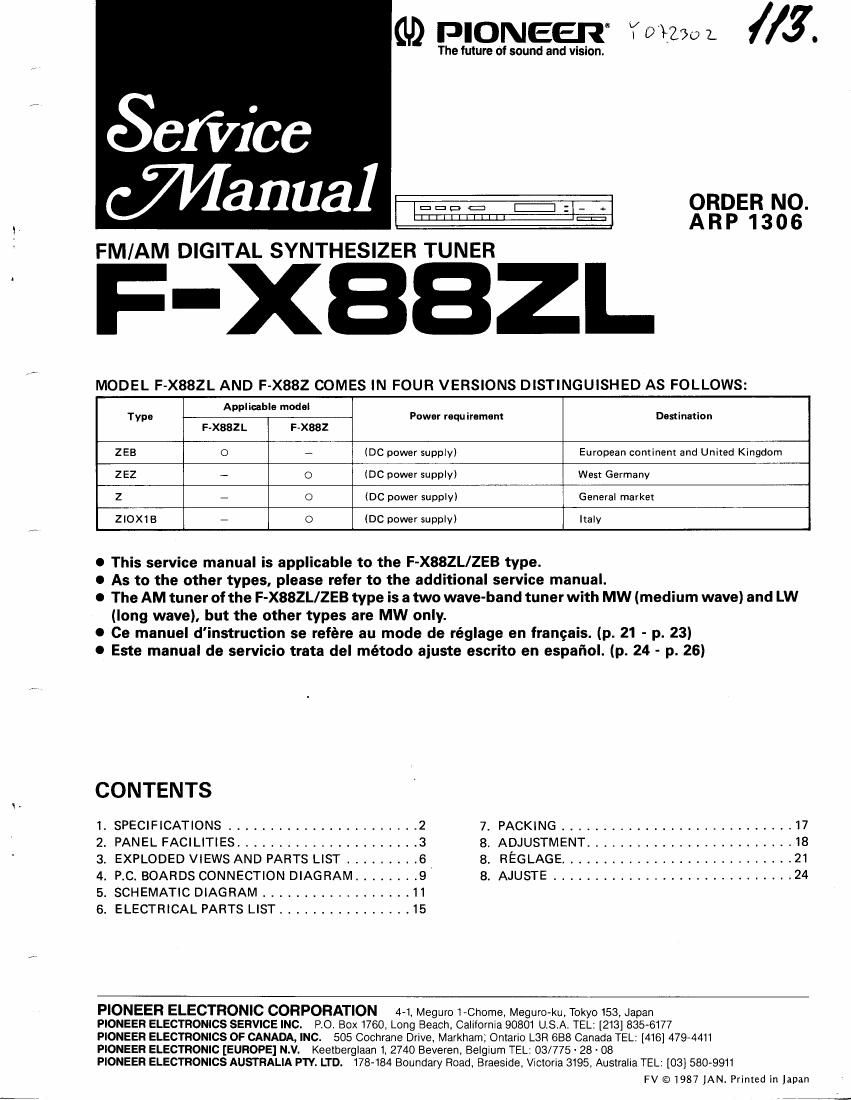

Pioneer fx 88 zl service manual
This is the 26 pages manual for pioneer fx 88 zl service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer fx 88 zl service manual (Ocr-read)
Page 1
1. SPECIFICATIONS FM Tuner Section Frequency range. . . . . .87.5 MHz to 108 MHz Usable Sensitivity ......12.7 dBf, IHF (1.2!V/75 ohms) 50 dB Ouieting Sensitivity. . . . . Mono: 18 dBf l2.2ttY /75 ohmsl Stereo: 38.3 dBf l22.6ttv 175 ohmsl Sensitivity (DlN).... . . Mono 0.9pV/75 ohms Stereo:3t.5gvl75 ohms :':1': :: ):':: ::T I ":'::* ':1:' 1 Mono, i7 dB Stereo: 73 dB Signal-to-Noise Ratio (DlN). . . . .Mono:62 dB Stereo:60 d8 Stereo:0.5% (1 kHz) . . . 60 dB (400 kHz) .....40d8(lkHz) dB (30 Hz to 15 kHz) ...38dB ..110d8 . . 300 ohm balanced 75 ohm unbalanced . 650 mV Distortion . . . . . . . MW (AM) Tuner Section Frequency range When 10 kHz stsp. , . , .530 kHz to 1,600 kHz When 9 kHz step . . . . . .531 kHz to 1,602 kHz S€nsitivity (lHF, Loopantenna). . .... . .. . . . 350!V/m Selectivity .....20d8 Signal-to-NoiseRatio.... ..........45dB lmage Interference Ratio ,., .....,..40d8 lFlnterferenceRatio.... ..........50d8 Antenna. . . . . . . . Loop Antenna OutputLevel{AM30%MOD) .......150mV LW Tuner Section (For LW-equ ipped models only) Frequencyrange.... ...153kH2to281 kHz Sensitivity (lHF, Loop antenna) . . . . .1500 pVlm Alternate Channel Selectivity. . Stereo Separation Frequency Response . . .... . lmage Interference Ratio .... lF Interlerence Ratio. . . . . . . Antenna Input Output Level (FM 100% MOD) Selectivity ....20dB Signal-to-NoiseRatio.... ..........45d8 lmage Interference Ratio ... ........30d8 lF Interference Ratio . . . . ..........50dB Antenna . , . , . . . Looo Antenna Output Level (AM 30% MOD) 150 mV Miscellaneous Dimensions 360(W) x 56(Hl x 215(D) mm 14-3116(W) x2-3l16(H) x 8-1l2(D) in Furnished Parts FM T-type antenna AM Loop Antenna 2. PANEL FACILITIES TUNER input/output cord Connect lo the TUNER iack of the deck amplitier. FM/AM antenna terminals Antennas must be connocted to those terminalsr otherwise you will not be able to receive stations. See page 5 for details on antenna connections.
Page 2
FM MONO switch / ind icato r Normally this is set to the off position (the FIV MONO indicator go€s off). When noise spoils the reception of an FM program, pr6Es the switch to the on position (the Fl\4 MoNo indicalor will now light). The program ofan FM stereo broadcast will be heard in mono. The setting of tho FM MONO swrtch (on or off) is momorized along with the station's frequgncy in the STATION CALL swrtch9s.When using the preset tuning feature, reception will be in the mode selected wh6n lhe station was memorized. This switch will nol function tor AM (MW or LW) reception. FREOUENCY display Pormits roading thg received frequency at a glance trom lhe display6d figris. The FM band is indicated by MHz, and the AM (MW or LW) band by kHz. TUNING switch This is used to locate the stations. Push either side of this switch; the left side "-" to go to a lower, and the right side " + " to go to a higher lrequency. STEREO indicator This lights wh6n a stereo program has been picked up during an FM broadcast. SELECT (1 -1 2 11 3-241 switch/indicator This switch is used to s6l€ct th6 STATION CALL switches to Mode 1 (1-12) or Mode 2 (13-24). Mode 2 (13-24) is ob- tained when tho switch is oressed 8nd select indicator i8 lit. NOTE: Changing the position ol this switch has no ellect on rcceivet peiomance itself. TUNED indicator This lights to indicate wh€n the finost tuning of a station has b6en achieved. STATION CALL switches These are used to recall preset broadcasting stations and to preset the statton. BAND SELECTOR switch IFor modol F-X882] Each time this switch is pressed, FM or AM reception is selected alternately, FM and MHz lightr FM reception AM and kHz light: AM reception lFor model F-X88ZLl Each time this switch is pressed, FM, MW or LW recep- tion is selected slternatelv. FM and MHz light: FM reception AM and kHz light: MW or LW reception MEMORY switch This switch is used to memorize stations. When the switch is pressed, the frequency indicator will flash. To memorize the frequency of any station, press the station call switch while rhe memory indicalor is lit. 3
