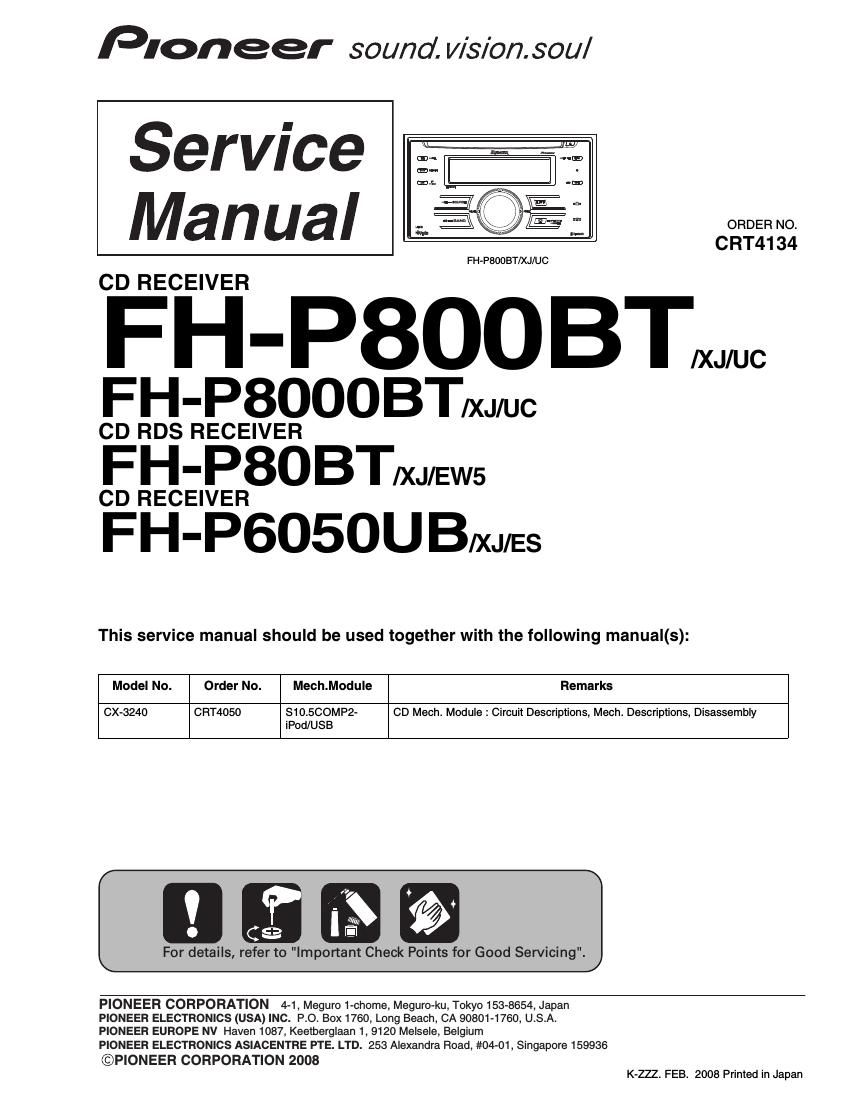

Pioneer sound. ViS/on.sou/
Service
Manual
CD RECEIVER
FH-PSOOBTW
FH'PsoOOBT/XJ/UC
CD RDS RECEIVER
FH-P80 BT/XJ/EW5
CD RECEIVER
FH'P6050UB/XJ/ES
FH-F'SOOBT/XJ/UC
This service manual should be used together with the following manual(s):
ORDER NO.
CRT4134
Model No. Order No. Mech.Module Remarks
CX-3240 CRT4OSO S10.500MP2- CD Mech. Module : Circuit Descriptions, Mech. Descriptions, Disassembly
iPod/USB
@+
For details, refer to "Important Check Points for Good Servicing".
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. PO. BOX1760, Long Beach, CA 90801-1760, USA.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
@PIONEER CORPORATION 2008
K-ZZZ. FEB. 2008 Printed in Japan
Page 2
SAFETY INFORMATION
CAUTION
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so
and refer the repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of
California to cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 - Proposition 65
Where in a manufacturers service documentation, for example in circuit diagrams or lists
of components, a symbol is used to indicate that a specific component shall be replaced only
by the component specified in that documentation for safety reasons, the following symbol shall
be used:
&
. Safety Precautions for those who Service this Unit.
. When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable
results.
Caution:
1. During repair or tests, minimum distance of 13 cm from the focus lens must be kept.
2. During repair or tests, do not View laser beam for 10 seconds or longer.
CAUTION:
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHERTHAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
CAUTION
This product contains a laser diode of higher class
than 1. To ensure continued safety, do not
remove any covers or attempt to gain access to
the inside of the product.
Refer all servicing to qualified personnel.
CLASS 1
LASER PRODUCT
FH-PBOOBT/XJ/UC
