Pioneer fhp 4200 mp service manual

This is the 94 pages manual for pioneer fhp 4200 mp service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 94
pioneer fhp 4200 mp service manual

Extracted text from pioneer fhp 4200 mp service manual (Ocr-read)

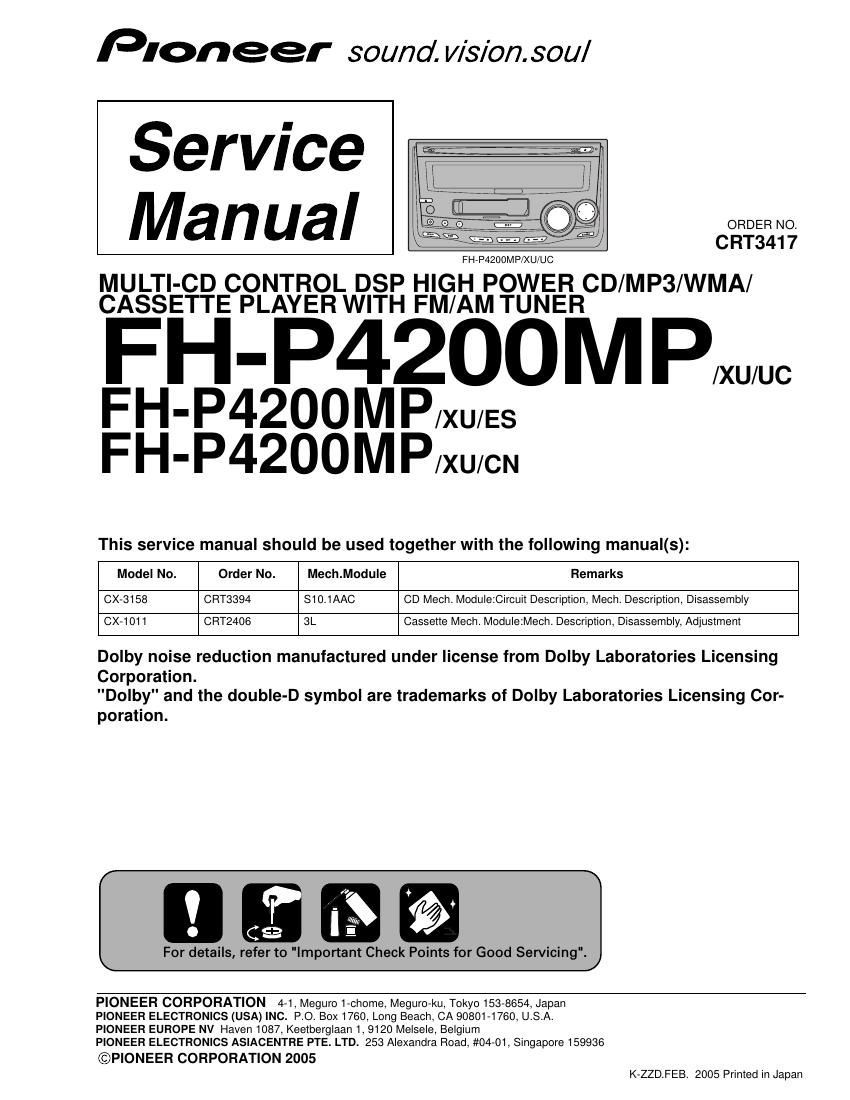

Page 1

Pioneer sound. vision. sou/

Service
Manual f

MU-LTI CD CONTROL DSP HIGH POWER CD/MP3/WMA/
CASSETTE PLAYER WITH FM/AM TUNER

FH- P4200M P

FH-P4200MP/XU/Es
FH'P4200M P/XU/CN

This service manual should be used together with the following manual(s):

ORDER NO.

CRT3417

Model No. Order No. Mech.Module Remarks
CX-3158 CRT3394 S10.1AAC CD Mech. Module:Circuit Description, Mech. Description, Disassembly
CX-1011 CRT2406 3L Cassette Mech. Module2Mech. Description, Disassembly, Adjustment

Dolby noise reduction manufactured under license from Dolby Laboratories Licensing

Corporation.
"Dolby" and the double-D symbol are trademarks of Dolby Laboratories Licensing Cor-

poration.

xv Q
n _ .
E

For details, refer to Important Check Points for Good Servicing".

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. BOX 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetbergiaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

©P|ONEER CORPORATION 2005
K-ZZD.FEB. 2005 Printed in Japan

Page 2

SAFETY INFORMATION

CAUTION

This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely
repair complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the
warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk
trying to do so and refer the repair to a qualified service technician.

WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the

state of California to cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 - Proposition 65

CAUTION
Danger of explosion if battery is incorrectly replaced.
Replaced only with the same or equivalent type recommended by the manufacture.
Discord used batteries according to the manufactures instructions.

. Service Precaution n
1. You should conform to the regulations governing the 3. To protect the pickup unit from electrostatic discharge
product (safety, radio and noise, and other regulations), during servicing, take an appropriate treatment
and should keep the safety during servicing by following (shorting-solder) by referring to "the DISASSEMBLY".
the safety instructions described in this manual. 4. After replacing the pickup unit, be sure to check the
2. Before disassembling the unit, be sure to turn off grating.
the power. Unplugging and plugging the connectors
during power-on mode may damage the le inside

the unit.
COMPACT IMPACT
.. DeSignedrnr
W'ndo s
DIGITALAUDIO . w MlediaIIII

DIGITAL ALIDIIJ TEXT

2 FH-P4200MP/XU/UC
