Pioneer fhp 4100 r service manual

This is the 15 pages manual for pioneer fhp 4100 r service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 15

Extracted text from pioneer fhp 4100 r service manual (Ocr-read)

Page 1

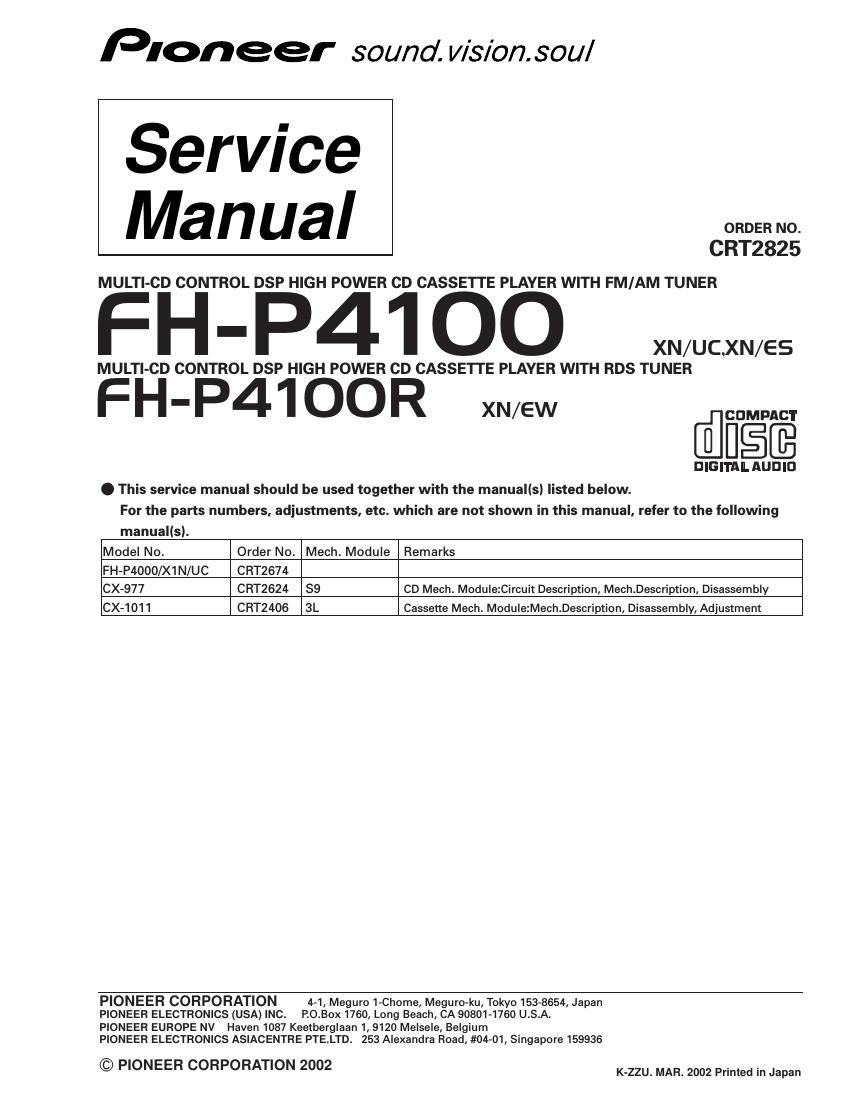

Pioneer sound. V/LS/bﬂ.$0u/

Service
Manual

CRT2825

MULTI-CD CONTROL DSP HIGH POWER CD CASSETTE PLAYER WITH FM/AM TUNER

FH-P41OO

MULTI-CD CONTROL DSP HIGH POWER CD CASSETTE PLAYER WITH RDS TUNER

FH-P41OOR MW
[Ease

DIGITAL AUDID

. This service manual should be used together with the manual(s) listed below.
For the parts numbers, adjustments, etc. which are not shown in this manual, refer to the following

manual(s).
Model No. Order No. Mech. Module Remarks
FH-P4000/X1N/UC CRT2674
CX-977 CRT2624 39 CD Mech. Module:Circuit Description, MechDescription, Disassembly
CX-1011 CRT2406 3L Cassette Mech. Module:Mech.Descripti0n, Disassembly, Adjustment

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro»ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER EUROPE NV Haven 1087 Keetberglaan 1,9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04»O1, Singapore 159936
