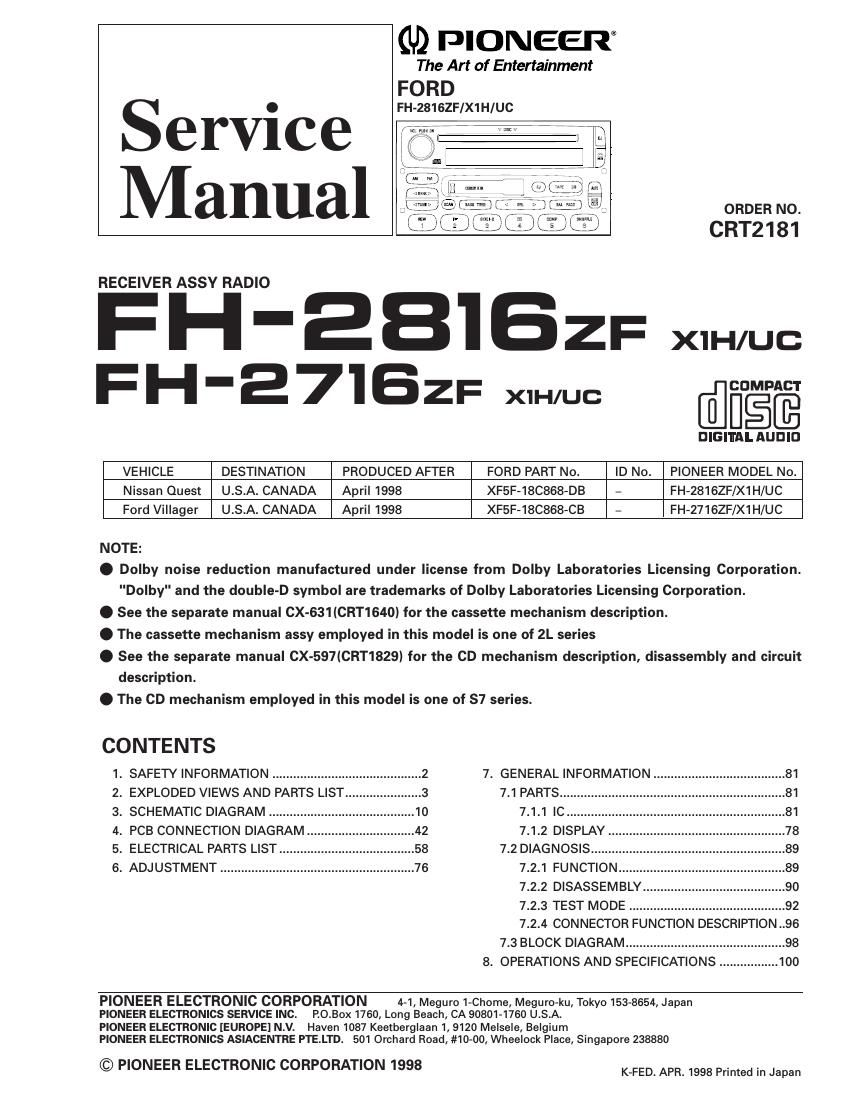

Page 1

(U) PI ONEER
The Art of Entertainment

FORD

FH-28162F/X1H/UC

Service
Manual

RECEIVER ASSY RADIO

H -28162F XIH/uc:

PH '2 7'IBZF XIH/uc [WEE

ORDER NO.

CRT2181

DIGITAL AUDIO
VEHICLE DESTINATION PRODUCED AFTER FORD PART NO. ID No. PIONEER MODEL NO.
Nissan Quest U.S.A. CANADA April 1998 XF5F-18C868-DB - FH-2816ZF/X1H/UC
Ford Villager U.S.A. CANADA April 1998 XF5F-18C868-CB - FH-271GZF/X1H/UC

NOTE:

. Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation.
"Dolby" and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

. See the separate manual CX-631(CRT1640) for the cassette mechanism description.

. The cassette mechanism assy employed in this model is one of 2L series

. See the separate manual CX-597(CRT1829) for the CD mechanism description, disassembly and circuit
description.

. The CD mechanism employed in this model is one of S7 series.

CONTENTS
1. SAFETY INFORMATION. ..2 7. GENERAL INFORMATION .81
2. EXPLODED VIEWS AND PARTS LIST 7.1 PARTS ............................ .81
3. SCHEMATIC DIAGRAM ............ 7.1.1 IC ......... .81
4. PCB CONNECTION DIAGRAM. .. 7.1.2 DISPLAY .78
5. ELECTRICAL PARTS LIST ....................................... 58 7.2 DIAGNOSIS ........................................................ 89
6. ADJUSTMENT ........................................................ 76 7.2.1 FUNCTION ....... .89
7.2.2 DISASSEMBLY .90
7.2.3 TEST MODE ............................................. 92
7.2.4 CONNECTOR FUNCTION DESCRIPTION..96
7.3 BLOCK DIAGRAM .............................................. 98
8. OPERATIONS AND SPECIFICATIONS ................. |00

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, MegurO-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC. ROBOX 1760, Long Beach, CA 90801-1760 U.S.A.

PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 501 Orchard Road, #1000, Wheelock Place, Singapore 238880

© PIONEER ELECTRONIC CORPORATION 1998 ED APR, 1998 Primed in Japan

Page 2

FH-EB'IBZF,27'ISZF

1. SAFETY INFORMATION
CAUTION

This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so
and refer the repair to a qualified service technician.

WARNING

Lead in solder used in this product is listed by the California Health and Welfare agency as a known reproductive
toxicant which may cause birth defects or other reproductive harm (California Health and Safety Code, Section
25249.5). When servicing or handling circuit boards and other components which contain lead in solder, avoid
unprotected skin contact with the solder. Also, when soldering do not inhale any smoke or fumes produced.
