Pioneer fh 2716 zf 04 service manual
This is the 18 pages manual for pioneer fh 2716 zf 04 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer fh 2716 zf 04 service manual (Ocr-read)

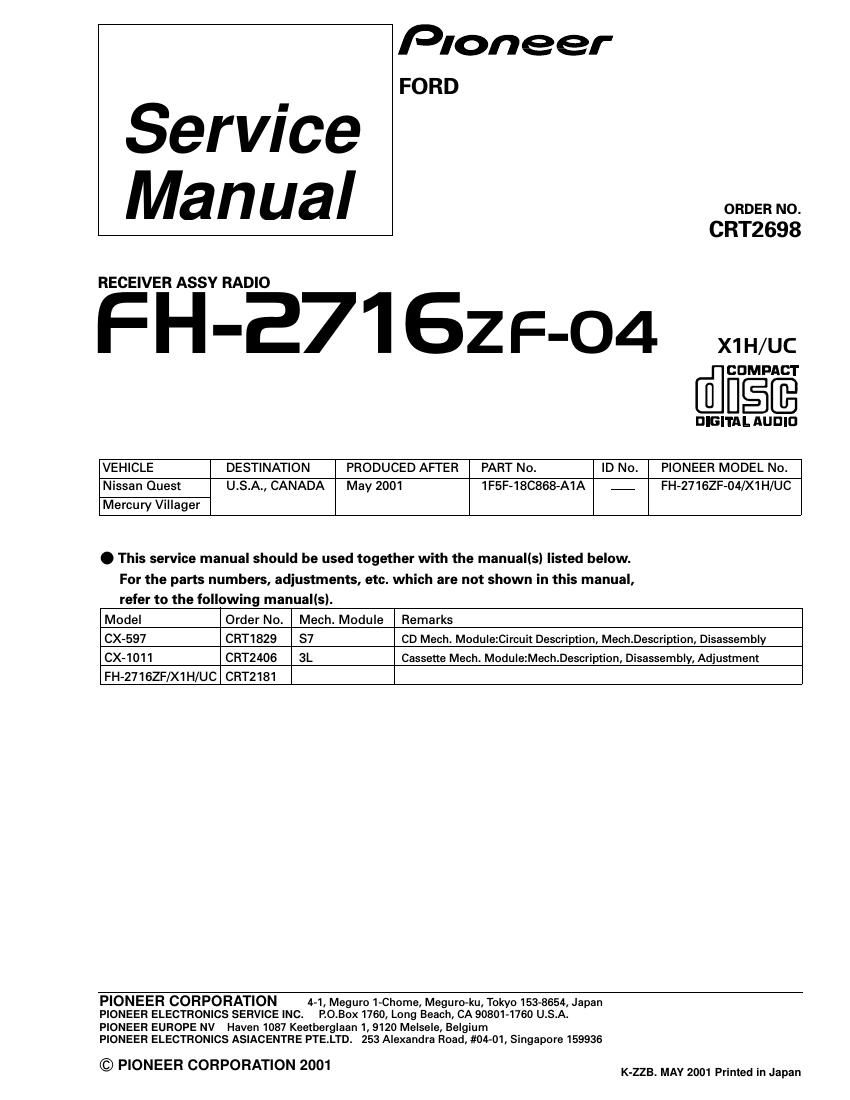

Page 1
Pioneer
FORD
Service
Manual
CRT2698
RECEIVER ASSY RADIO
FH-E7162F-04
[fligfi
DIGITAL AUDIO
VEHICLE DESTINATION PRODUCED AFTER PART No. ID No. PIONEER MODEL No.
Nissan Quest U.S.A., CANADA May 2001 1F5F-18C868»A1A 7 FH-2716ZF-04/X1H/UC
Mercury Villager
. This service manual should be used together with the manualls) listed below.
For the parts numbers, adjustments, etc. which are not shown in this manual,
refer to the following manuallsl.
Model Order No. Mech. Module Remarks
CX-597 CRTI829 57 CD Mech. Modulezcircuit Description, Mech.Description, Disassembly
CX»|0|1 CRT2406 3L Cassette Mech. ModulezMechDescription, Disassembly, Adjustment
FH-27ISZF/XlH/UC CRT2|81
PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro»ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 USA.
PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #0401, Singapore 159936
© PIONEER CORPORATION 2001 K-ZZB. MAY 2001 Printed in Japan
