Pioneer fh 2327 zf service manual

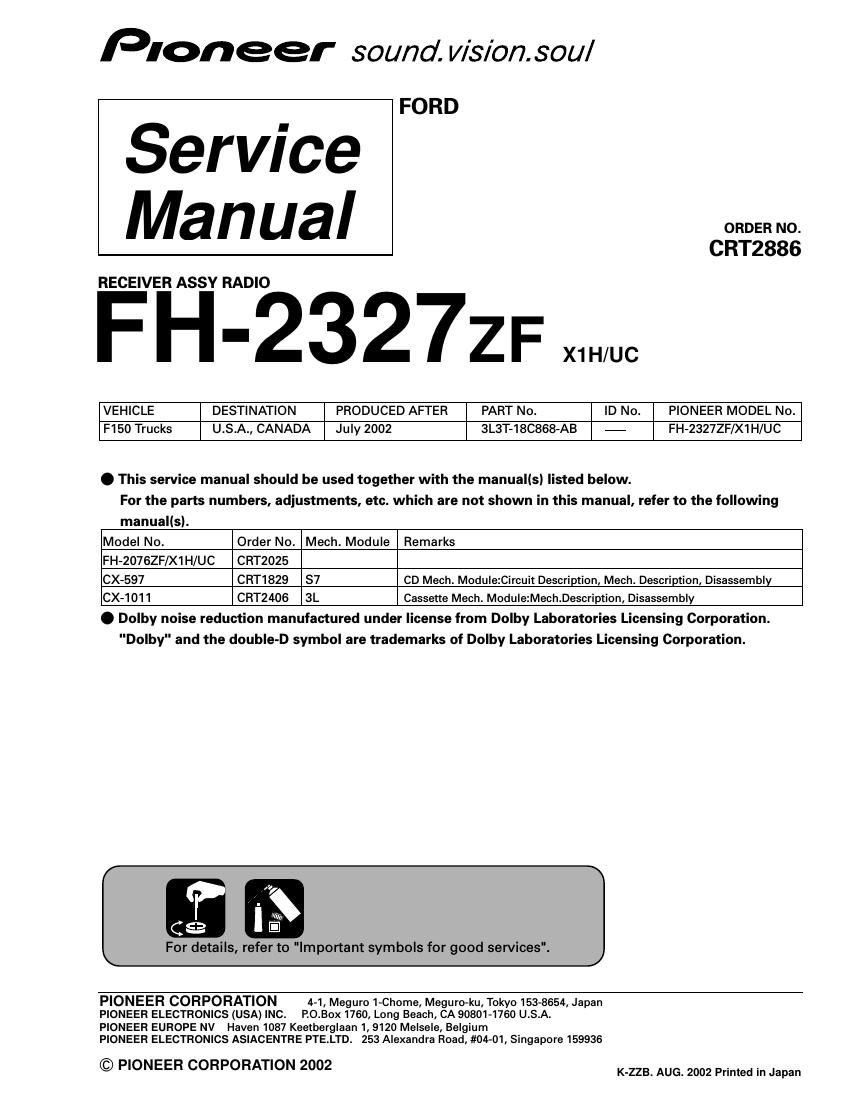

Page 1

Pioneer sound. l//'$/'0/7.SOU/

FORD

Service
Manual

CRT2886
RECEIVER ASSY RADIO
I i I X1 H/UC
VEHICLE DESTINATION PRODUCED AFTER PART NO. ID No. PIONEER MODEL N0.
F150 Trucks U.S.A., CANADA July 2002 3L3T-18C868-AB - FH»2327ZF/X1H/UC

. This service manual should be used together with the manualls) listed below.
For the parts numbers, adjustments, etc. which are not shown in this manual, refer to the following

manuallsl.
Model No. Order No. Mech. Module Remarks
FH-207GZF/X1H/UC CRT2025
CX-597 CRT1829 S7 CD Mech. Module:Circuit Description, Mech. Description, Disassembly
CX-1011 CRTZ406 3L Cassette Mech. Module:Mech.Description, Disassembly

. Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation.
"Dolby" and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

For details, refer to "Important symbols for good services".

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro»ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTFIE PTE.LTD. 253 Alexandra Road, #04»O1, Singapore 159936

© PIONEER CORPORATION 2002 K-ZZB. AUG. 2002 Printed in Japan

Page 2

[ Important symbols for good services ]
In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely.
When you find the procedures bearing any of the symbols, be sure to fulfill them:

1. Product safety

You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and
should keep the safety during servicing by following the safety instructions described in this manual.

[2. Adjustments

To keep the original performances ofthe product, optimum adjustments or specification confirmation is indispensable.
In accordance with the procedures or instructions described in this manual, adjustments should be performed.

\

3. Cleaning

. . For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning,
% proper cleaning should be performed to restore their performances.

4. Shipping mode and shipping screws

To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or
the shipping screws should be installed before shipping out in accordance with this manual, if necessary.
n.

\ J

5. Lubricants, glues, and replacement parts
Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying
glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the
fin prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed
ones should be used.

FH-2327ZF/X1 H/LlC
1 - 2 - 3 - 4
