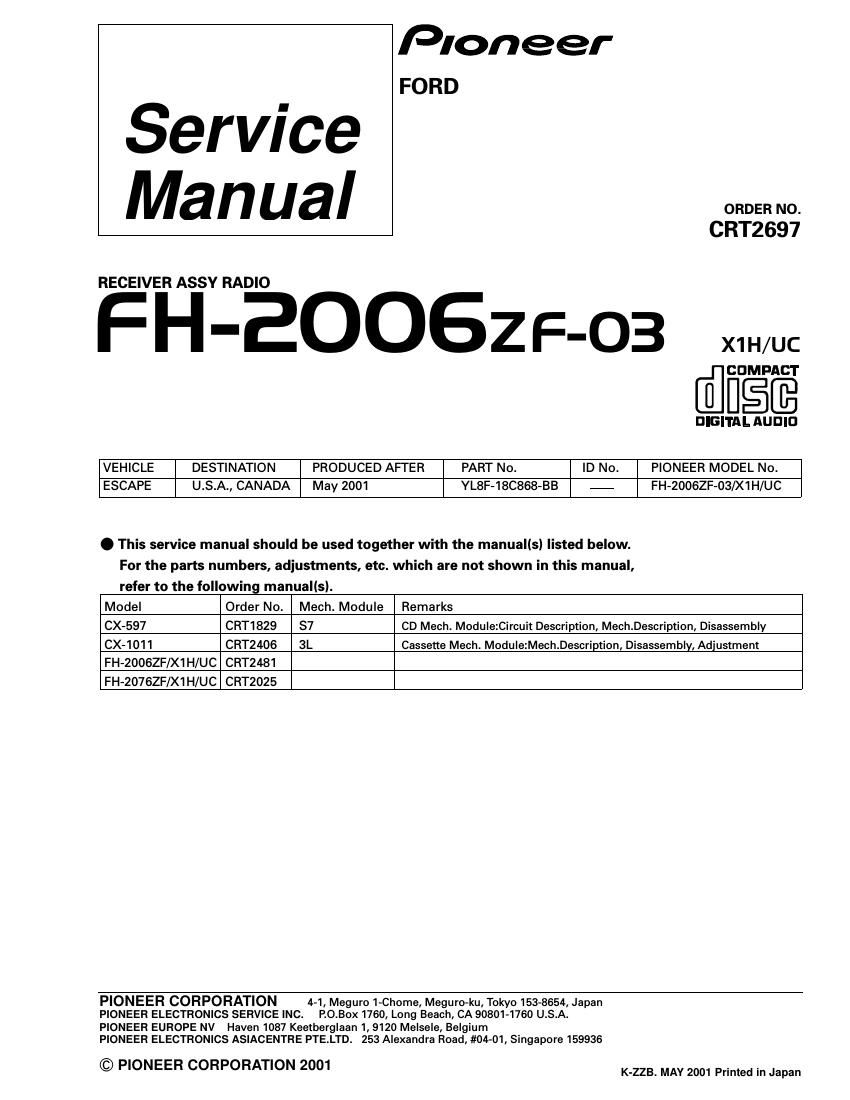

Pioneer
FORD

Service
Manual

CRT2697

RECEIVER ASSY RADIO

FH-EOOGZF-oa

[ﬂﬁgﬁ

DIGITAL AUDIO

VEHICLE DESTINATION PRODUCED AFTER PART NO. ID No. PIONEER MODEL No.
ESCAPE U.S.A., CANADA May 2001 YL8F»18C868-BB 7 FH-20062F-03/X1H/UC

. This service manual should be used together with the manual(s) listed below.
For the parts numbers, adjustments, etc. which are not shown in this manual,

refer to the following manual(s).

Model Order No. Mech. Module Remarks
CX»597 CRT1829 57 CD Mech. Modulezcircuil Description, MechDescription, Disassembly
CX-IOII CRT2406 3L Cassette Mech. ModulezMechDescription, Disassembly, Adjustment

FH-20062F/X1H/UC CRT2481
FH-207BZF/X1H/UC CRT2025

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro»ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 USA.
PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #0401, Singapore 159936
