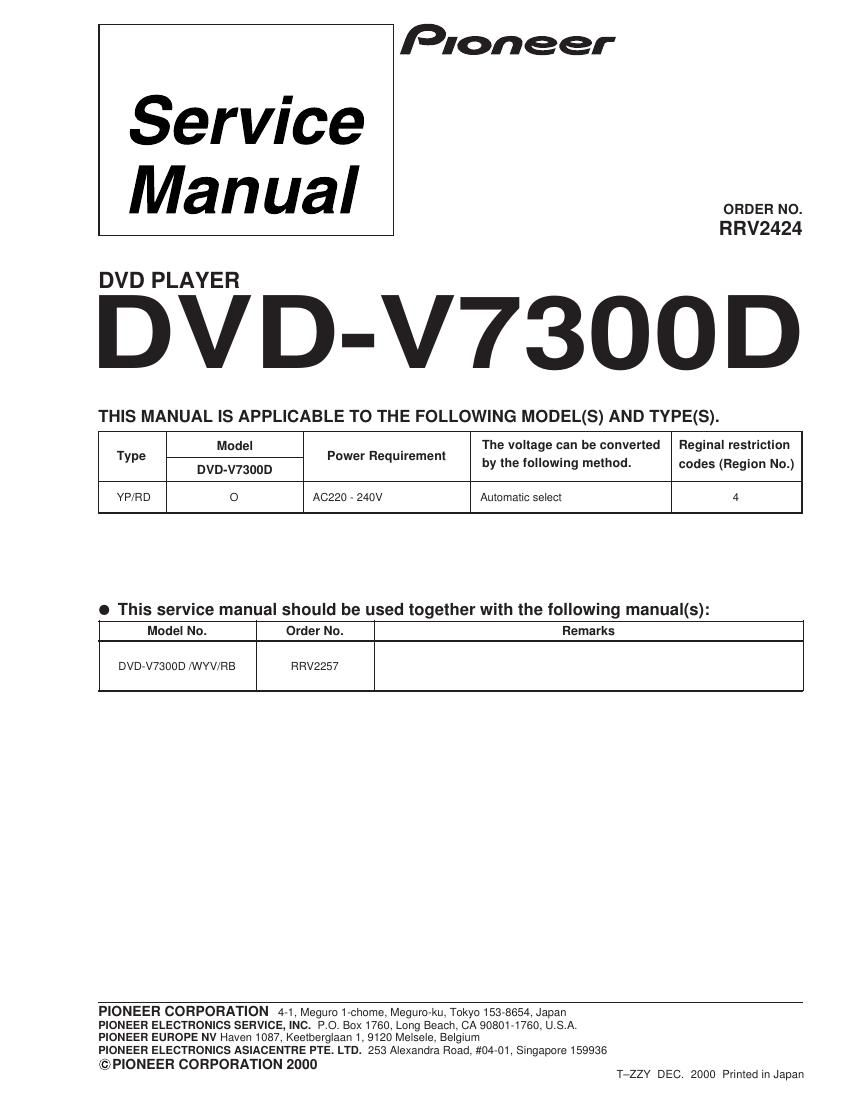

Pioneer dvdv 7300 d service manual

Page 1

DVD-V7300D 2 PACKING P5 - 4 Video Cord VDE1048 VDE1034 P5 - 19 AC Power Cord ADG1127 ADG1124 P5 - 20 AC Power Cord ADG7004 Not used NSP Change Seal Not used DRW2049 No.1 EXTERIOR (1/2) Australia EMC Label Not used DRW2048 No.2 Region Label Not used VRW1704 No.3 1. CONTRAST OF MISCELLANEOUS PARTS Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 561 473 R50 1R0 5621 560 47k 0.5 1RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 10 1 47 x 10 3 R50 1R0561 473 5.62k RN1/4PC F562 x 10 1 5621 CONTRAST TABLE DVD-V7300D/YP/RD and DVD-V7300D/WYV/RB are constructed the same except for the following : Part No. DVD-V7300D WYV/RB Ref. No. Symbol and Description Remarks MarkDVD-V7300D YP/RD No.2No.3 Rear Panel YP/ RD No.1(1/8) No.1(2/8) No.1(3/8) No.1(4/8) No.1(5/8) No.1(6/8)No.1(7/8) No.1(8/8) Packing Case EXPLODED VIEWS ¥ The numbers in the remarks column correspond to the numbers on the exploded diagram, Refer to "EXPLODED VIEWS". PACKING EXTERIOR
