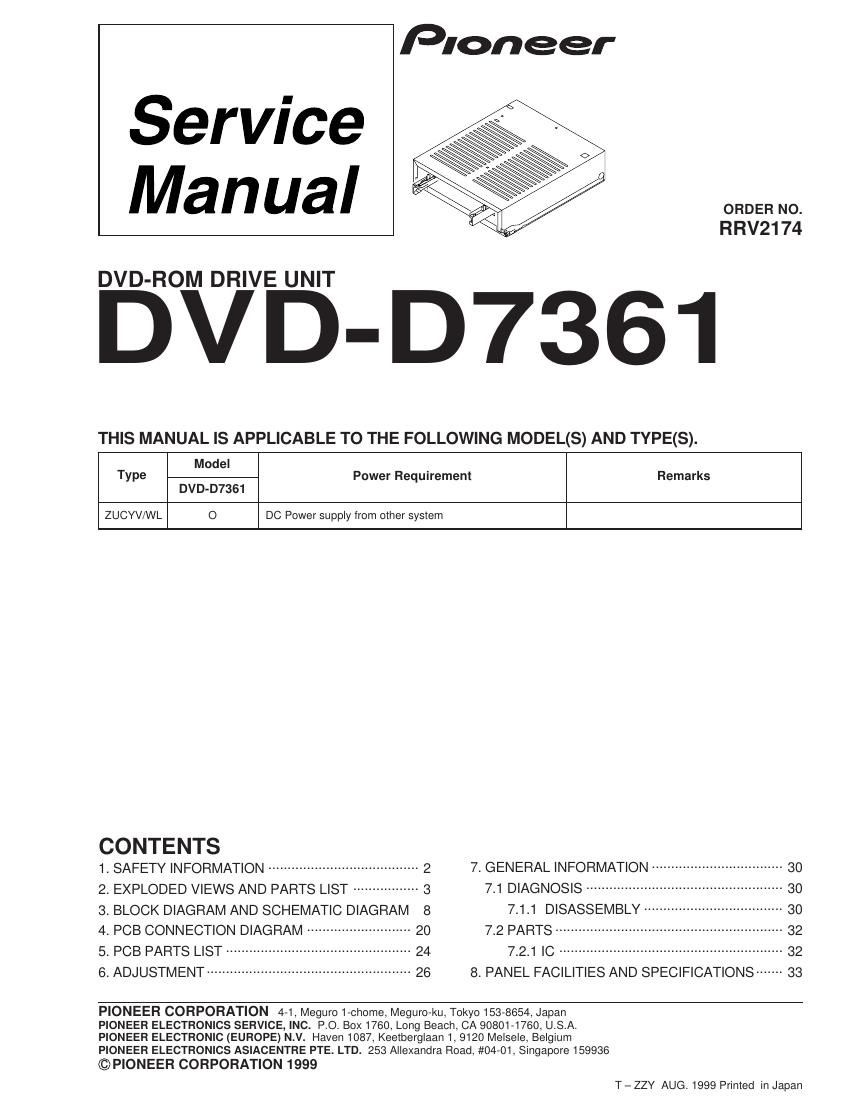

Pioneer dvdd 7361 service manual
This is the 35 pages manual for pioneer dvdd 7361 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer dvdd 7361 service manual (Ocr-read)
Page 1
DVD-D7361 2 1. SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 Ð Proposition 65 IMPORTANT THIS PIONEER APPARATUS CONTAINS LASER OF CLASS 1. SERVICING OPERATION OF THE APPARATUS SHOULD BE DONE BY A SPECIALLY INSTRUCTED PERSON. LASER DIODE CHARACTERISTICS MAXIMUM OUTPUT POWER: 7 mw WAVELENGTH: 640 nm (DVD) , 780 nm (CD-ROM) 1. The ON/OFF(ON:low level,OFF:high level) status of the CLAMP signals for detcting the loading state are detected by the drive CPUs, and the design prevents laser diode oscillation when the CLAMP signal turns OFF. In normal operation, if no disc is clamped, the laser diode oscillation is disabled. However, the interlock does not always operate in the test mode. * 2. When the cover is opened, close viewing of the objective lens with the naked eye will cause exposure to a Class 1 laser beam. Additional Laser Caution * Refer to page 27.
Page 2
DVD-D7361 3 2. EXPLODED VIEWS AND PARTS LIST NOTES :ÖParts marked by Ò NSP Ó are generally unavailable because they are not in our Master Spare Parts List. ÖThe mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ÖScrew adjacent to ° mark on the product are used for disassembly. 2.1 PACKING NSP 1 Warranty Card ARY1093 2 Operating Instructions DRC1106 (English/ French/ German/ Japanese) NSP 3 Polyethylene Bag Z21-010 (100x230x0.018) 4 Polyethylene Bag Z21-038 (230x340x0.03) 5 Pad DHA1455 Mark No. Description Part No. PARTS LIST 6 Packing Case DHG1933 7 Bag DHL1052 NSP 8 Label VRW1629 Mark No. Description Part No. 4 2 1 3 86 7 5
