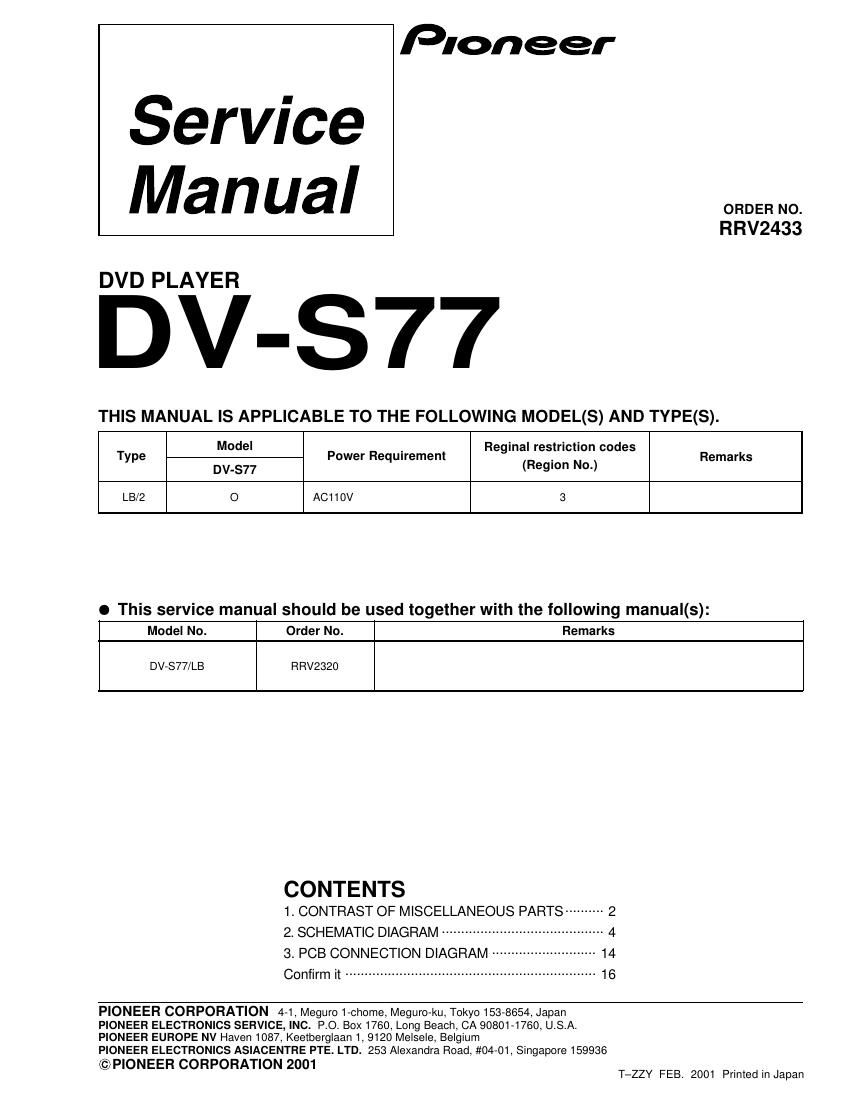

Page 1
Service
Manual
Pioneer
ORDER NO.
RRV2433
DVDPLAYER
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model _ Reginal restriction codes
Type DV-S77 Power ReqUIrement (Region No.) Remarks
LB/2 o ACl10V 3
o This service manual should be used together with the following manual(s):
Model No. Order No. Remarks
DV-S77/LB RRV232O
CONTENTS
1. CONTRAST OF MISCELLANEOUS PARTS ---------- 2
2_ SCHEMATIC DIAGRAM ......................... 4
3. PCB CONNECTION DIAGRAM
Confirm it ................................................................. 1 6
...... 14
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. BOX 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
© PIONEER CORPORATION 2001
T-ZZY FEB. 2001 Printed in Japan
