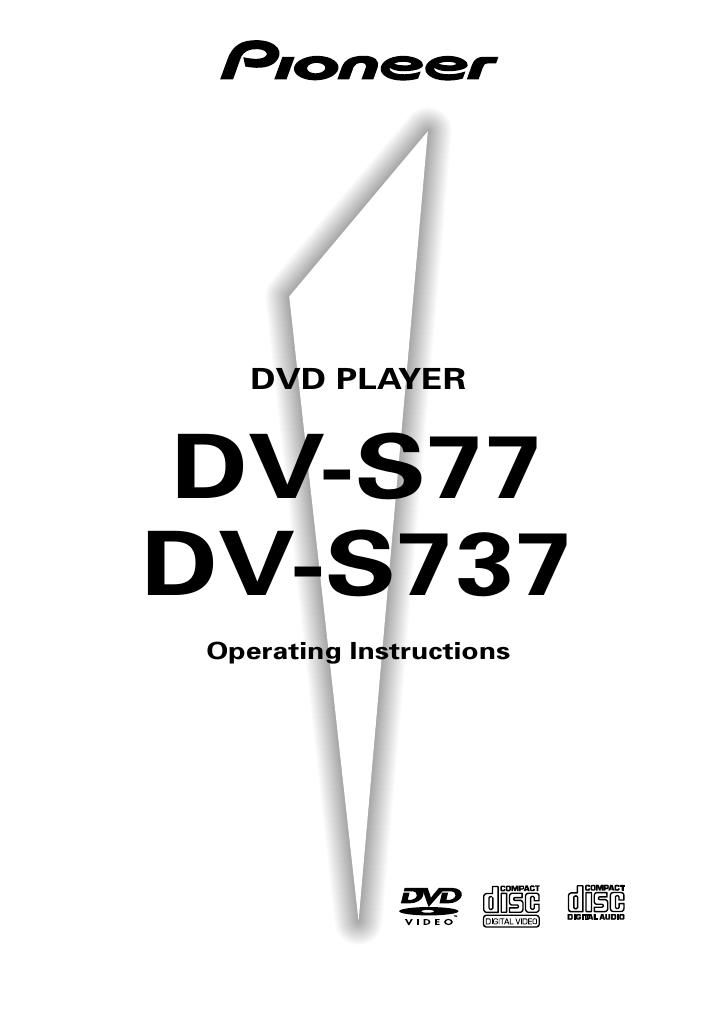

Pioneer dvs 737 owners manual
This is the 64 pages manual for pioneer dvs 737 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer dvs 737 owners manual (Ocr-read)
Page 1
2 THE STANDBY/ON BUTTON IS SECONDARY CONNECTED AND THEREFORE DOES NOT SEPARATE THE UNIT FROM MAINS POWER IN STANDBY POSITION. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION ¥ Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. ¥ The use of optical instruments with this product will increase eye hazard. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. CONGRATULATIONS ON YOUR PURCHASE OF THIS FINE PIONEER PRODUCT. Pioneer is on the leading edge of DVD research for consumer products and this unit incorporates the latest technological developments. We are sure you will be fully satisfied with the DVD player. Thank you for your support. Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference. ¥ This player is not suitable for commercial use. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION IMPORTANT CAUTION: TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER- SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
Page 2
3 Features of This Player Compatible with DVD, Video CD and CD formats DVD, Video CD and CD discs that display the logos shown below can be played back on PIONEER DVD players. For more information on discs compatible with this player, refer to the table below. The disc format logos shown above are found on disc labels or on disc jackets. ¥ To prevent malfunction, do not use an 8 cm (3 in.) adaptor (for CDs). ¥ Discs other than the ones indicated above cannot be played on this unit. ¥ DVDs that have incompatible region numbers, DVD- Audio, DVD-ROM, and CD-ROM cannot be played on this unit. The region number of the player can be found on the rear panel. * Playing recordable CDs ¥ Note that this unit cannot record onto recordable discs. ¥ This unit can play music-use CD-R and CD-RW discs. However, depending on the condition of the CD-Recorder and the disc, you may find that not all discs will play successfully. (For example, if the disc is scratched or dirty, or if the playerÕs pickup lens is dirty.) 12 cm (5in.)/ single-sided 12 cm (5in.)/ double-sided 8 cm (3 in.)/ single-sided 8 cm (3 in.)/ double-sided 1 layer 2 layer 1 layer 2 layer 1 layer 2 layer 1 layer 2 layer DVD VIDEO DVD VIDEO Types of playable discs and their marksDiameter/ Playable sides Playback time Digital audio Digital video (MPEG 2) 133 min. 242 min. 266 min. 484 min. VIDEO CD CDDigital audio Digital video (MPEG 2) DVD VIDEO VIDEO CD CD41 min. 75 min. 82 min. 150 min. VIDEO CD single CD singleDigital audio Digital video (MPEG 1) Max. 74 minutes Digital audio Digital video (MPEG 1) Max. 20 minutes Digital audio Max. 74 minutes 12 cm (5 in.)/ single-sided 8 cm (3 in.)/ single-sided 12 cm (5 in.)/ single-sided 8 cm (3 in.)/ single-sidedDigital audio Max. 20 minutes * * 525 line digital progressive-scan component video output (NTSC) Compared to standard interlaced video, progressive scan effectively doubles the amount of video information fed to your TV or monitor. The result is a stable, flicker-free image. (Check your TV/monitor for compatibility with this feature.) For the very highest picture quality, try watching a movie on DVD-Video on a progressive-scan compatible TV. The DV-S77/DV-S737 offers complete flexibility and compatibility with all types of AV equipment with composite video and S-Video outputs, as well as component video outs. Compatible with a wide range of DVD digital audio output formats DVDs are recorded in one of four types of digital audio formats (as of October 1998). The digital audio output jacks of this player output Dolby Digital*, DTS**, MPEG, and linear PCM digital bitstreams. This player has a function that converts Dolby Digital and MPEG audio formats into the linear PCM format. This allows playback of DVDs recorded in Dolby Digital and MPEG without the need for a decoder. Digital Noise Reduction PRO (Video Quality Enhancer) This new type of DNR (Digital Noise Reduction) for encoding video (called VQE or Video Quality Enhancer) enables you to adjust the video settings on a more detailed and exact level. There are three possible settings to choose from. These include: TV (CRT), Projector, and Professional. This technology can remember which setting youÕve chosen and employ it at the proper time. TruSurround and Virtual Dolby Digital TruSurround*** uses technology that simulates multichannel surround sound using only two speakers. Virtual Dolby Digital works in conjunction with Dolby Digital audio sources to create a realistic surround sound. Virtual Dolby Digital is selected automatically when Dolby Digital sources are loaded. 1 * Manufactured under license from Dolby Laboratories. ÒDolbyÓ and the double-D symbol are trademarks of Dolby Laboratories. Confidential unpublished works, © 1992-1997 Dolby Laboratories. All rights reserved. ** ÒDTSÓ is trademarks of Digital Theater Systems, Inc. ***TruSurround and the symbol are trademarks of SRS Labs, Inc. in the United States and selected foreign countries. TruSurround technology is incorporated under license from SRS Labs, Inc.
