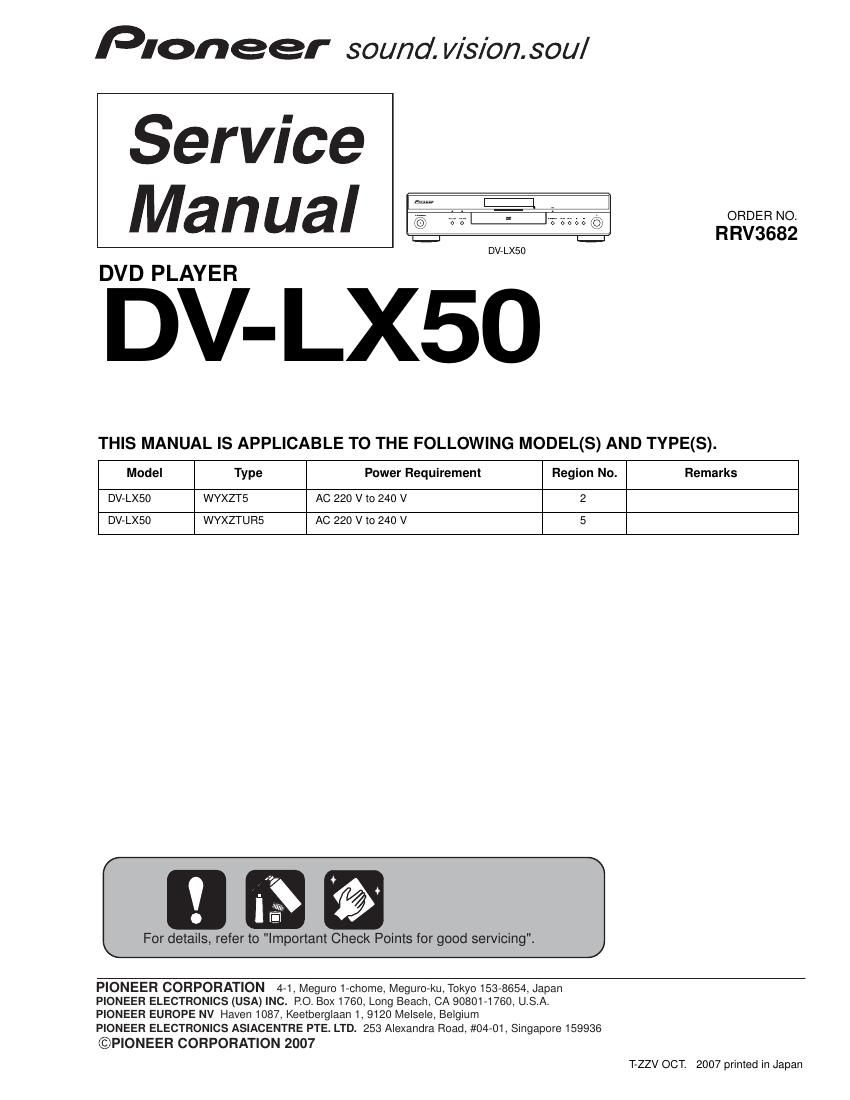

Page 1

Pioneer sound. vision. soul

Service
Manual E Briggs;

DVVLXSO

DVD PLAYER

DV- LX50

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Model Type Power Requirement Region No. Remarks
DV-LX50 WYXZTS AC 220 V to 240 V 2
DV-LX50 WYXZTUR5 AC 220 V to 240 V 5

I, Q
_ O
E

For details, refer to "Important Check Points for good servicing".

PIONEER CORPORATION 4-1. Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. R0. BOX 1760: Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keeiberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

@PIONEER CORPORATION 2007
T-ZZV OCT. 2007 printed in Japan

Page 2

2 DV-LX50
-

SAFE'I'Y INFORMATION
[I

This service manual is intended for qualified service technicians ; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trainedto properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely,
you should not risk trying to do so and refer the repair to a qualified service technician.

WARNING ! -

THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1
BUT THE LASER COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR
CLASS 1.

A SPECIALLY INSTRUCTED PERSON SHOULD DO SERVICING OPERATION OFTHE APPARATUS.

LASER DIODE CHARACTERISTICS 7

FOR DVD: MAXIMUM OUTPUT POWER :5 mW
WAVELENGTH :650 nm

FOR CD: MAXIMUM OUTPUT POWER :5 mW

WAVELENGTH :780 nm

LABEL CHECK

Location: inside of the unit

CAUTION . CLASS 1M LASER RADIATION WHEN OPEN DO NOT VIEW DIRECTLV WITH OPTICAL INSTRUMENTS WWW
Vmsichl , KLASSE IM LASER Straiilimg Bei gentiiietem Gmt riiciil mil nptisclieii Gerateii in den LaserstraIiI hIickeri

PRECAUCION RADIACION LASER CLASE WI. ALABRIR N0 MIRAR DIRECTAMENTE CDN INSTRUMENTOIS DPTICOS.

VIKTIGT KLASS INI LASER STRALNING NAR APPARATEN AR DPFEN TITTA INTE RAKT IN I DEN SPECIELLT INTE 0M DU HAR ELASOGON PA DIG
VETDIIUSI Luokka WI ri Iasers'atein AIa koskaari katso Iaifleefl sIsIaari sen oIIessa auki-eI mybskban siImaIaseiIIa Iai muiIIa apIisiIIa IaitteiIIaI
ADVAHSEL LASERSTRALER KLASSE IM KIG IKKE DIREKTE IND IAPPARATET NAR DETTE ER ABENT ISIER IKKE MED BRILLER ELLEII ANDRE DPTISKE UEJEKTER

Additional Laser Caution

1.
CLASS 1 - Laser diode is driving With Q2303,Q2305(650nm LD) and 02302,
LAS E R P R O D U CT Q2304(780nm LD)on the DVD MT PCB Assy.
Therefore, when shortrcircuit between the emitter and coIIector of these
transistors or the base voItage is supplied for transistors turn on, the
laser osciIIates. (failure mode)
- In the test mode ar , there Is the mode that the laser oscillates except
for the disc judgment and playback. LD ON mode in the test mode
osciIIates With the Iaser forcibly.

(Printed on the Rear Panel)

2. When the cover is open, close viewing through the objective lens With
the naked eye wiII cause exposure to the Iaser beam.

* :See page 37.
