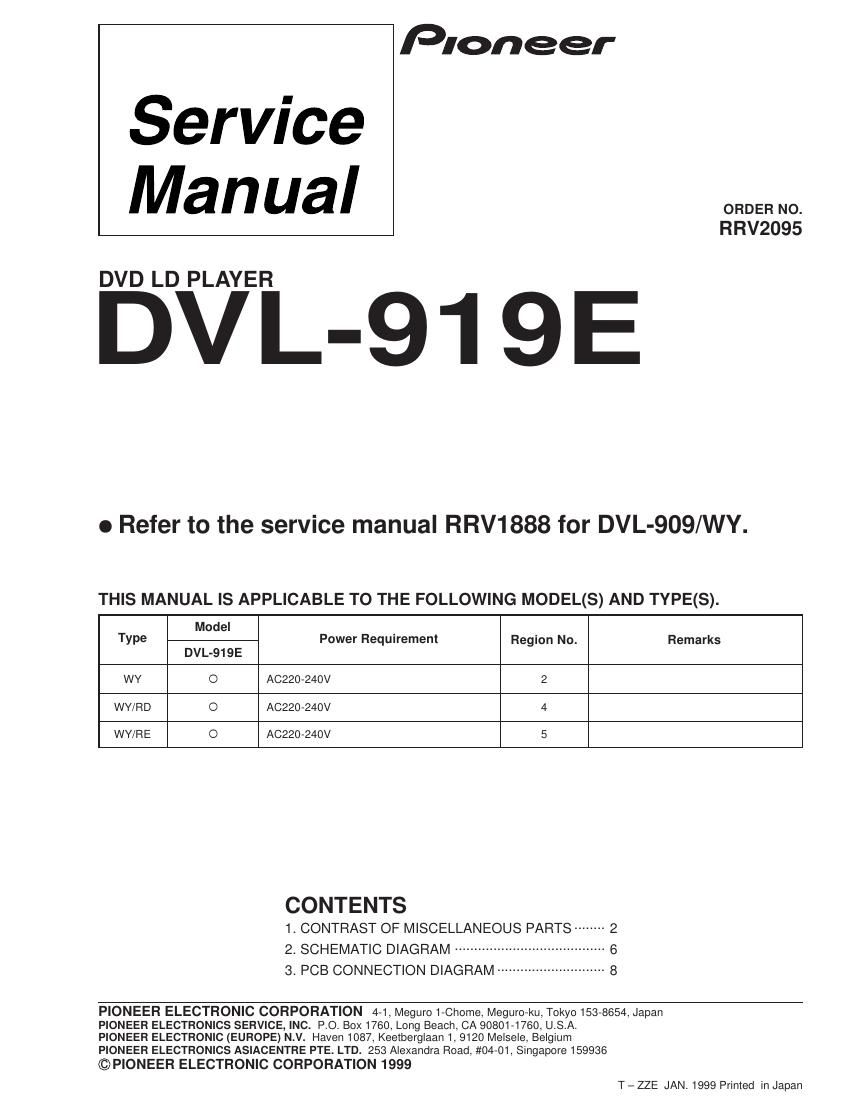

Service
Manual

DVD LD PLAYER

Pioneer

ORDER NO.
RRV2095

DVL-91 9E

0 Refer to the service manual RRV1888 for DVL-909/WY.

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Model
Type Power Requirement Region No. Remarks
DVL-919E
WY 0 A0220-240V 2
WY/RD O A0220-240V 4
WY/RE o AC220-240V 5

CONTENTS

1. CONTRAST OF MISCELLANEOUS PARTS -------- 2
2 SCHEMATIC DIAGRAM ....................................... 6
3 PCB CONNECTION DIAGRAM ............................ 8

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. BOX1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melseie, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

©P|ONEER ELECTRONIC CORPORATION 1999

T - ZZE JAN. 1999 Printed in Japan

Page 2

DVL-919E

1

. CONTRAST OF MISCELLANEOUS PARTS

NOTES .'

Therefore, when replacing, be sure to use parts of identical designation.
0 Reference Nos. indicate the pages and Nos. in the service manual for the base model.

0 Parts marked by NSP " are generally unavailable because they are not in our Master Spare Parts List.
0 The A mark found on some component parts indicates the importance of the safetyfactor of the part.

0 When ordering resistors, first convert resistance Values into cadeform as shown in thefollowing examples.
Ex. 1 When there are 2 eflective digits (any digit apartfram 0), such as 560 ohm and 47k ohm ( tolerance is shown by

J = 5%, andK = 10%).

5609*56X10->561. ..RD1/4PUEI@EJ

47kQ->47><103->473 RDI/4PUEIEJ
o.5o->R5o RN2H®I@K
IQ->1R0... RS1Pm®@K

Ex. 2 When there are 3 eflective digits (such as in high precision metal film res' rs).
5.62kQ->562X10->5621 .................................... RN1/4PC- .mF

l CONTRAST TABLE

DVL-919E/WY, WY/RD, WY/RE and DVL-909/WY are constructed the same except for the following:

Part No.
Ref. No. Mark Symbol and Description DVL-909 DVL-919E Remarks
WY WY WY/RD WY/RE
PCB ASSEMBLIES
NSP CLDGM ASSY VWM1806 VWM1886 VWM1886 VWM1886
P9 - 13 CLDM ASSY VWS1332 VWSI365 VWS1365 VWS1365 *1
P7 - 21 JCKB ASSY VWV1578 VWV1639 VWV1639 VWV1639 *2
P7 - 26 MSWB ASSY VWG1895 VWG2017 VWGZO17 VWG2017 >113
DVDM ASSY VWS1328 VWSI 373 VWS1373 VWS1373 *4
PACKING
P3 - 6 Remote Control Unit (CU-DV013) VXX2534 Not used Not used Not used
P3 - 6 Remote Control Unit (CU-DV029) Not used VXX2608 VXX2608 VXX2608
P3 - 9 Operating Instructions VRE1069 VRE1076 VRE1076 VRE1076
(English/French/German/ltalian)
P3 - 10 Operating Instructions VFlF1043 VRF1047 Not used Not used
(Spanish/Portuguese/Dutch/Swedish)
P3 - 11 NSP Warranty Card ARY7008 ARY7022 Not used ARY7022
P3 - 15 Packing Case VHG1724 VHG1769 VHG1769 VHGI 769
P3 - 16 Label Not used Not used VRW1761 VRW1756
P3 - 17 Label (Region) VRW1701 VRW1701 VRW1705 VRW1755
FRONT PANEL SECTION
P5 - 1 Front Almi VAH1280 VAH1304 VAH1304 VAH1304
P5 - 18 Name Plate VAM1051 PAN1377 PAN1377 PAN1377
TOP VIEW SECTION
P7 - 9 Heat Sink VNE2134 Not used Not used Not used
P7 - 10 Radiation Seat VE31282 Not used Not used Not used
BOTTOM VIEW SECTION
P9 - 29 Rear Cover VNA1925 VNA2030 VNA2052 VNA2052
P9 - 35 Housing Assy (13P) VKP2162 VKP2199 VKP2199 VKP2199
P9 - 39 Label (Region) VRW1700 Not used VRW1704 VRW1754
*1 : Refer to " PCB PARTS LIST 2. SCHEMATIC DIAGRAM and 3. PCB CONNECTION DIAGRAM
*2 : Although VWV1639 and VWV1578 are diffemt in part number, they have same service parts.
*3 : Although VWGZOI7 and VWGIX95 are diffemt in part number, they have same service parts.
*4 : Refer to "CONTRAST OF PCB ASSEMBLIES
