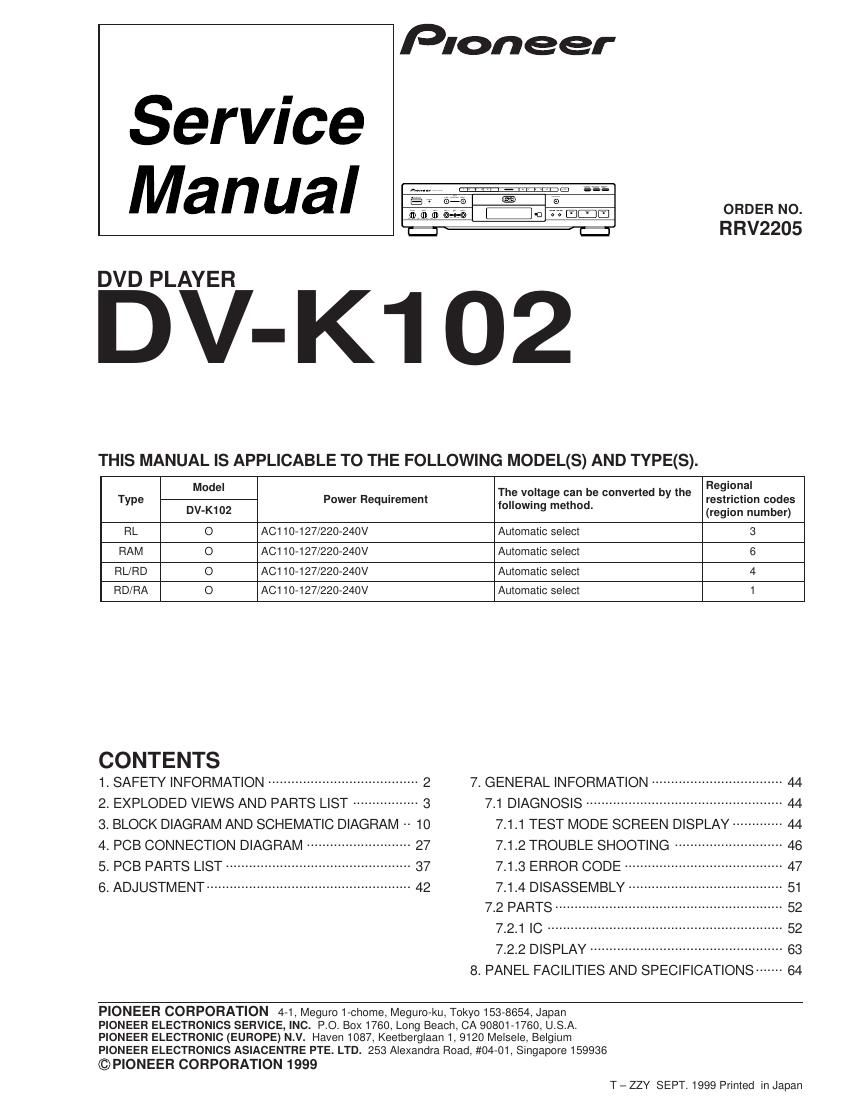

Pioneer dvk 102 service manual
This is the 68 pages manual for pioneer dvk 102 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer dvk 102 service manual (Ocr-read)
Page 1
2 DV-K102 1. SAFETY INFORMATION This service manual is intended for qualified service technicians ; it is not meant for the casual do-it- yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. Additional Laser Caution 1. Inside detection switch (S201 on the SMEB assy) and loading-status detection switch (S301 on the LOSB assy) are detected by the microprocessor (IC11 in the DVDM assy). ¥ To permit the laser diode to oscillate, it is required to set the inside detection switch for the inside position (S201 : ON) and to set the loading-status detection switch for the clamp position (the center terminal of S301 is shorted to +5V). The 655 nm laser diode for DVD oscillation will continue if pin 19 of IC1 is shorted to +5V (fault condition) in the DVDM assy. The 785 nm laser diode for CD oscillates if pin 20 of IC1 is shorted to +5V in the DVDM assy. In the test mode * , the laser diode oscillates when microprocessor detects a PLAY signal, or when the PLAY key is pressed (S106 ON in the FLKY assy), with the above requirements satisfied. 2. When the cover is open, close viewing through the objective lens with the naked eye will cause exposure to the laser beam. * : See page 42. LASER DIODE CHARACTERISTICS FOR DVD : MAXIMUM OUTPUT POWER : 5 mW WAVELENGTH : 655 nm FOR CD : MAXIMUM OUTPUT POWER : 5mW WAVELENGTH : 785 nm IMPORTANT THIS PIONEER APPARATUS CONTAINS LASER OF CLASS 1. SERVICING OPERATION OF THE APPARATUS SHOULD BE DONE BY A SPECIALLY INSTRUCTED PERSON.
Page 2
DV-K102 3 2.1 PACKING 1 Power CordSee Contrast table (2) 2 Video Cord (L=1.5m)See Contrast table (2) 3 Audio Cord (L=1.5m)See Contrast table (2) NSP 4 Dry Cell Battery (R6P, AA)See Contrast table (2) 5 Operating InstructionsVRB1232 (English) 6 Operating Instructions See Contrast table (2) 7· · · · · 8 Polyethylene Bag VHL1051 9 Remote Control Unit VXX2642 (CU-DV048) 10 Battery Cover VNK4467 11 Pad F VHA1238 12 Pad R VHA1239 13 Mirror Mat Sheet Z23-007 14 Packing CaseSee Contrast table (2) NSP 15 Warranty Card See Contrast table (2) 16 Region Label P4 See Contrast table (2) (1) PACKING PARTS LIST Mark No. Description Part No. 2. EXPLODED VIEWS AND PARTS LIST NOTES: · Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. · The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. · Screws adjacent to mark on the product are used for disassembly. (2) CONTRAST TABLE RL, RAMXQ, RL/RD and RD/RA types are constructed the same except for the following : k r a M.o Nno i t p i r c s e D d n a l o b m y S. o N t r a P s k r a m e R L R e p y tQ X M A R e p y tD R / L R e p y tA R / D R e p y t P S N P S N1 2 3 4 6 6 4 1 5 1 6 1d r o C r e w o P ) m 5 . 1 = L ( d r o C o e d i V ) m 5 . 1 = L ( d r o C o i d u A ) A A , P 6 R ( y r e t t a B l l e C y r D ) e s e n i h c - d a r T ( s n o i t c u r t s n I g n i t a r e p O ) e s e n i h c - p m i S ( s n o i t c u r t s n I g n i t a r e p O e s a C g n i k c a P d r a C y t n a r r a W 4 P l e b a L n o i g e R7 2 1 1 G D A 4 3 0 1 E D V 3 3 0 1 E D V 3 1 0 - M E V 3 0 1 1 C R V d e s u t o N 7 4 8 1 G H V d e s u t o N d e s u t o N8 1 0 7 G D A 5 5 0 1 E D V 4 5 0 1 E D V 0 1 0 1 M E V d e s u t o N 2 0 1 1 C R V 4 4 8 1 G H V 8 2 0 7 Y R A d e s u t o N7 2 1 1 G D A 4 3 0 1 E D V 3 3 0 1 E D V 3 1 0 - M E V d e s u t o N d e s u t o N 7 4 8 1 G H V d e s u t o N 5 0 7 1 W R V3 0 0 7 G D A 4 3 0 1 E D V 3 3 0 1 E D V 3 1 0 - M E V d e s u t o N d e s u t o N 8 1 8 1 G H V 5 2 0 7 Y R A d e s u t o N 815 6 5 RAMXQ and RD/RA types only 8109 3 4 2 1 11 12 13 FRONT 14 16 16 RL/RD type only RL/RD type only
