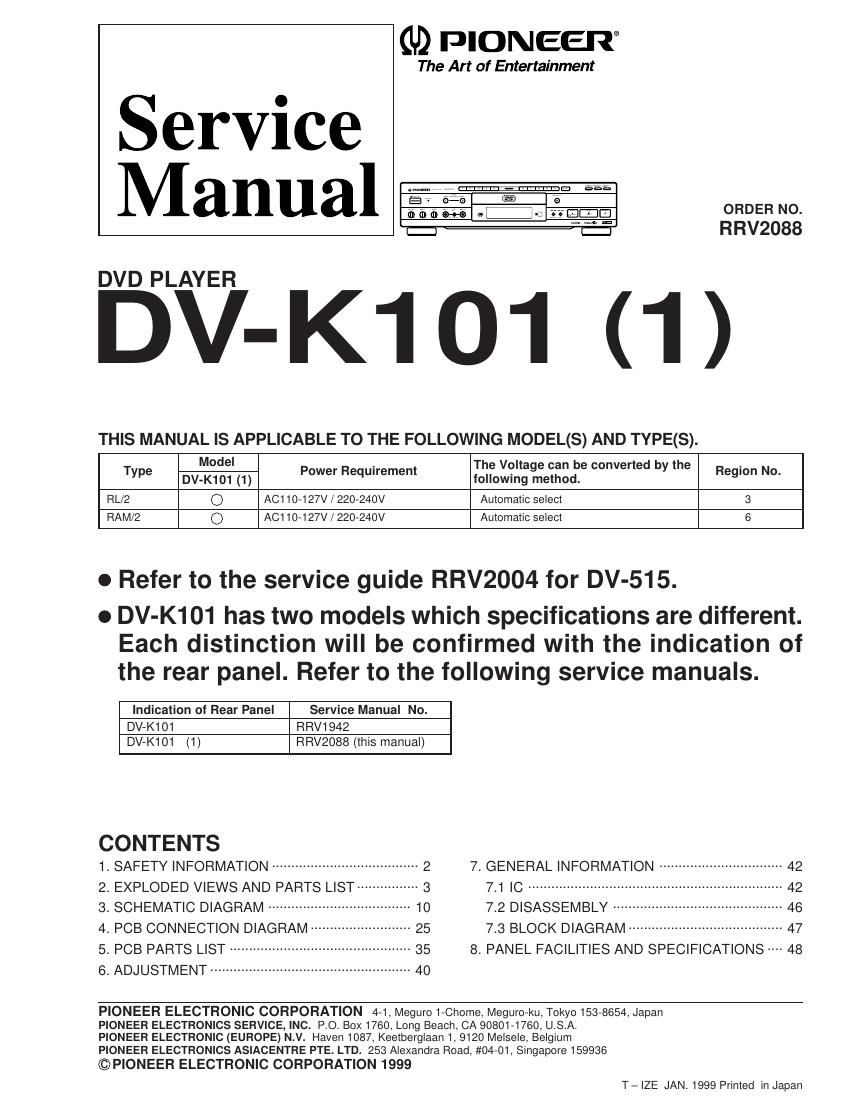

Page 1

(U) PIONEER®

The Art of Entertainment

Service
Manual

DVDPLAYER

DV-K1 01 (1 )

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

ORDERNO.
RRV2088

Model . The Voltage can be converted by the -
Type DV-K101 (1) Power Requuement following method. Region No.
RL/2 O AC110-127V / 220-240V Automatic select a
RAM/2 Q AC110-127V/220-240V Automatic select

0 Refer to the service guide RRV2004 for DV-515.

o DV-K101 has two models which specifications are different.
Each distinction will be confirmed with the indication of
the rear panel. Refer to the following service manuals.

Indication of Rear Panel Service Manual No.

DV-K101 RRV1942

DV-K101 (1) RRV2088 (this manual)
CONTENTS
1_ SAFETY INFORMATION ...................................... 2 7 GENERAL INFORMATION ............................ 42
2_ EXPLODED VIEWS AND PARTS LIST ................ 3 71 IC .............................................................. 42
3_ SCHEMATIC DIAGRAM ..................................... 10 72 DISASSEMBLY ........................................ 46
4. PCB CONNECTION DIAGRAM- -- 25 7.3 BLOCK DIAGRAM --------------------------------- 47
5. PCB PARTS LIST ------------- ~ 35 8. PANEL FACILITIES AND SPECIFICATIONS 48

6. ADJUSTMENT ------------

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. BOX1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

©P|ONEER ELECTRONIC CORPORATION 1999
T- IZE JAN. 1999 Printed in Japan

Page 2

DV-K101 (1)

1. SAFETY INFORMATION

This service manual is intended for qualified service technicians ; it is not meant for the casual do-it-
yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained
to properly and safely repair complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.

WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause
cancer, birth defects or other reproductive harm.

Health & Safety Code Section 25249.6 - Proposition 65

lMPORTANT - Additional Laser Caution
THIS PIONEER APPARATUS CONTAINS

LASER OF CLASS 1- 1. Inside :etection sw'iIC: ((88:00: onitrheligzg assy; anddloadingé
saus eecionswrc on e ass are eece

SERV'C'NG OPERAT'ON OF THE APPARATUS by the microprocessor (ICSOt in the DVDM assyI.

SHOULD BE DONE BY A SPECALLY To permit the laser diode to oscillate. it rs required to set the
INSTRUCTED PERSON inside detection swrtch for the inside position (8201 :ON) and to
set the loadihgrstatus detection sWitch for the clamp cushion (the
center terminal at $301 is shorted to +5V). The laser diode
oscillation will continue it pin 13 ot |CtOt is shorted to +5V (fault

7 LASER DIODE CHARACTERISTICS 7 condition) in the DVDM assy.

MAXIMUM OUTPUT POWER : 7 mW In the test mode >< , the laser diode oscillates when microprocesV

WAVELENGTH : 650 nm sor detects a PLAY signal. or when the PLAY key is pressed
(8106 ON in the FLKY assy), With the above requirements satisV
fled.

2. When the cover is open, close viewmg through the objective lens
with the naked eye will cause exposure to the laser beam.

* :Reter to the service guide FIFIV2004.

LABEL CHECK

CLASS I

LASER PRODUCT

(Printed on the Rear Panel)
