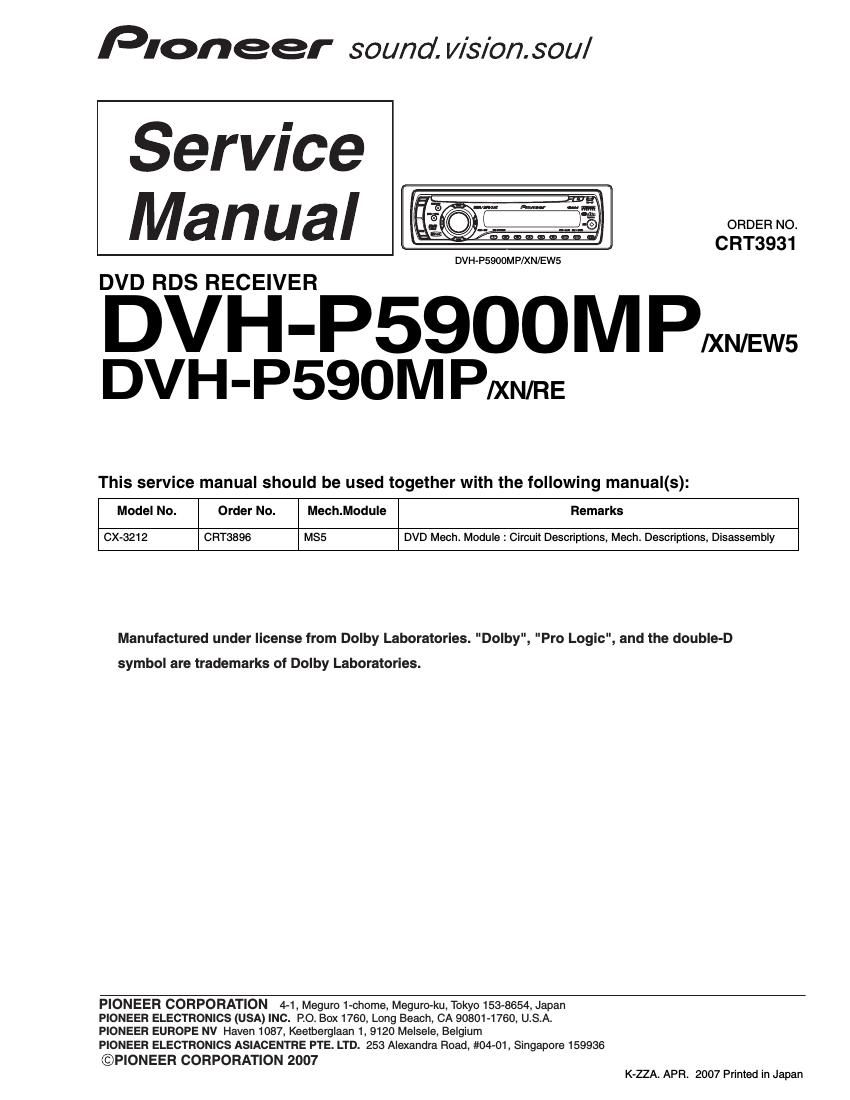

Page 1

Pioneer sound. V/S/bnsou/

Service
Manual

DVD RDS RECEIVER

DVH - P5900 M P/XN/EW5
DVH-P590M P/XN/RE

ORDER NO.

CRT3931

DVH-PSQOOMP/XN/EWS

This service manual should be used together with the following manual(s):
Remarks

Model No. Order No. Mech.Module

DVD Mech. Module : Circuit Descriptions, Mech. Descriptions, Disassembly

CX-3212 CRT3896 M85

Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic", and the double-D

symbol are trademarks of Dolby Laboratories.

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. R0. BOX 1760, Long Beach, CA 90801 -1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

@PIONEER CORPORATION 2007
K-ZZA. APR. 2007 Printed in Japan

Page 2

SAFETY INFORMATION

This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair

complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so
and refer the repair to a qualified service technician.

1. Safety Precautions for those who Service this Unit.
' Follow the adjustment steps in the service manual when servicing this unit. When check -
ing or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable results.

Caution:
1. During repair or tests, minimum distance of 13 cm from the focus lens must be kept.
2. During repair or tests, do not view laser beam for 10 seconds or longer.

2. The triangular label is attached to the mechanism
unit frame.

CAUTION

This product contains a laser diode of higher class
than 1. To ensure continued safety, do not
remove any covers or attempt to gain access to
the inside of the product.

Refer all servicing to qualified personnel.

The folIOWing caution label appears on your unit.

On the top of the player.

CAUTIDN' am a- vs-LErENRéW [m mmrm wrai new.

VDFISICHT' -a E-m- A-newus Eran-(runs um wan-«am:
mum is W e' wimrmrasi W'HINM.
w M141 um WI

ADVARSEL' fitfifi- smuzceusmw Mia-wave: "ma.

REST-ALMS.

. mew mummnmmwammm
VARNING .n m. uumm ins-Tm m m mum.

VAFlD" Amman niEr ALTl'lN NAKWALLE JA NAKVMATIIMIUE moon
3- LISEI'IEIMLLE ILI um slum.

AWENTIDN'WmBEmW 3' m

1 - 2

DVH-P5900MP/XN/EW5
-
