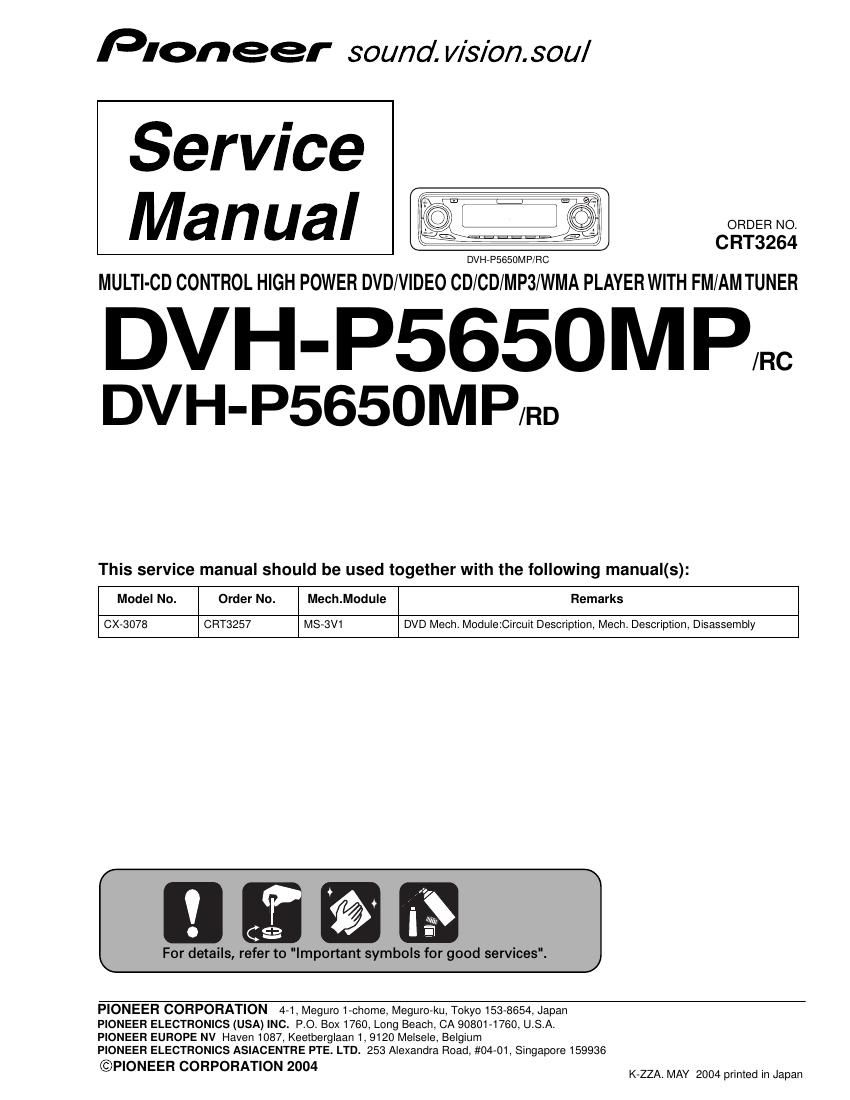

Pioneer sound. vision. sou/

Service
Manual

ORDER NO.

CRT3264

DVH P5650MP/FIC

MULTI- CD CONTROL HIGH POWER DVD/ VIDEO CD/ CD/ /MP3/ /WMA PLAYER WITH FM/ AM TUNER

DVH- P565OMP/Rc

DVH-P565OMP/nn

This service manual should be used together with the following manual(s):

Model No.

Order No.

Mech.Module

Remarks

CX-3078

CRT3257

MS-SVI

DVD Mech. Module:Circuit Description, Mech. Description, Disassembly

For details, refer to "Important symbols for good services".

PIONEER CORPORATION 4-1, Meguro l-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. BOX 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keelberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

©P|ONEER CORPORATION 2004

K-ZZA. MAY 2004 printed in Japan

Page 2

U

SAFETY INFORMATION

[ Important symbols for good services ]

In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely.
When you find the procedures bearing any of the symbols, be sure to fulfill them:

1. Product safety

You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and
should keep the safety during servicing by following the safety instructions described in this manual.

2. Adjustments \
To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable.
In accordance with the procedures or instructions described in this manual, adjustments should be performed.
J

3. Cleaning

t For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning,
% proper cleaning should be performed to restore their performances.

W4- Shipping mode and shipping screws

To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or
the shipping screws should be installed before shipping out in accordance with this manual, if necessary.

/

5. Lubricants, glues, and replacement parts

ones should be used.

glue may lead to failures ortroubles in the product. By following the instructions in this manual, be sure to apply the

Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying
prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed

This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely
repair complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the
warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk
trying to do so and refer the repair to a qualified service technician.

. Service Precaution

I. You should conform to the regulations governing
the product (safety, radio and noise, and other
regulations), and should keep the safety during
servicing by following the safety instructions
described in this manual.

2. Before disassembling the unit, be sure to turn off
the power. Unplugging and plugging the connectors
during power-on mode may damage the le inside
the unit.

3. To protect the pickup unit from electrostatic discharge
during servicing, take an appropriate treatment
(shorting-solder) by referring to "the DISASSEMBLY"
on page 73.

VIDEO %

[flfiéfi

DIGITAL VIDEO

@fiEfi

4. After replacing the pickup unit, be sure to skew
adjustment. (See page 61.)

5. During disassembly, be sure to turn the power off since
an internal IC might be destroyed when a connector
is plugged or unplugged.

6. To avoid malfunctions after finishing DVD mechanism
test mode, you must execute the following steps to
clear the memory and leave the mode:

(1) Turn off the back-up and ACC.
(2) Wait IO seconds.

(3) Turn on ACC.

(4) Turn on the back-up.

Eb a trademark of DVD Format/Logo Licensing Corporation.
