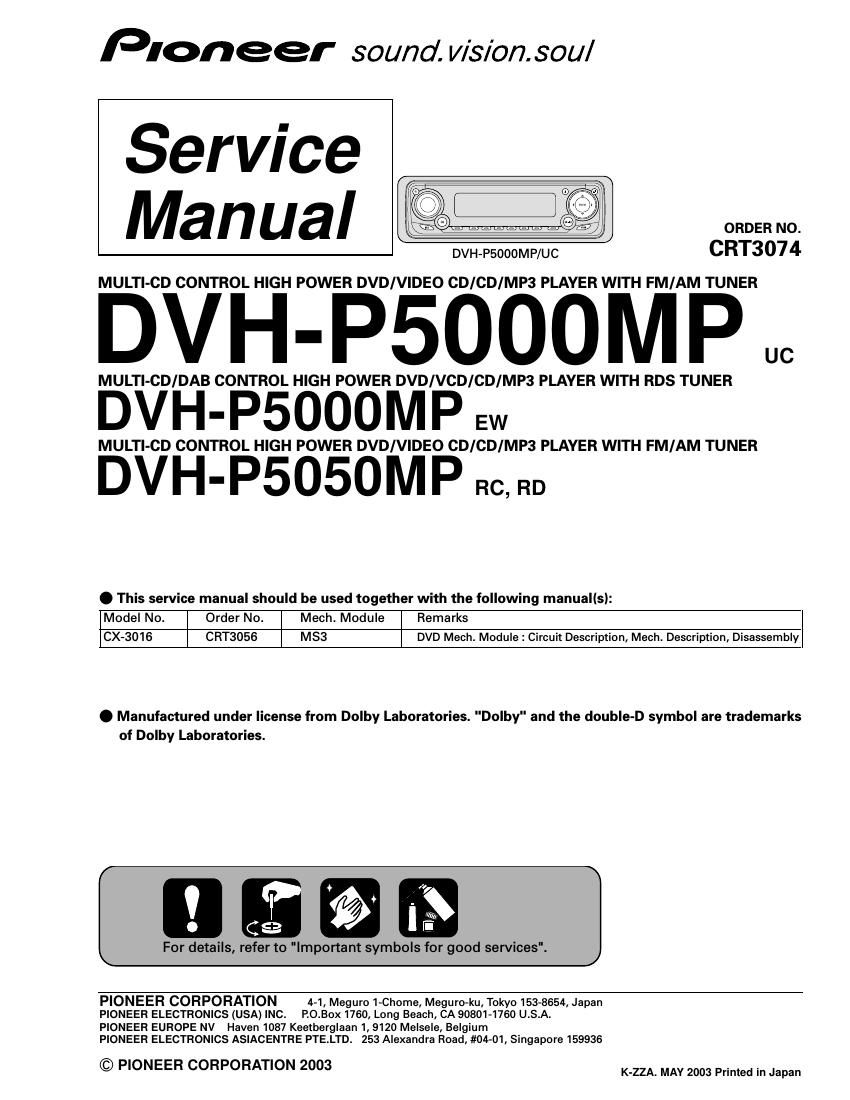

Page 1

Pioneer sound. V/LS/bfl.$0u/

Service
Manual - cam:

MULTl-CD CONTROL HIGH POWER DVD/VIDEO CD/CD/MP3 PLAYER WITH FM/AM TUNER

DVH-P5000MP uc

MULTl-CD/DAB CONTROL HIGH POWER DVD/VCD/CD/MP3 PLAYER WITH RDS TUNER

DVH-P5000MP EW

MULTl-CD CONTROL HIGH POWER DVD/VIDEO CD/CD/MP3 PLAYER WITH FM/AM TUNER

DVH-P5050MP no,»

. This service manual should be used together with the following manualls):
Model No. Order No. Mech. Module Remarks I
CX»30|6 CRT3056 M53 DVD Mech. Module : Circuit Description, Mech. Description, Disassemblyl

. Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks
of Dolby Laboratories.

"r
@1,
E

[IE-I

For details, refer to "Important symbols for good services".

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro»ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04»O1, Singapore 159936

© PIONEER CORPORATION 2003 K-ZZA. MAY 2003 Printed in Japan

Page 2

I
N
I
CA)
I
s

[ Important symbols for good services ]
In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely.
When you find the procedures bearing any ofthe symbols, be sure to fulfill them:

1. Product safety

You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and
should keep the safety during servicing by following the safety instructions described in this manual.

N

. Adjustments

To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable.
In accordance with the procedures or instructions described in this manual, adjustments should be performed.

3. Cleaning

. For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning,
% proper cleaning should be performed to restore their performances.

4. Shipping mode and shipping screws

To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or
the shipping screws should be installed before shipping out in accordance with this manual, if necessary.

(5. Lubricants, glues, and replacement parts

Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying
glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the
prescribed grease or glue to proper portions by the appropriate amounLFor replacement parts or tools, the prescribed
ones should be used.

. DVD Player Service Precautions n

I. To protect the pickup unit from electrostatic dis-
charge during servicing, take an appropriate treat-
ment (shorting-solder) by referring to " the DISAS-
SEMBLY" on page 104.

2. Please adjusting the skew after changing the pickup
unitlsee page 87).

3. To avoid malfunctions after finishing DVD mecha»
nism test mode, you must execute the following
steps to clear the memory and leave the mode:

(1) Turn off the back-up and ACC.
(2) Wait 10 seconds.

(3) Turn on ACC.

(4) Turn on the back-up.

2 DVH-PEWOM P/UC

1 - 2 -
