Pioneer dvf 727 service manual
This is the 102 pages manual for pioneer dvf 727 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer dvf 727 service manual (Ocr-read)
Page 1

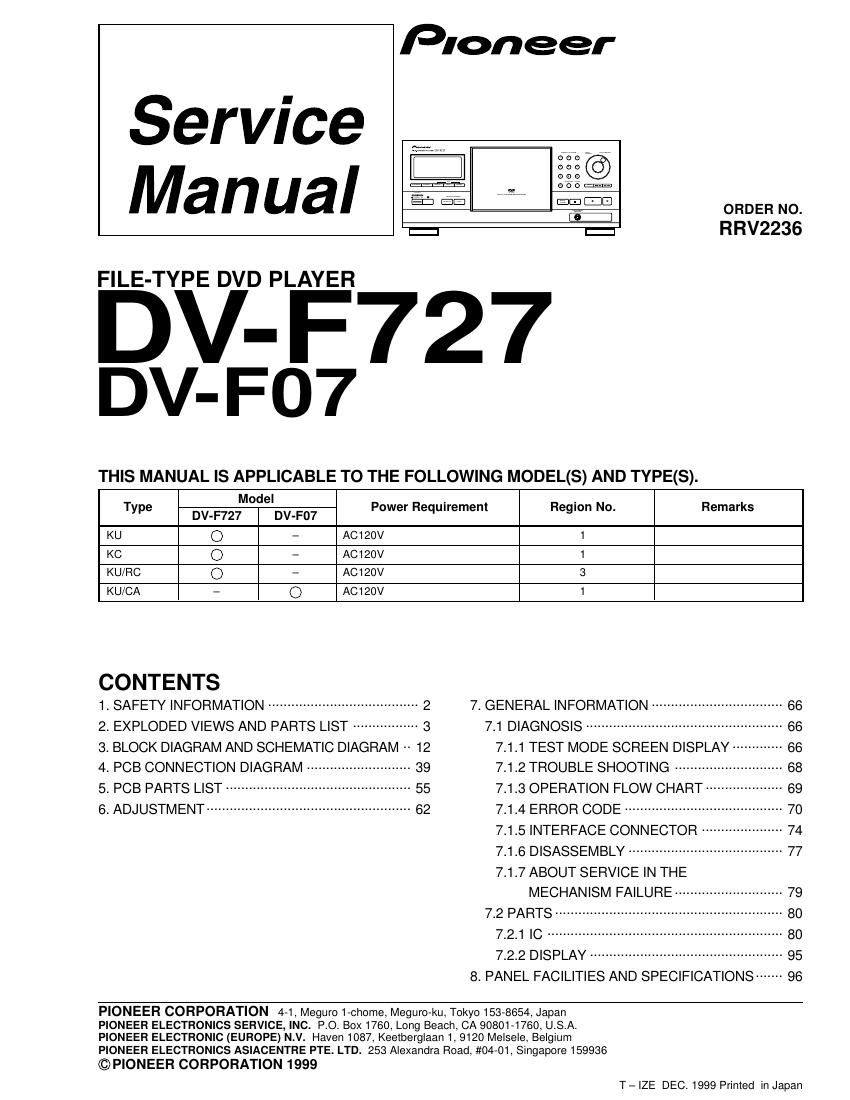

2 DV-F727, DV-F07 1. SAFETY INFORMATION This service manual is intended for qualified service technicians ; it is not meant for the casual do-it- yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65 NOTICE (FOR CANADIAN MODEL ONLY) Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must be of identical designation. REMARQUE (POUR MODÈLE CANADIEN SEULEMENT) Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces de remplacement doivent avoir la même désignation. ANY MEASUREMENTS NOT WITHIN THE LIMITS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL SHOCK HAZARD AND MUST BE CORRECTED BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER. 2. PRODUCT SAFETY NOTICE Many electrical and mechanical parts in the appliance have special safety related characteristics. These are often not evident from visual inspection nor the protection afforded by them necessarily can be obtained by using replacement components rated for voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this Service Manual. Electrical components having such features are identified by marking with a on the schematics and on the parts list in this Service Manual. The use of a substitute replacement component which does not have the same safety characteristics as the PIONEER recommended replacement one, shown in the parts list in this Service Manual, may create shock, fire, or other hazards. Product Safety is continuously under review and new instructions are issued from time to time. For the latest information, always consult the current PIONEER Service Manual. A subscription to, or additional copies of, PIONEER Service Manual may be obtained at a nominal charge from PIONEER. 1. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester such as Simpson Model 229-2 or equivalent between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.). Plug the AC line cord of the appliance directly into a 120V AC 60Hz outlet and turn the AC power switch on. Any current measured must not exceed 0.5mA. (FOR USA MODEL ONLY) Leakage current testerReading should not be above 0.5mA Device under test Test all exposed metal surfaces Also test with plug reversed (Using AC adapter plug as required)Earth ground AC Leakage Test
Page 2
3 DV-F727, DV-F07 9 13 2 (1/2) 2 (2/2) Except DV-F727/KU/RC DV-F727 /KC Only 15 6 10 11 7 123 1 14 14 4 5 8 DV-F727 /KC OnlyDV-F727 /KU/RC Only DV-F727/KC Only 16 DV-F727 /KU/RC Only 16 2.1 PACKING (1) PACKING PARTS LIST Mark No. Description Part No. 2. EXPLODED VIEWS AND PARTS LIST NOTES: - Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. - The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. - Screws adjacent to mark on the product are used for disassembly. 1 Protector F See Contrast table (2) 2 Protector R See Contrast table (2) 3 Packing Sheet RHC1023 4 Packing Case See Contrast table (2) 5 Polyethylene Bag B5 VHL1051 6 Operating Instructions (English) See Contrast table (2) 7 Remote Control Unit VXX2629 (CU-DV039) 8 Battery Cover VNK4423 9 Audio Cord (L = 1.5m) VDE1033 Mark No. Description Part No. 10 Video Cord (L = 1.5m) VDE1034 11 Master-Slave Control Cord RDE1023 (L = 0.75m) NSP 12 Dry Cell Battery (R6P, AA) VEM-013 NSP 13 Warranty Card See Contrast table (2) 14 KC Label See Contrast table (2) 15 Operating Instructions (French) See Contrast table (2) 16 Region Label See Contrast table (2) (2) CONTRAST TABLE DV-F727/KU, KC, KU/RC and DV-F07/KU/CA are constructed the same except for the following : Mark No. Symbol and DescriptionPart No. Remarks DV-F727 /KUDV-F727 /KCDV-F727 /KU/RCDV-F07 /KU/CA NSP1 2 4 6 13 14 15 16Protector F Protector R Packing Case Operating Instructions (English) Warranty Card KC Label Operating Instructions (French) Region LabelPHA1325 PHA1326 VHG1840 VRB1237 ARY7023 Not used Not used Not usedPHA1325 PHA1326 VHG1840 VRB1237 ARY7024 VRW1716 VRC1107 Not usedPHA1325 PHA1326 VHG1840 VRB1237 Not used Not used Not used VRW1702PHA1336 PHA1337 VHG1841 VRB1238 ARY1026 Not used Not used Not used
