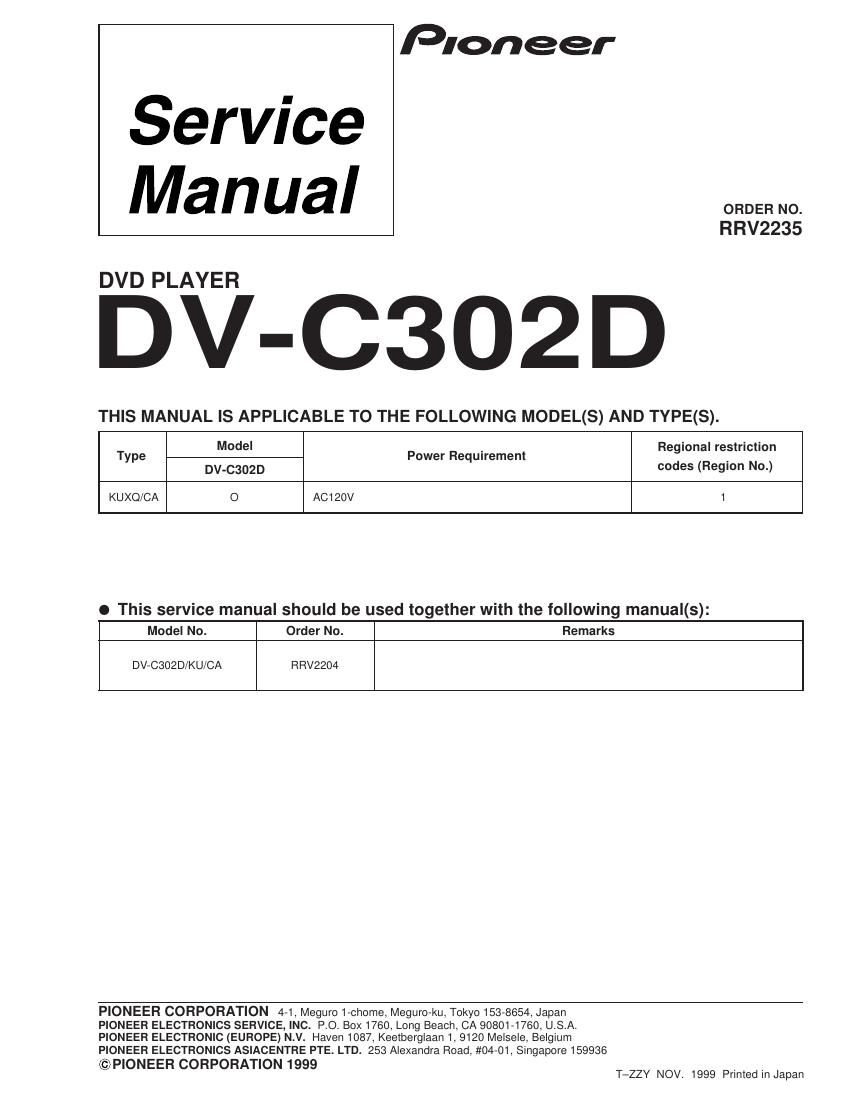

Pioneer dvc 302 d service manual

Page 1

DV-C302D 2 1. CONTRAST OF MISCELLANEOUS PARTS Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 561 473 R50 1R0 5621 560 47k 0.5 1RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 10 1 47 x 10 3 R50 1R0561 473 5.62k RN1/4PC F562 x 10 1 5621 CONTRAST TABLE DV-C302D/KUXQ/CA and DV-C302D/KU/CA are constructed the same except for the following : PACKING P5 - 1 Power Cord ADG7021 ADG7022 P5 - 2 Video Cord (L=1.5m) VDE1034 VDE1055 P5 - 3 Audio Cord (L=1.5m) VDE1033 VDE1054 P5 - 4 NSP Dry Cell Battery (R6P, AA) VEM-013 VEM1010 P5 - 6 Packing Case VHG1820 VHG1862 EXTERIOR SECTION P7 - 12 Rear Panel VNA2104 VNA2147 P7 - 13 NSP Chassis VNA2102 VNA2146 FRONT PANEL SECTION P8 - 5 Front Panel VNK4504 VNK4553 Part No. DV-C302D /KU/CA Ref. No. Symbol and Description Remarks MarkDV-C302D /KUXQ/CA
