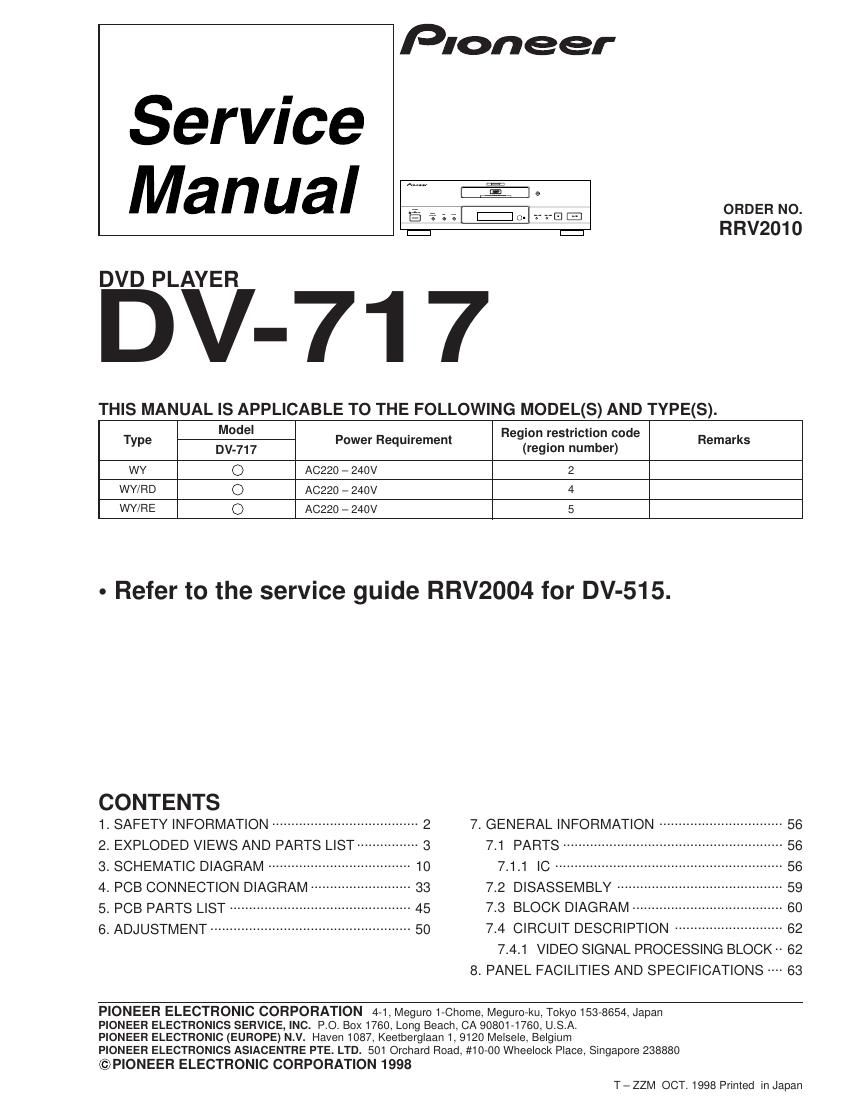

Pioneer

Service
Manual

ORDER NO.
RRV2010
DVD PLAYER
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model . Region restriction code
Type DV-717 Power Requirement (region number) Remarks
WY 0 A0220 - 240v 2
WY/RD O A0220 - 240v 4
WY/RE O A0220 - 240v 5
- Refer to the service guide RRV2004 for DV-515.
CONTENTS
1_ SAFETY INFORMATION ...................................... 2 7 GENERAL lNFORMATION ................................ 56
2. EXPLODED VIEWS AND PARTS LIST ----- 7.1 PARTS ----- -- 56
3_ SCHEMATIC DIAGRAM ............................. 7_11 IC ....... .. 56
4. PCB CONNECTION DIAGRAM 7.2 DISASSEMBLY -------- -- 59
5. PCB PARTS LIST ------------------------ 7.3 BLOCK DIAGRAM -- 60

6. ADJUSTMENT .................................................... 50 7_4 CIRCUIT DESCRIPTION ............................ 62
7.4.1 VIDEO SIGNAL PROCESSING BLOCK " 62
8. PANEL FACILITIES AND SPECIFICATIONS 63

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. BOX 1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Wheelock Place, Singapore 238880

©P|ONEER ELECTRONIC CORPORATION 1998
T-ZZM OCT. 1998 Printed in Japan

Page 2

DV-717

1. SAFETY INFORMATION

This service manual is intended for qualified service technicians ; it is not meant for the casual do-it-
yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained
to properly and safely repair complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.

IMPORTANT
THIS PIONNER APPARATUS CONTAINS
LASER OF CLASS i.
SERVICING OPERATION OF THE APPARATUS
SHOULD BE DONE BY A SPECIALLY
INSTRUCTED PERSON.

7 LASER DIODE CHARACTERISTICS 7
IFOR DVD
MAXIMUM OUTPUT POWER :7 mW
WAVELENGTH : 650 nm
IFOR CD
MAXIMUM OUTPUT POWER :5 mW
WAVELENGTH : 7807785 nm

LABEL CHECK

Additional Laser Caution

1. Inside detection switch ($201 on the SMEB assy) and loading
status detection swnch (8301 on the LOSB assy) are detected
by the microprocessor (ICSOt in the DVDM assy).

' To permit the Iaser diode to osciIIate, it is required to set the
Inside detection SWitch for the inside position (8201 : ON) and to
set the loadingrstatus detection switch for the clamp position (the
center terminaI of 8301 is shorted to +5V). The 650 rim laser
diode for DVD oscillation wiII continue if pin 19 of |C101 is shorted
to +5V (fault condition) in the DVDM assy.

The 780 rim laser diode for CD osciilates if pin 20 of ICtOI is
shorted to +5V in the DVDM assy.

In the test mode * , the laser diode osciilates when microprocesr
sor detects a PLAY signaI. or when the PLAY key is pressed
(8113 ON in the FLKB assy), with the above requirements satisV
Iied.

2. When the cover is open, cIose viewing through the objective lens
With the naked eye wiII cause exposure to the laser beam.

* Refer to the service guide RRV2004.

CLASS I

LASER PRODUCT

(Printed on the Rear Panel)
