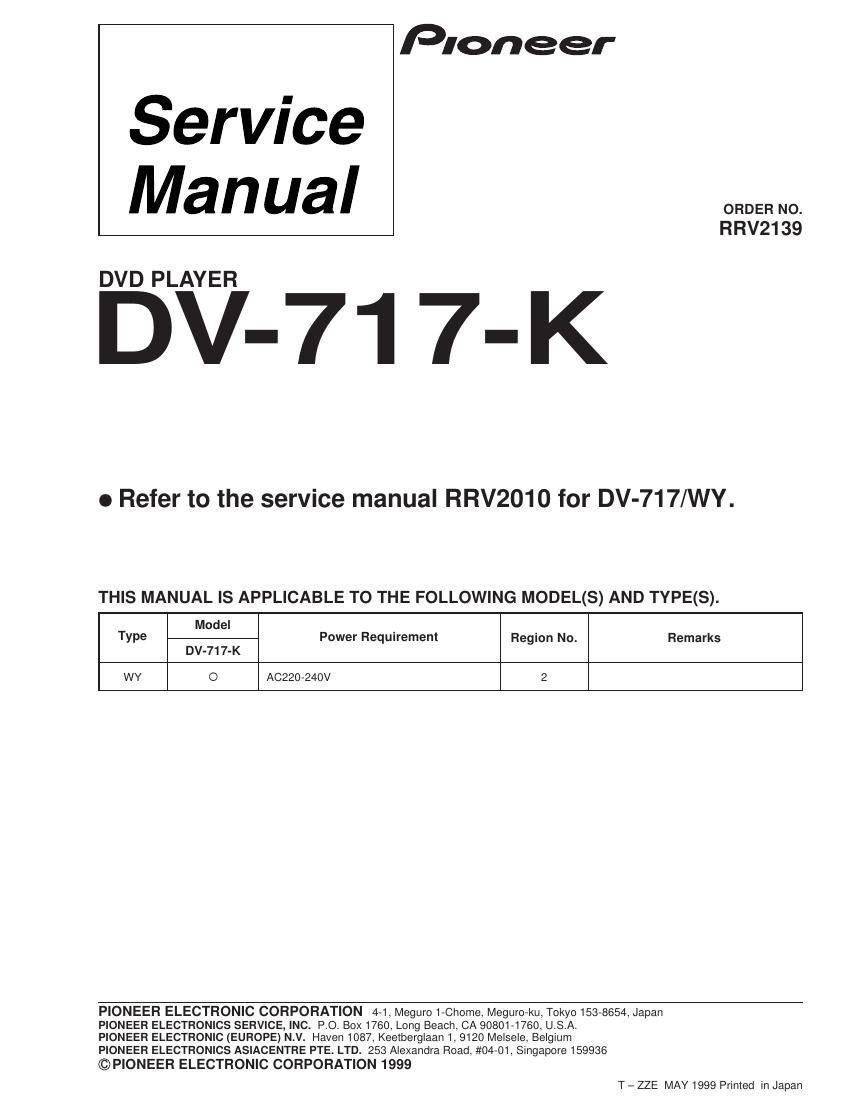

Pioneer dv 717 k service manual

Page 1

DV-717-K 2 1. CONTRAST OF MISCELLANEOUS PARTS NOTES :ÖParts marked by Ò NSP Ó are generally unavailable because they are not in our Master Spare Parts List. ÖThe mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ÖScrew adjacent to ° mark on the product are used for disassembly. ÖReference Nos. indicate the pages and Nos. in the service manual for the base model. PACKING P3 - 8 Remote Control Unit (CU-DV025) VXX2601 Not used P3 - 8 Remote Control Unit (CU-DV054) Not used VXX2654 P3 - 9 Battery Cover VNK4334 VNK4335 P3 -13 Packing Case VHG1779 VHG1815 P3 -15 Region Label P2 VRW1701 Not used EXTERIOR SECTION P4 - 2 DVD Plate VAM1077 VAM1076 P4 - 3 Door Panel VNK4324 VNK4511 P4 - 5 Door Holder VNK4325 VNK4509 P4 -11 Tray VNK4333 VNL1731 P4 -15 Bonnet Case S VXX2617 VXX2655 P4 -17 Screw BCZ40P060FNI BCZ40P060FZK P4 -22 Power Botton VNK4159 VNK4184 FRONT PANEL SECTION P5 - 1 FL Lens VEC2007 VEC2071 P5 - 2 Front Almi VAH1298 VAH1321 P5 - 3 Name Plate PAN1377 PAN1376 P5 - 7 Panel Base VNK4323 VNK4510 P5 - 8 Main Key VNK4095 VNK4096 BOTTOM SECTION P6 -17 Rear Panel VNA1996 VNA2090 Ref. No.Remarks DV-717/WY DV-717-K/WYPart No. Mark Symbol and Description 7 CONTRAST TABLE DV-717-K/WY and DV-717/WY are constructed the same except for the following:
