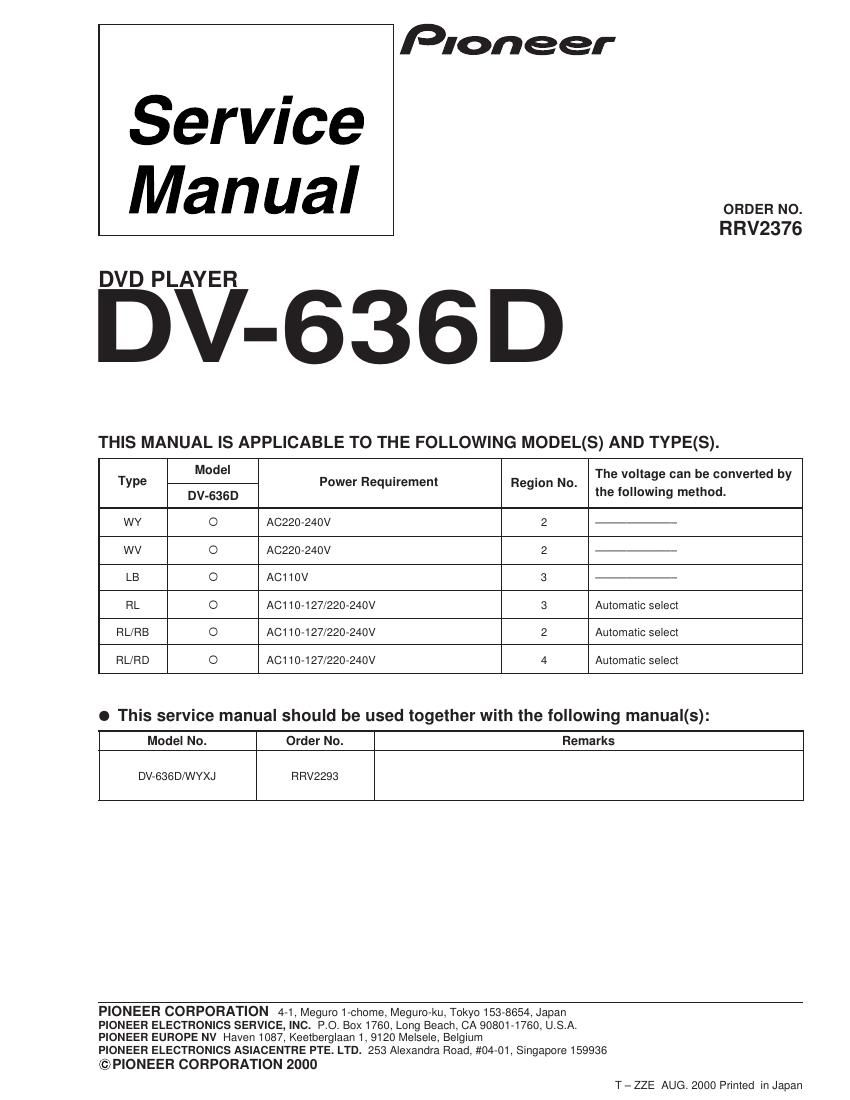

Pioneer dv 636 d service manual
This is the 5 pages manual for pioneer dv 636 d service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer dv 636 d service manual (Ocr-read)
Page 1
DV-636D 2 7 CONTRAST TABLE for WY TYPE DV-636D/WY and WYXJ are constructed the same except for the following: PACKING P5 - 1 Audio Cord VDE1052 VDE1033 P5 - 2 Video Cord VDE1053 VDE1034 P5 - 7 Packing Case VHG1936 VHG2009 EXTERIOR SECTION P7 - 6 Tray VNK4570 VNL1731 FRONT PANEL SECTION P9 -16 Flexible Cable (15P) VDA1807 VDA1728 BOTTOM VIEW SECTION P11 -10 Flexible Cable (26P) VDA1742 VDA1689 P11 -11 Flexible Cable (29P) VDA1805 VDA1726 P11 -12 Flexible Cable (15P) VDA1806 VDA1727 P11 -13 Flexible Cable (12P) VDA1749 VDA1692 P11 -14 Flexible Cable (07P) VDA1808 VDA1739 P11 -17 Rear Panel VNA2209 VNA2267 LOADING MECHANISM ASSY P12 - 6 Loading Base VNL1854 VNL1844 P12 -15 Connector Assy VKP2218 VKP2198 P12 -21 Flexible Cable (24P) VDA1748 VDA1701 Ref. No.Remarks WYXJ type WY typePart No. Mark Symbol and Description 1. CONTRAST OF MISCELLANEOUS PARTS NOTES :ÖParts marked by Ò NSP Ó are generally unavailable because they are not in our Master Spare Parts List. ÖThe mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ÖScrew adjacent to ° mark on the product are used for disassembly. ÖReference Nos. indicate the pages and Nos. in the service manual for the base model.
Page 2
DV-636D 3 7 CONTRAST TABLE for WV TYPE DV-636D/WV and WVXJ are constructed the same except for the following: PACKING P5 - 1 Audio Cord VDE1052 VDE1033 P5 - 2 Video Cord VDE1053 VDE1034 P5 - 7 Packing Case VHG1939 VHG2008 EXTERIOR SECTION P7 - 6 Tray VNK4570 VNL1731 FRONT PANEL SECTION P9 -16 Flexible Cable (15P) VDA1807 VDA1728 BOTTOM VIEW SECTION P11 -10 Flexible Cable (26P) VDA1742 VDA1689 P11 -11 Flexible Cable (29P) VDA1805 VDA1726 P11 -12 Flexible Cable (15P) VDA1806 VDA1727 P11 -13 Flexible Cable (12P) VDA1749 VDA1692 P11 -14 Flexible Cable (07P) VDA1808 VDA1739 P11 -17 Rear Panel VNA2209 VNA2267 LOADING MECHANISM ASSY P12 - 6 Loading Base VNL1854 VNL1844 P12 -15 Connector Assy VKP2218 VKP2198 P12 -21 Flexible Cable (24P) VDA1748 VDA1701 Ref. No.Remarks WVXJ type WV typePart No. Mark Symbol and Description 7 CONTRAST TABLE for LB TYPE DV-636D/LB and LBXJ are constructed the same except for the following: PACKING P5 - 1 Audio Cord VDE1052 VDE1033 P5 - 2 Video Cord VDE1053 VDE1034 P5 - 7 Packing Case VHG1942 VHG2004 P5 -18 Power Cord ADG7042 ADG7006 EXTERIOR SECTION P7 - 6 Tray VNK4569 VNK4333 FRONT PANEL SECTION P9 -16 Flexible Cable (15P) VDA1807 VDA1728 BOTTOM VIEW SECTION P11 -10 Flexible Cable (26P) VDA1742 VDA1689 P11 -11 Flexible Cable (29P) VDA1805 VDA1726 P11 -12 Flexible Cable (15P) VDA1806 VDA1727 P11 -13 Flexible Cable (12P) VDA1749 VDA1692 P11 -17 Rear Panel VNA2214 VNA2263 LOADING MECHANISM ASSY P12 - 6 Loading Base VNL1854 VNL1844 P12 -15 Connector Assy VKP2218 VKP2198 P12 -21 Flexible Cable (24P) VDA1748 VDA1701 Ref. No.Remarks LBXJ type LB typePart No. Mark Symbol and Description
