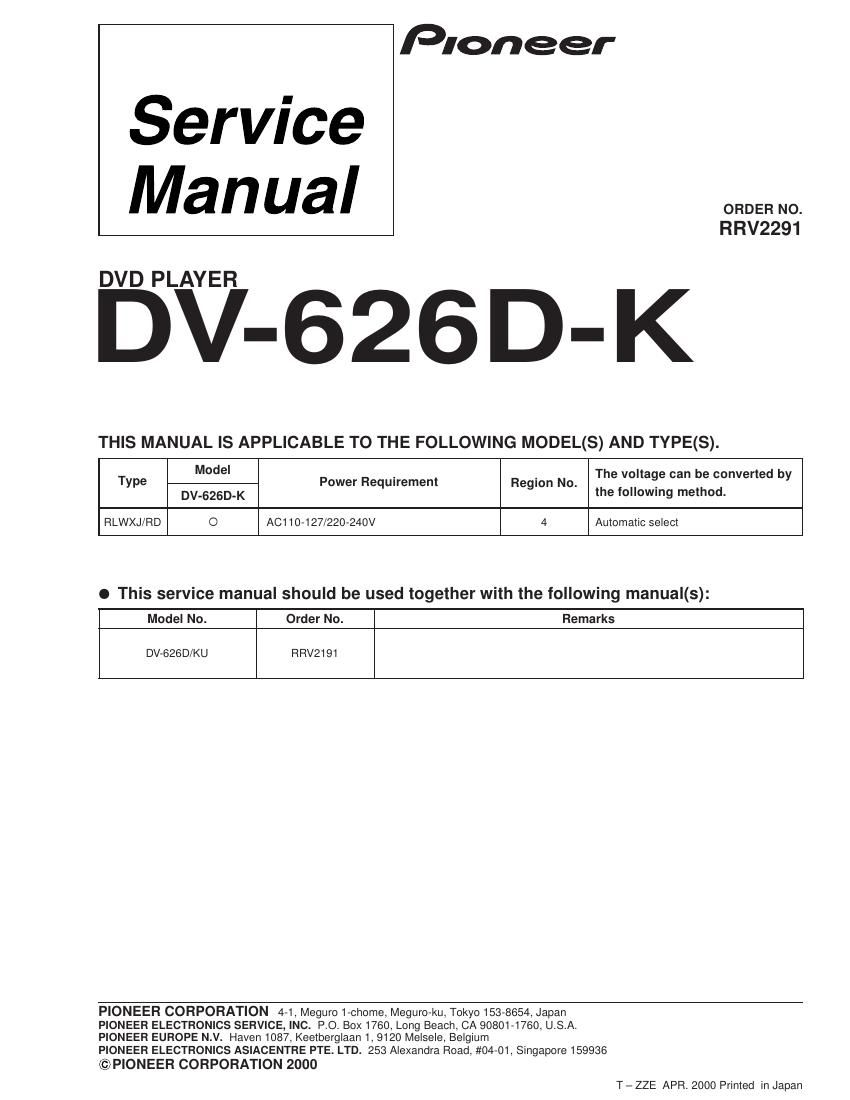

Pioneer dv 626 d service manual

This is the 4 pages manual for pioneer dv 626 d service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 4
pioneer dv 626 d service manual

Extracted text from pioneer dv 626 d service manual (Ocr-read)

Page 1

DV-626D-K 2 7 CONTRAST TABLE DV-626D-K/RLWXJ/RD and DV-626D/KU are constructed the same except for the following: PCB ASSEMBLIES NSP JCKB ASSY Not used VWM1937 P9 - 2 JCKB ASSY VWV1682 VWV1683 P9 - 3 NSP MSWB ASSY Not used VWG2073*1 NSP FLKB ASSY VWM1931 VWM1933 P7 - 1 FLKY ASSY VWG2089 VWG2091 P7 - 2 NSP PWSB ASSY VWG2094 VWG2096 P9 - 4 POWER SUPPLY ASSY VWR1316 VWR1314*1 PACKING P5 - 1 Audio Cord VDE1033 VDE1052 P5 - 2 Video Cord VDE1034 VDE1053 P5 - 7 Packing Case VHG1825 VHG1952 P5 -10 NSP Warranty Card ARY7045 Not used P5 -18 Power Cord ADG7021 ADG1154 P5 -23 NSP Label VRW1629 Not used EXTERIOR SECTION P6 - 4 Power Botton Not used VNK4184 P6 - 5 PW Botton Joint Not used VNK4179 P6 - 6 Tray VNL1731 VNK4570 P6 -17 65 Label ARW7050 Not used FRONT PANEL SECTION P7 - 5 Front Panel VNK4460 VNK4678 P7 - 8 PW Button (POWER) VNK4101 Not used P7 -11 LED Lens Not used PNW2019 P7 -16 Flexible Cable (15P) VDA1728 VDA1807 NSP Getter Not used VRW1779 Ref. No.Remarks DV-626D/KU DV-626D-K/RLWXJ/RDPart No. Mark Symbol and Description 1. CONTRAST OF MISCELLANEOUS PARTS NOTES :ÖParts marked by Ò NSP Ó are generally unavailable because they are not in our Master Spare Parts List. ÖThe mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ÖReference Nos. indicate the pages and Nos. in the service manual for the base model. ÖWhen ordering resistors, first convert resistance values into code form as shown in the following examples. Ex. 1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J = 5%, and K = 10%). 560 W = 56 ´ 10 1 = 561 ...................................................RD1/4PU 5 6 1 J 47k W = 47 ´ 10 3 = 473 ..................................................RD1/4PU 4 7 3 J 0.5 W = R50 ......................................................................RN2H å 5 0 K 1 W = 1R0 ......................................................................... RS1P 1 å 0 K Ex. 2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k W = 562 ´ 10 1 = 5621...........................................RN1/4PC 5 6 2 1 F

Page 2

DV-626D-K 3 BOTTOM VIEW SECTION P9 - 9 Flexible Cable (12P) VDA1692 VDA1749 P9 -10 Flexible Cable (26P) VDA1689 VDA1742 P9 -11 Flexible Cable (29P) VDA1726 VDA1805 P9 -12 Flexible Cable (15P) VDA1727 VDA1806 P9 -16 NSP Base Chassis VNA2064 VNA2091 P9 -17 Rear Panel VNA2065 VNA2219 P9 -24 NSP PC Support Not used VEC1584 P9 -25 NSP Label VRW1629 Not used LOADING MECHANISM ASSY P10 - 6 Loading Base VNL1844 VNL1854 P10 -15 Connector Assy VKP2198 VKP2218 P10 -21 Flexible Cable (24P) VDA1701 VDA1748 Ref. No.Remarks DV-626D/KU DV-626D-K/RLWXJ/RDPart No. Mark Symbol and Description *1: These assemblies are used for DV-626D/WY. Refer to the service manual RRV2191. 7 CONTRAST OF PCB ASSEMBLIES S801 Not used VSH1020 *1 C324, C334 VCH1193 CEBA101M25 (100mF/25V) C422, C433, C460 VCH1192 CEAT101M10 (100mF/10V) C627, C630 CEHAZA101M25 Not used R881 Not used RS1/10S103J *1 R882 Not used RS1/10S153J *1 R884 RS1/10S682J Not used R885 Not used RS1/10S682J *1 KN102 EARTH METAL FITTING VNF1084 Not used PC BOARD JCKB VNP1707 Not used Mark Symbol and DescriptionPart No. VWV1682 VWV1683Remarks JCKB ASSY VWV1683 and VWV1682 are constructed the same except for the following: *1: These parts are used for DV-626D/WY. Refer to the service manual RRV2191. C123 Not used CEJA220M6R3 *1 R141 RS1/10S622J RS1/10S273J R143 RS1/10S363J RS1/10S683J R144 RS1/10S0R0J Not used R145, R146 Not used RS1/10S0R0J *1 FL HOLDER VNF1087 VNF1096 *1 Mark Symbol and DescriptionPart No. VWG2089 VWG2091Remarks FLKY ASSY VWG2091 and VWG2089 are constructed the same except for the following: *1: These parts are used for DV-626D/WY. Refer to the service manual RRV2191.
