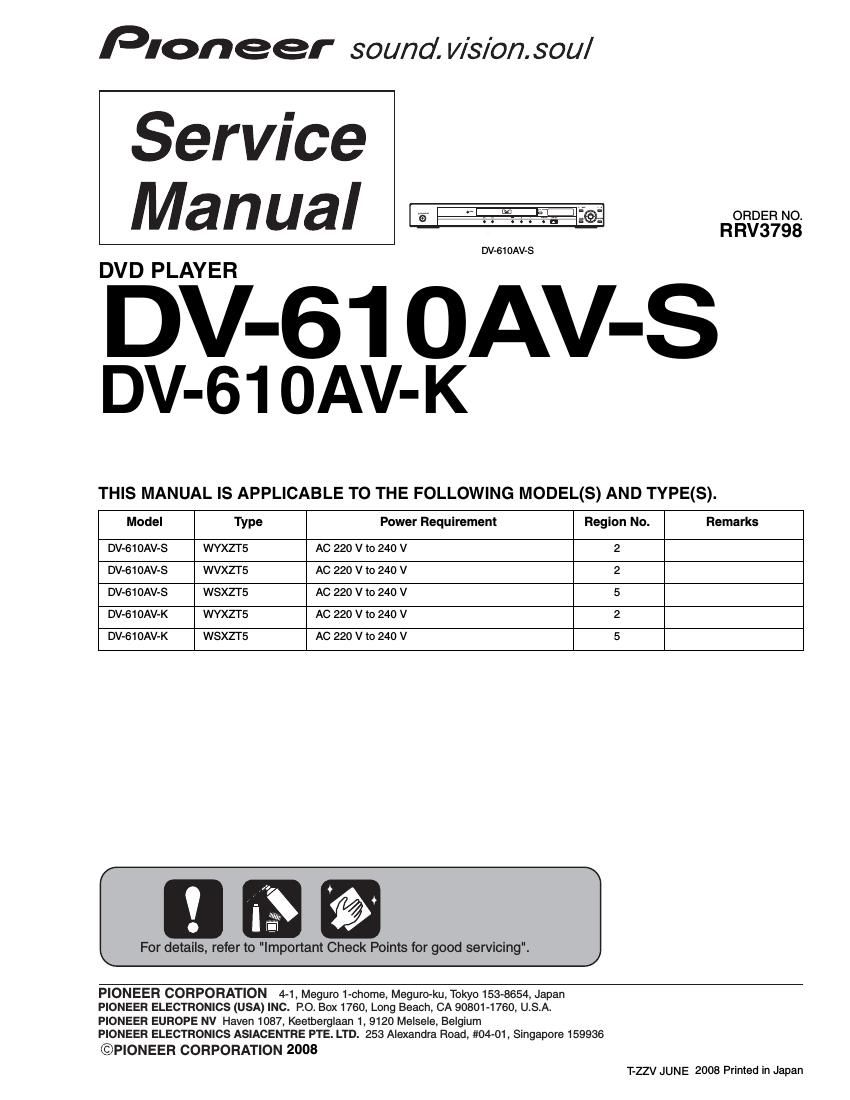

Page 1

Pioneer sound. vision. soul

Service
Manual

ORDER NO.
R RV3798
DV-61OAV-S
DVD PLAYER
DV- 6 1 0 AV-K
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model Type Power Requirement Region No. Remarks
DV-61OAV-S WYXZTS AC 220 V to 240 V 2
DV-61OAV-S WVXZT5 AC 220 V I0 240 V 2
DV-61OAV-S WSXZTS AC 220 V to 240 V 5
DV-61OAV-K WYXZT5 AC 220 V to 240 V 2
DV-610AV-K WSXZTS AC 220 V In 240 V 5

For details, refer to "Important Check Points for good servicing".

PIONEER CORPORATION 4-1, Meguro1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. PO. BOX 1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER EUROPE NV Haven 1087, Keeiberglaan 1, 9120 Meisele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

CPIONEER CORPORATION 2008

T-ZZV JUNE 2008 Printed in Japan

Page 2

SAFETY INFORMATION

This service manual is intended for qualified service technicians ; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trainedto properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely,
you should not risk trying to do so and refer the repair to a qualified service technician.

WARNING !

THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS1
BUT THE LASER COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR
CLASS 1.

A SPECIALLY INSTRUCTED PERSON SHOULD DO SERVICING OPERATION OF THE APPARATUS.

LASER DIODE CHARACTERISTICS
FOR DVD: MAXIMUM OUTPUT POWER : 5 mW
WAVELENGTH : 650 nm
FOR CD: MAXIMUM OUTPUT POWER :5 mW

WAVELENGTH : 780 nm

LABEL CHECK

Location: inside of the unit

CAUTOII : CLASS 1M LASER RADlATlDN WHEN OPEN DO NOT VIEW DlRECTLV WlTH OPHCAL lNSTRUMENTS 7253"""5"
VUISICM . : KLASSE IM LASER Slrahlung Bel gedllnelem Ger'al nlclll mil nptlschen Geralen m den Laserslrahl bllcken

PRECAUUON . RADlAClON LASER CLASE 1M, AL ABRlR N0 MlRAR DIRECTAMENTE CON lNSTRUMENTOlS OFTlCOS _

ViKTiGI . KLASS 1M LASER STRALNWG. NAR APPARATEN AR OWEN. TlTlA WTE RAKT W l DEM. SPEClELLT WTE UM DU HAK GLASDGUN PA DlG

Vamitus : Lunkka W n lasersatelly Ala koskaan kalso lzltteen slsaap sen ullessa aukrel myoskaan sllmalaselllale mullla nptlsllla mew
ADVARSEL ; LASERSTRALER mssr Wl mt m mm mm l APPARATET. NAR um ER mm lSrER lKKE MED mm ELLEK ANDRE flPTlSKE 05mm

Additional Laser Caution

1 .
C LASS 1 - Laser diode is driving with 0230302305650 nm LD) and Q2302,
LAS E R P R O D U CT 02304030 nm LD)on the DVD MT PCB Assy.
Therefore. when short-circuit between the emitter and collector of these
transistors or the base voltage is supplied for transistors turn on, the
laser oscillates. (failure mode)
- In the test mode * , there is the mode that the laser oscillates except
for the disc judgment and playback. LD 0N mode in the test mode
oscillates with the laser forcibly.

(Printed on the Rear Panel)

2. When the cover is open, close viewing through the objective lens with
the naked eye will cause exposure to the laser beam.

* : See page 27.

2 DV-61 OAVvS

1 - 2 - 3 - 4
