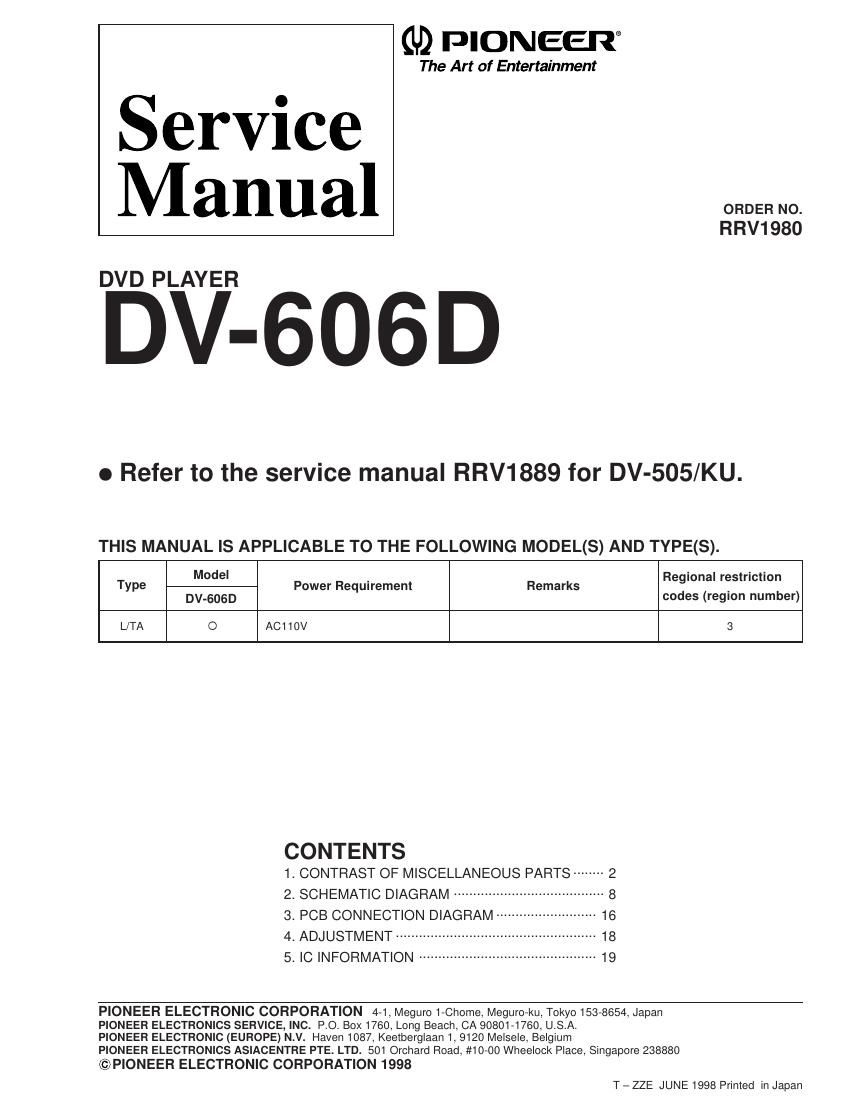

Page 1

(U) PIONEER®

The Art of Entertainment

Service
Manual

RRV1980

DVDPLAYER

DV-606D

0 Refer to the service manual RRV1889 for DV-505/KU.

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Model . . _
TYPe Power Requirement Remarks Regional restrlctlon
DV-606D codes (region number)
L/TA O AC110V 3

CONTENTS

1. CONTRAST OF MISCELLANEOUS PARTS -------- 2
2_ SCHEMATIC DIAGRAM ....................................... 8
3. PCB CONNECTION DIAGRAM .......................... 16
4_ ADJUSTMENT .................................................... 13
5. IC INFORMATION .............................................. 19

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. BOX1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melse1e, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Wheelock Place, Singapore 238880
©PIONEER ELECTRONIC CORPORATION 1998

T -ZZE JUNE 1998 Printed in Japan

Page 2

DV-606D

1. CONTRAST OF MISCELLANEOUS PARTS

NOTES .'

0 Parts marked by NSP " are generally unavailable because they are not in our Master Spare Parts List.

0 The A mark found on some component parts indicates the importance of the safety factor of the port.
Therefore, when replacing, be sure to use parts of identical designation.
0 Reference Nos. indicate the pages and Nos. in the service manualfor the base model.

0 When ordering resistors, first convert resistance values into code form as shown in the following examples.

Ex. 1

Ex. 2

When there are 2 eflective digits (any digit apartfrom 0), such as 560 ohm and 47k ohm ( tolerance is shown by

J: 5%,andK=10%).

560(2-56X10->561.
47kQ-> 47><103-> 473
0.5 Q -> R50
1 (2 -> 1R0
When there are 3 eflective dig

5.62k Q -> 562 X 10 -> 5621

l CONTRAST TABLE
DV-606D/L/TA and DV-505/KU are constructed the same except for the following:

.. RD]/4PU E m J
RD]/4PU E E E J
RNZH El @ K
RSIP m E @ K

n high prec ion metal film resistors).

.................................... RN1/4PC E E E F

Ref. _ _ Part No.
No. Mark Symbol and Description Remarks
DV-505/KU DV-606D/L/TA

PCB ASSEMBLIES
FLKY Assy VWM1789 VWM1793

P5 - 1 FLKB Assy VWG1873 VWG1877

P5 - 2 NSP PWSB Assy VWG1879 VW61939

P6 - 2 DVDM Assy VWS1326 VWSI327

P6 - 3 AVJB Assy VWV1572 VWV1606
PACKING

P3 - 1 fl Power Cord ADG1126 ADG7002

P3 - 3 NSP Warranty Card ARY1044 Not used

P3 - 6 NSP Dry Cell Battery (RGP, AA) VEM-O13 Not used

P3 - 6 NSP Dry Cell Battery (R03, AAA) Not used VEM-022

P3 - 7 Operating Instructions (English) VRB1183 Not used
Operating Instructions Not used VR01073 No.1
(Trad. Chinese Language)

P3 - 9 Remote Control Unit (CU-DVOOB) VXX2540 Not used

P3 -12 Battery Cover VNK3703 Not used
Remote Control Unit (CU-DV019) Not used VXX2572 No.2
Battery Cover Not used VNK3684 No.3
Upper Cover Not used VNK3685 No.4

P3 -15 Packing Case VHG1716 VHGI760
Remote Control Holder Not used VH01044 No.5
EXTERIOR SECTION

P4 -18 65 Label ORW1069 Not used
FRONT PANEL SECTION

P5 - 4 Front Panel VNK4091 VNK4290

P5 - 5 FL Lens VNK4149 VEC1985
Display Button Not used VNK3649 No.6
Button Not used VNK4287 No.7

NSP DTS Label Not used VRW1732 No.8

Earth Plate Not used VNE2085 No.9
