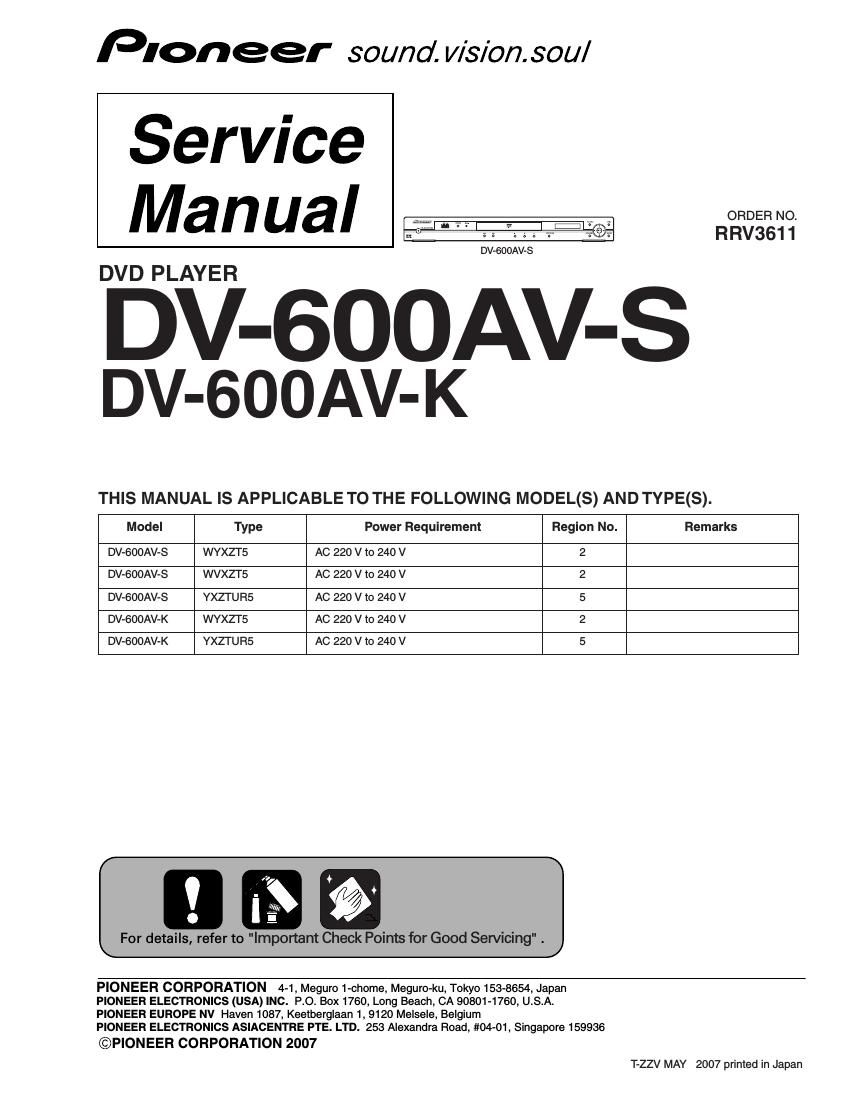

Pioneer sound. vision. soul

Service
Manual

ORDER NO.
R RV361 1
vasooxwrs
DVD PLAYER
DV'6 0 DM-
DV- 6 0 0 AV-K
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model Type Power Requirement Region No. Remarks
DV-SOOAV-S WYXZTS AC 220 V to 240 V 2
DV-GOOAV-S WVXZT5 AC 220 V to 240 V 2
DV-SOOAV-S YXZTUR5 AC 220 V to 240 V 5
DV-SOOAV-K WYXZT5 AC 220 V to 240 V 2
DV-SOOAV-K YXZTUR5 AC 220 V to 240 V 5

For details, refer to Important Check Points for Good Servicing" .

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. BOX 1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER EUROPE NV Haven 1087, Keeiberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

©PIONEER CORPORATION 2007

T-ZZV MAY 2007 printed in Japan

Page 2

SAFETY INFORMATION

This service manual is intended for qualified service technicians ; it is not meant for the casual do-
it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trainedto properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and
may void the warranty. If you are not qualified to perform the repair of this product properly and
safely, you should not risk trying to do so and refer the repair to a qualified service technician.

WARNING !

THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1
BUT THE LASER COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR
CLASS 1.

A SPECIALLY INSTRUCTED PERSON SHOULD DO SERVICING OPERATION OF THE APPARATUS.

LASER DIODE CHARACTERISTICS -

FOR DVD: MAXIMUM OUTPUT POWER : 5 mW
WAVELENGTH : 650 nm

FOR CD: MAXIMUM OUTPUT POWER : 5 mW
WAVELENGTH : 780 nm

LABEL CHECK

Location: inside of the unit

CAUTlON CLASS Wl LASER RADlATlON WHEN OPEN DO NOT VlEW DlRECTLV WlTH OPTlCAL lNSTRUMENTS. 716mm SH
Vnrslcm , KLASSE 1M LASER suamung Bel geallnetem Gerat mom mil upllschen Geraten in den Laserstrahl himken

PRECAUCloN RADIACIUN LASER gLASE 1M. AL ABRlR N0 MlRAR DlREcrAMENrE CUN lNSTRUMENTOlS UPTlCDS .
VlKTIGT KLAss 1M LASER srRALNws NAR APPARATEN AR UPPEN.TlTlA er RAKT w l DEN SPEElELLT er UM DU RAR emsoenm RA me
Varonusl Lvnkka lMJl lasersatelly. Ala kaskaan Aatso laitteen sisaa'p sen ollessa auArel myoskaan sllmalasellla tai mullla npusrua larttellla!
ADVARSEL LASERSTRALER KLASSE 1M KlG lKKE DlREKTE lND lAPPARATET. NAR DETlE ER ABENT lSrER lKKE MED ERlLLER ELLER ANDRE OPllSKE DEJEKTER

Additional Laser Caution

1.
C LASS 1 - Laser diode is driving with 02303.02305(650nm LD) and 02302,
LAS E R P R O D U CT 02304(780nm LD)on the DVD MT PCB Assy.
Therefore, when shortvcircuit between the emitter and collector of these
transistors or the base voltage is supplied for transistors turn on, the
laser oscillates. (failure mode)
0 In the test mode 9r , there is the mode that the laser oscillates except
for the disc judgment and playback. LD ON mode in the test mode
oscillates with the laser forcibly.

(Printed on the Rear Panel)

2. When the cover is open, close viewing through the objective lens with
the naked eye will cause exposure to the laser beam.

tr : See page 29.

2 DV-600AV-S
