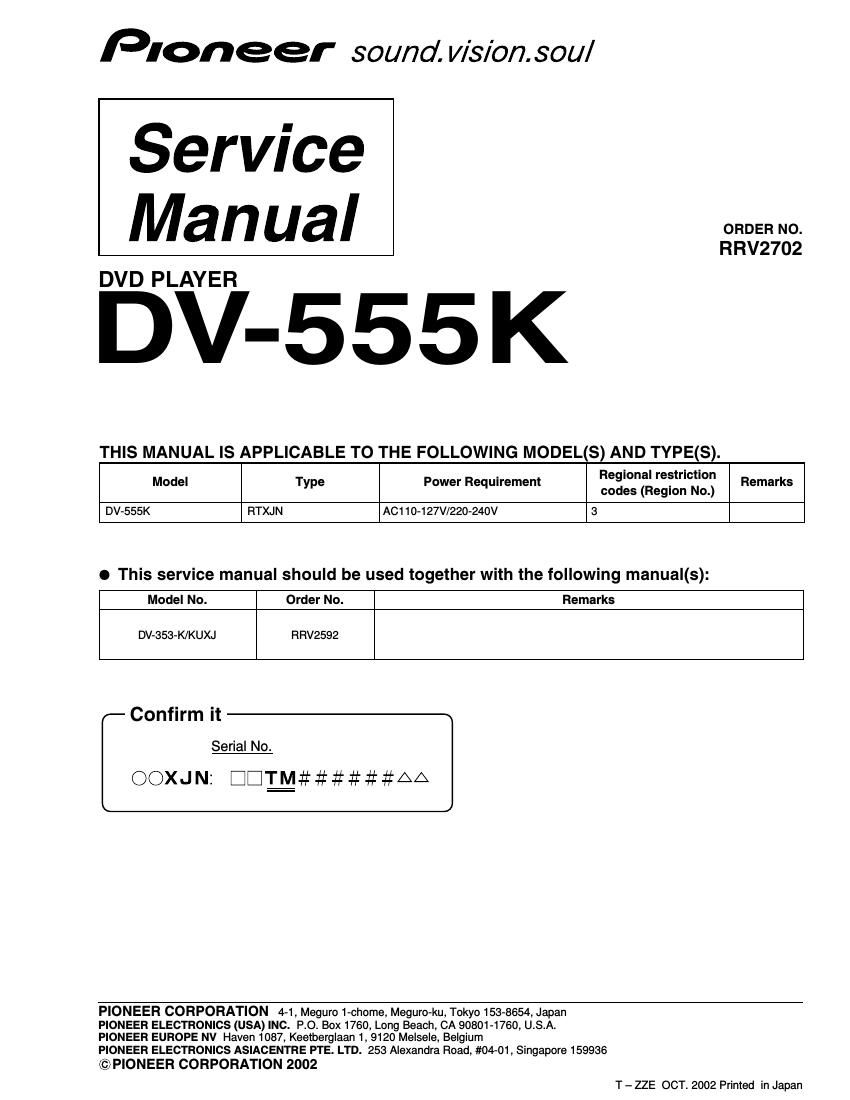

Page 1

Pioneer sound. vision. soul

Service
Manual

DVD PLAYER

DV-555K

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

ORDER NO.
RRV2702

Model Type

Power Requirement

Regional restriction
codes (Region No.)

Remarks

DV-555K RTXJN

AC110-127V/220-240V

3

0 This service manual should be used together with the following manual(s):

Model No. Order No. Remarks
DV-353-K/KUXJ RRV2592
Confirm it

w

OOXJN: DDT=M######AA

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS (USA) INC. PO. Box 1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

© PIONEER CORPORATION 2002

T-ZZE OCT. 2002 Printed in Japan

Page 2

1. CONTRAST OF MISCELLANEOUS PARTS

NOTES .' 0 Parts marked by NSP " are generally unavailable because they are not in our Master Spare Parts List.
0 The A mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
0 Reference Nos. indicate the pages and Nos. in the service manual for the base model.
0 When ordering resistors, first convert resistance values into code form as shown in thefollowing examples.

Ex. 1 When there are 2 effective digits (any digit apartfrom 0), such as 560 ohm and 47k ohm (tolerance is shown by
J = 5%, andK = 10%).
5600*56X10->561. RDl/4PU- J
47kQ->47><103->473 RD1/4PUE
0.5Q->R50 .. RN2H®-@K
lQ->1R0... ...RSIPmEIEK

Ex. 2 When there are 3 effective digits (such as in high prec . ion metalfilm resistors).
5.62kQ->562><10->5621 .................................... RNI/4PCEEIEF

l CONTRAST TABLE
DV-555K/RTXJN and DV-353-K/KUXJ are constructed the same except for the following:

Ref Part No.
N Mark Symbol and Description Remarks
0' DV-353-K/KUXJ DV-555K/RTXJN
PCB ASSEMBLY
P11 - 1 NSP 1..LOAB ASSY VWG2346 VWG2279
P9 - 3 1..FJMB ASSY VWS1515 VW81525
1..KMJB ASSY Not used VWM2124
NSP 2..MJKB ASSY Not used VWV1904 No. 1
NSP 2..KRAB ASSY Not used VWV1905 No.
P9 - 7 & 1..POWER SUPPLY Unit VWR1351 VWR1352
(or vwn1353) (or vwn1354)
(or VWR1363) (or VWR1364)
PACKING
P7 - 1 Q Power Cable ADG7022 ADG1154
P7 - 2 NSP Warranty Card ARY7057 Not used
P7 - 5 Operating Instructions (English) VRBtzBS Not used
P7 - 7 Remote Control VXX2800 VXX2808
P7 - 9 Pad L VHA1295 VHA1309
P7 -10 Pad R VHA1296 VHA1310
P7 -11 Paper Board VH01088 VHCi 097
P7 -12 Packing Case VHG2237 VHG2322
P7 -14 Battery Cover VNK4997 VNK4998
Operating Instructions (Thai) Not used VRCI156
EXTERIOR SECTION
P9 -12 NSP Base Chassis VNA2409 VNA2501
P9 -13 Rear Panel VNA2421 VNA2561
P9 -15 DVD V Plate VAM1121 VAM1120
P9 -18 Tray Panel VNK4952 Not used
P9 -18 Tray Panel Assy Not used VXA2505
P9 -19 Front Panel Assy VXA2486 VXA2550
P9 -20 Pioneer Badge XAM3006 VAM1129
P9 -21 NSP Energy Star Label AAX7876 Not used
P9 -25 Screw BCZ40P060FZK BCZ40P060FN|
P9 -26 Bonnet Case 8 VXX2821 VXX2822
Flexible Cable (08P) Not used VDA1894 No. 3
Flexible Cable (20F) Not used VDA1896 No. 4
PCB Spacer Not used AECt 372 No. 5
Sheild Barrier Not used VECZ324 No. 6
Jack Holder Not used VNE2268 No. 7
HeadPhone Knob Not used VNK4901 No. 8
Ring Not used VNK4996 No. 9
Caution Label Not used VRW1872 for Bonnet
Thai Label Not used VRW1950 for Rear Panel
LOADING MECHANISM ASSY
P11 -23 Tray VNL1920 VNL1950

o The numbers in the remarks column correspond to the numbers on the EXPLODED VIEWS".
0 For PCB assemblies, Refer to CONTRAST OF PCB ASSEMBLIES", PCB PARTS LIST", 2. SCHEMATIC DIAGRAM and 3. PCB CONNECTION
DIAGRAM".

2 DV-555K
-

2 3
