Pioneer dv 535 service manual
This is the 18 pages manual for pioneer dv 535 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer dv 535 service manual (Ocr-read)
Page 1

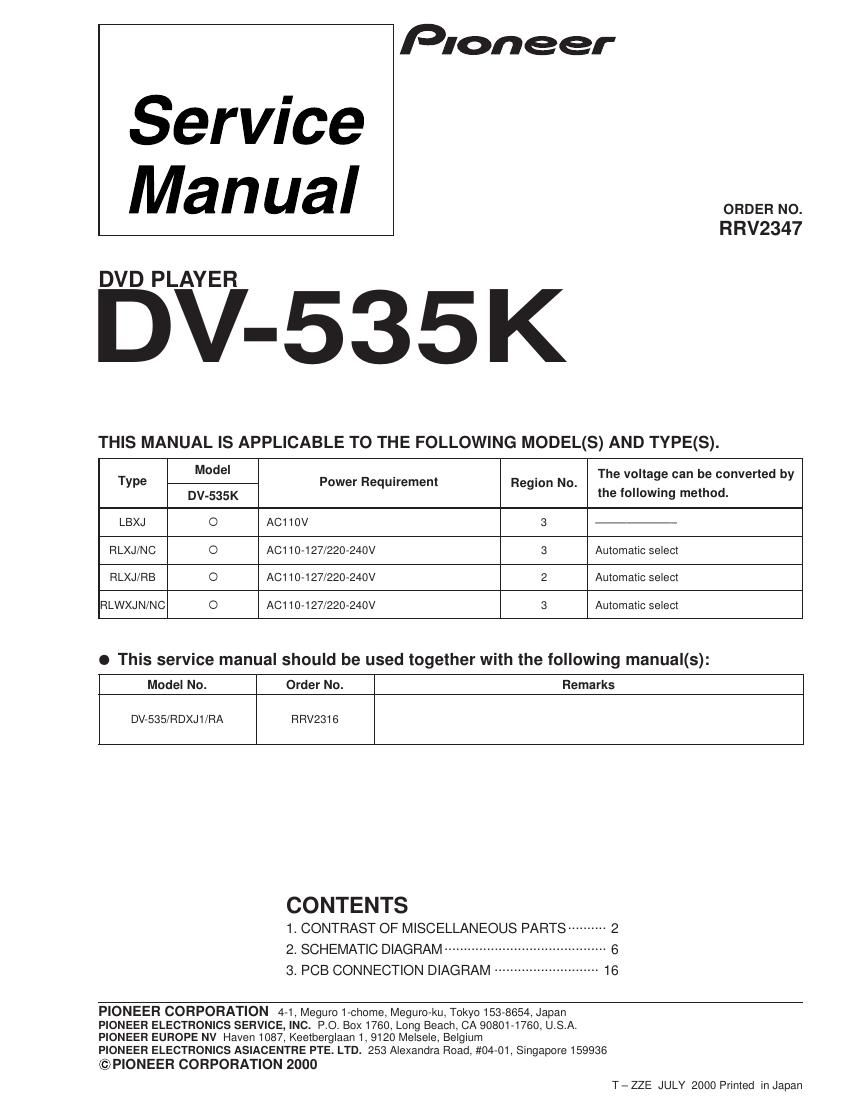

Service
Manual
DVD
PLAYER
Pioneer
ORDER NO.
RRV2347
DV-535K
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Type Model Power Requirement Region No. The voltage can be converted by
DV-535K the followtng method.
LBXJ o AC110V 3
FILXJ/NC O AC110-127/220-240V 3 Automatic select
FlLXJ/RB O AC110-127/220-240V 2 Automatic select
RLWXJN/NC O AC110-127/220-24OV 3 Automatic select
I This service manual should be used together with the following manual(s):
2, SCHEMATIC DIAGRAM-
3, PCB CONNECTION DIAGRAM -
Model No. Order No. Remarks
DV-535/RDXJ1/FIA RRV2316
CONTENTS
1. CONTRAST OF MISCELLANEOUS PARTS ---------- 2
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. BOX 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
©PIONEER CORPORATION 2000
T - ZZE JULY 2000 Printed in Japan
