Pioneer dv 5300 kd service manual

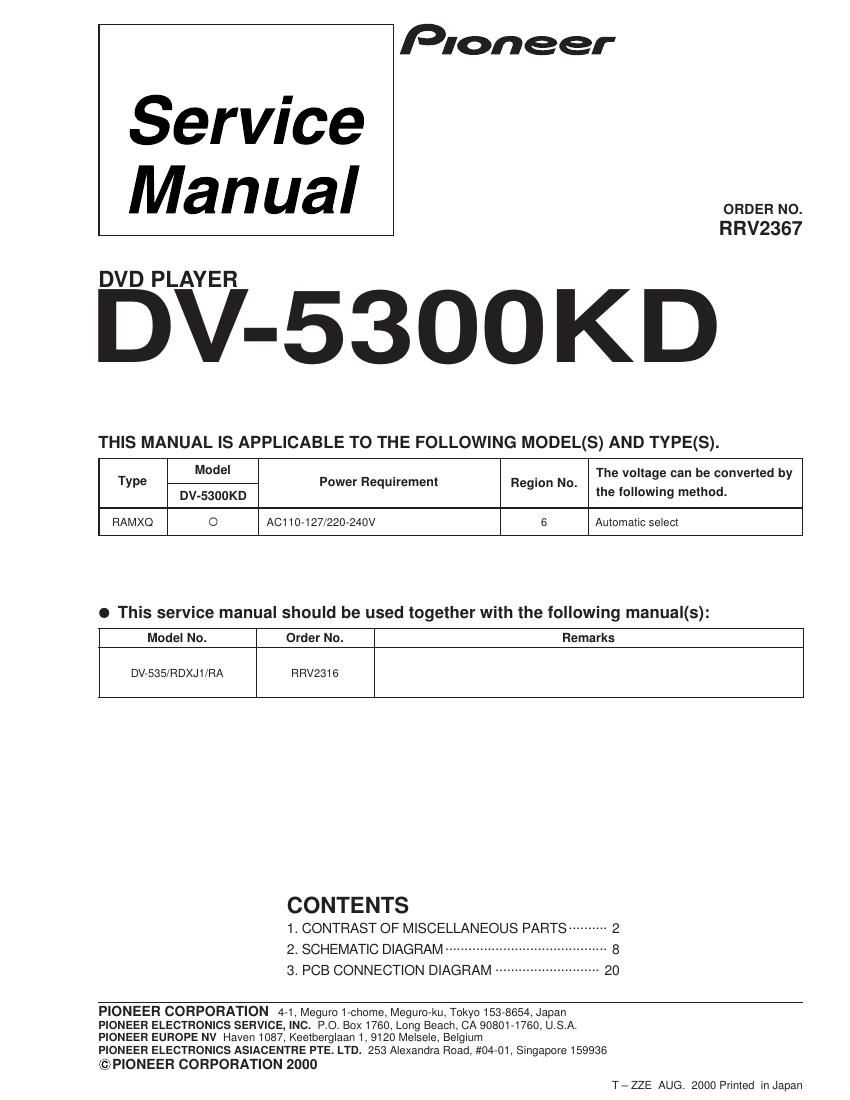

Page 1

Service
Manual

DVDPLAYER

Pioneer

ORDER NO.
RRV2367

DV-5300KD

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Model _ _ The voltage can be converted by
Type Power Reqmrement Region No. .
DV-5300KD the followmg method.
FlAMXQ o AC1 10-127/220-240v 6 Automatic select

o This service manual should be used together with the following manual(s):

3. PCB CONNECTION DIAGRAM

Model No. Order No. Remarks
DV-535/RDXJ1/FIA RRV2316
CONTENTS
1. CONTRAST OF MISCELLANEOUS PARTS ---------- 2
2_ SCHEMATIC DIAGRAM ...................... 8

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. BOX 1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER EUROPE NV Haven 1087, Keetberglaan l, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
©P|ONEER CORPORATION 2000

T - ZZE AUG. 2000 Printed in Japan

Page 2

DV-5300KD

1. CONTRAST OF MISCELLANEOUS PARTS

NOTES .' 0 Parts marked by NSP are generally unavailable because they are not in our Master Spare Parts List.
0 The A mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
0 Reference Nos. indicate the pages and Nos. in the service manual for the base model.
0 When ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex. 1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by
J = 5%, andK =10%).

5éoo»56x10I->561 ................................................... Roman/@Eml
47kQ->47><]0}->473 RBI/4PUE
0.5Q->R50 ................. RNZHEIEK
19->1R0 .................... ..RS/PEIEEK
EX. 2 When there are 3 effective digits (such as in high precision metal film resistors).
5.62kQ->562><10->5621 RN1/4PCI IEF
I CONTRAST TABLE
DV»5300KD/RAMXQ and DV»535/FtDXJ1/RA are constructed the same except for the following:
Ref _ _ Part No.
N ' Mark Symbol and Description Remarks
0' DV-535/RDXJ1/RA DV-53OOKD/RAMXO
PCB ASSEMBLIES
P7- 1 DVDM Assy VWSI412 VWS1413
FLJB Assy VWM2045 VWM2048
P7 - 4 FLJB Assy VWV1776 VWV1779
P7 - 2 NSP PWSB Assy VWV2174 VWV2243
NSP MJKB Assy Not used VWV1749 No. 1
BCHB Assy Not used VWV1745 No. 2
PACKING
P5 - 1 /i\ Power Cord ADG1158 ADG7018
P5 - 2 Audio Cord (L=1.5m) VDE1052 VDE1054
P5 - 3 Video Cord (L=1.5rri) VDE1053 VDE1055
P5 - 6 NSP Dry Cell Battery (RGP, AA) VEM-013 VEM1010
P5 - 9 Packing Case VHG1928 VHG1904
P5 -11 NSP Warranty Card ARY7025 ARY7046
P5 -17 Operating Instructions (English) VFlB1253 Not used
Operating Instructions (Simp-Chinese) Not used VRC1113
EXTERIOR
P7 - 8 NSF PCB Holder PNW2100 (x1) PNW2100 (x2) No.3
P7 -12 Rear Panel VNA2186 VNA2195
P7 -13 Tray VNL1858 VNL1884
P7 -15 Pioneer Name Plate VAM1099 VAM1100
P7 -16 Tray Panel VNK4591 VNK4592
P7 -17 Front Panel Assy VXA2402 VXA2405
P7 -19 NSP Pop Label VRW1830 VRW1834
P7 -20 Bonnet S VXX2651 VXX2652
P7 -24 Screw BCZ40P060FZK BCZ4OP060FN|
P7 -26 FL Lens VNK4593 VNK4734
Flexible Cable (O7P) Not used VDA1823 No. 4
Jack Holder Not used VNE2221 No. 5
Knob Not used VNK4279 No. 6
Label Not used VRW1699 For Bonnet
Label Not used VRW1739 For Rear Panel

0 The numbers in the remarks column correspond to the numbers on the "EXPLODED VIEWS".
0 For PCB assemblies, Refer to CONTRAST OF PCB ASSEMBLIES", PCB PARTS LIST, 2. SCHEMATIC DIAGRAM and 3. PCB
CONNECTION DIAGRAM".

2
