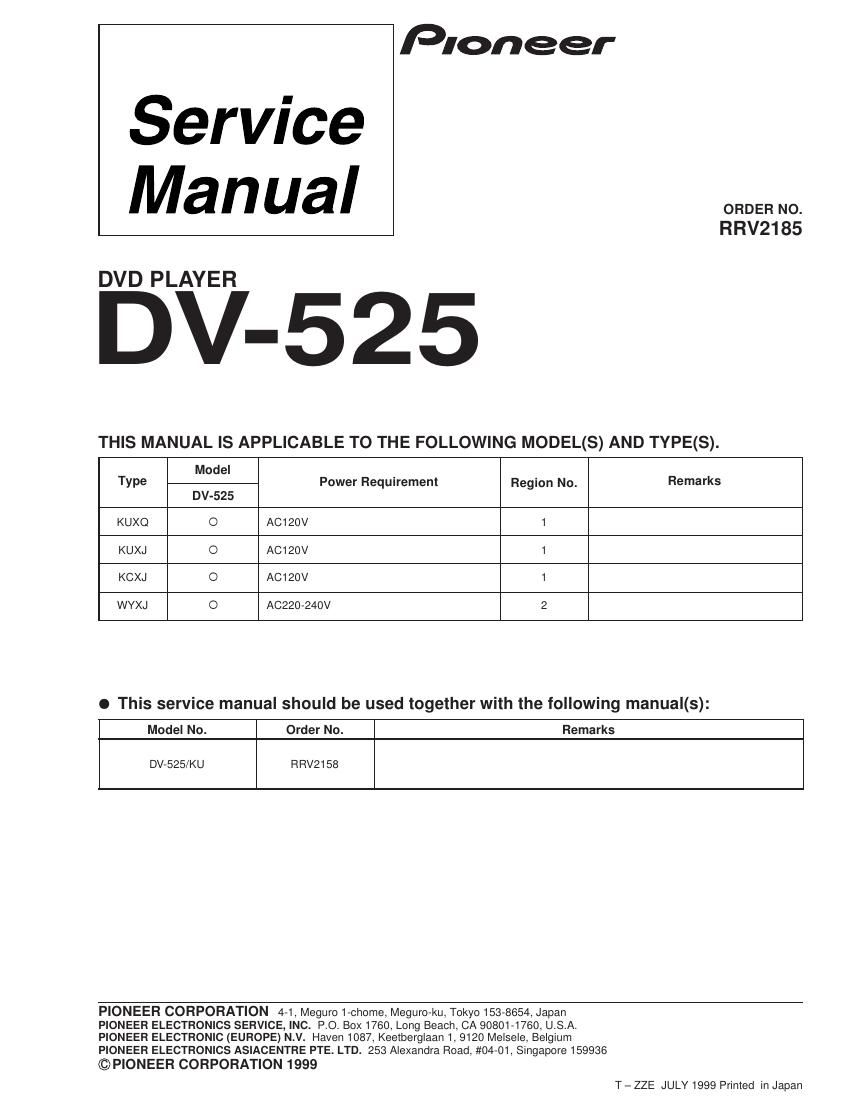

pioneer dv 5254 service manual

Extracted text from pioneer dv 5254 service manual (Ocr-read)

Page 1

DV-525 2 1. CONTRAST OF MISCELLANEOUS PARTS NOTES :ÖParts marked by Ò NSP Ó are generally unavailable because they are not in our Master Spare Parts List. ÖThe mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ÖScrew adjacent to ° mark on the product are used for disassembly. ÖReference Nos. indicate the pages and Nos. in the service manual for the base model. Part No. Remarks KU type KUXQ type KUXJ type 7 CONTRAST TABLE for DV-525/KUXQ and KUXJ DV-525/KUXQ, KUXJ and KU are constructed the same except for the following: PACKING P5 - 1 Audio Cord VDE1033 VDE1054 VDE1052 P5 - 2 Video Cord VDE1034 VDE1055 VDE1053 P5 - 4 NSP Dry Cell Battery (R6P, AA) VEM-013 VEM1010 VEM-013 P5 - 7 Packing Case VHG1800 VHG1833 VHG1807 EXTERIOR SECTION P6 - 6 Tray VNL1731 VNL1731 VNK4570 NSP Clamper Assy Not used VXA2379 VXA2379 P6 -12 Clamper Plate VNE2068 VNE2068 VNE2068 P6 -13 Bridge VNE2069 VNE2069 VNE2069 P6 -14 Clamper VNL1738 VNL1738 VNL1738 FRONT PANEL SECTION P7 - 3 Flexible Cable (14P) VDA1724 VDA1724 VDA1744 P7 - 4 Flexible Cable (09P) VDA1725 VDA1725 VDA1746 BOTTOM VIEW SECTION P9 - 8 AC Power Cord ADG7024 ADG7024 VDG1075 P9 - 9 Flexible Cable (12P) VDA1692 VDA1692 VDA1749 P9 -10 Flexible Cable (26P) VDA1689 VDA1689 VDA1742 P9 -11 Flexible Cable (33P) VDA1723 VDA1723 VDA1743 P9 -17 Rear Panel VNA2080 VNA2115 VNA2073 LOADING MECHANISM ASSY P10 -15 Connector Assy VKP2198 VKP2198 VKP2218 P10 -21 Flexible Cable (24P) VDA1701 VDA1701 VDA1748 P10 -22 Cushion VEB1312 Not used Not used Ref. No.MarkSymbol and Description

Page 2

DV-525 3 PACKING P5 - 1 Audio Cord VDE1033 VDE1052 P5 - 2 Video Cord VDE1034 VDE1053 P5 - 7 Packing Case VHG1800 VHG1831 P5 -19 KC Label VRW1716 Not used EXTERIOR SECTION P6 - 6 Tray VNL1731 VNK4570 NSP Clamper Assy Not used VXA2379 P6 -12 Clamper Plate VNE2068 VNE2068 P6 -13 Bridge VNE2069 VNE2069 P6 -14 Clamper VNL1738 VNL1738 FRONT PANEL SECTION P7 - 3 Flexible Cable (14P) VDA1724 VDA1744 P7 - 4 Flexible Cable (09P) VDA1725 VDA1746 BOTTOM VIEW SECTION P9 - 8 AC Power Cord ADG7024 VDG1075 P9 - 9 Flexible Cable (12P) VDA1692 VDA1749 P9 -10 Flexible Cable (26P) VDA1689 VDA1742 P9 -11 Flexible Cable (33P) VDA1723 VDA1743 P9 -17 Rear Panel VNA2080 VNA2073 LOADING MECHANISM ASSY P10 -15 Connector Assy VKP2198 VKP2218 P10 -21 Flexible Cable (24P) VDA1701 VDA1748 P10 -22 Cushion VEB1312 Not used Ref. No.Remarks KC type KCXJ typePart No. Mark Symbol and Description 7 CONTRAST TABLE for DV-525/KCXJ DV-525/KCXJ and DV-525/KC are constructed the same except for the following:
