Pioneer dv 5251 service manual

This is the 3 pages manual for pioneer dv 5251 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 3
pioneer dv 5251 service manual

Extracted text from pioneer dv 5251 service manual (Ocr-read)

Page 1

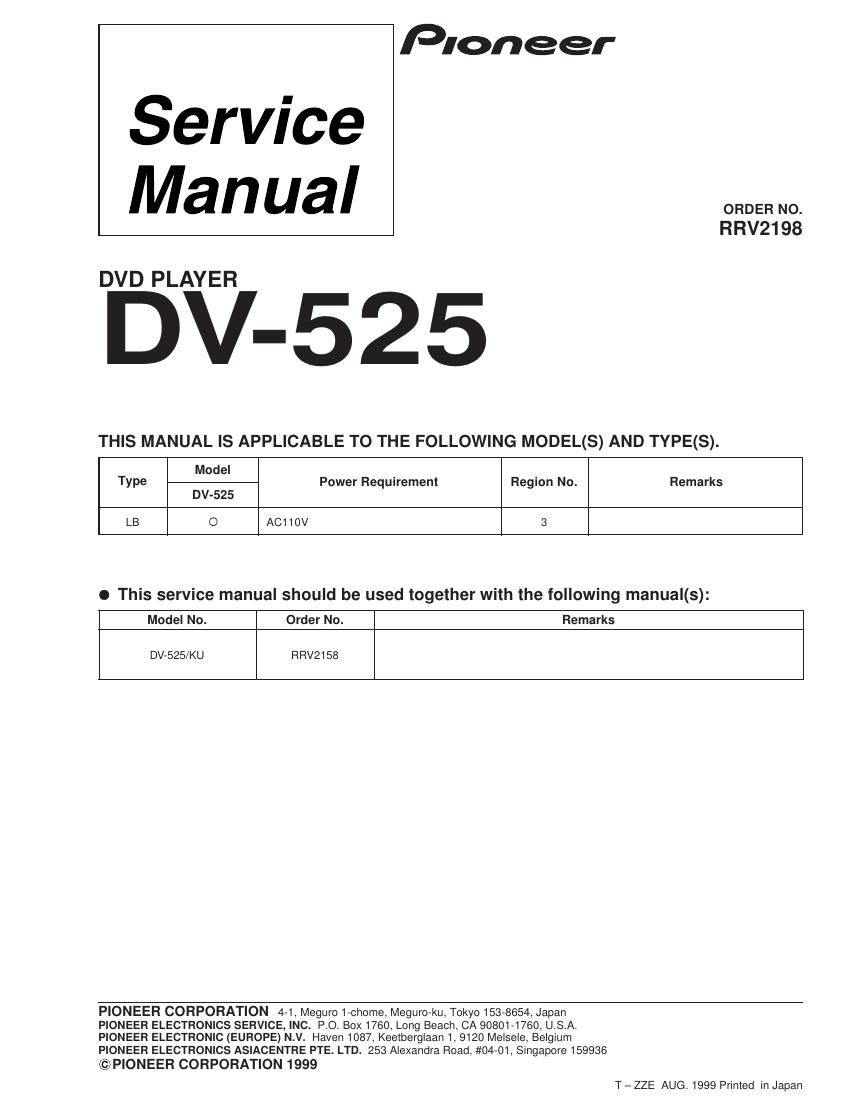

DV-525 2 1. CONTRAST OF MISCELLANEOUS PARTS NOTES :ÖParts marked by Ò NSP Ó are generally unavailable because they are not in our Master Spare Parts List. ÖThe mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ÖScrew adjacent to ° mark on the product are used for disassembly. ÖReference Nos. indicate the pages and Nos. in the service manual for the base model. 7 CONTRAST TABLE DV-525/LB and KU are constructed the same except for the following: ASSEMBLIES P9 - 2 AVJB ASSY VWV1693 VWV1692 NSP FLKB ASSY VWM1912 VWM1913 P7 - 1 FLKY ASSY VWG2050 VWG2105 P7 - 2 NSP PWSB ASSY VWG2103 VWG2056 PACKING P5 - 3 Remote Control Unit (CU-DV049) VXX2643 Not used P5 - 3 Remote Control Unit (CU-DV042) Not used VXX2636 P5 - 7 Packing Case VHG1800 VHG1856 P5 -10 NSP Warranty Card ARY7023 Not used P5 -11 Operating Instructions (English) VRB1220 VRB1224 P5 -23 NSP Label VRW1629 Not used Operating Instructions (Trad-Chinese) Not used VRC1091 EXTERIOR SECTION P6 - 1 Bonnet S VXX2651 VXX2652 P6 - 2 Tray Panel VNK4448 VNK4445 P6 - 6 Tray VNL1731 VNK4333 P6 -11 Screw BCZ40P060FZK BCZ40P060FNI P6 -17 65 Label ARW7050 Not used FRONT PANEL SECTION P7 - 5 Front Panel VNK4444 VNK4438 P7 - 6 FL Lens VEC2095 VEC2094 P7 - 7 Name Plate PAM1776 PAM1779 P7 - 8 PW Botton (POWER) VNK4101 VNK4059 P7 - 9 Main Key VNK4447 VNK4446 BOTTOM VIEW SECTION P9 - 8 AC Power Cord ADG7024 VDG1056 P9 -15 Cord Stopper CM-22C CM-22 P9 -17 Rear Panel VNA2080 VNA2095 P9 -25 NSP Label VRW1629 Not used Ref. No.Remarks KU type LB typePart No. Mark Symbol and Description

Page 2

DV-525 3 7 CONTRAST OF PCB ASSEMBLIES IC502 Not used TA7302P *1 Q501, Q502 Not used 2PB709A *1 Q503 Not used DTC114YK *1 Q504 Not used PDTA124EK *1 L501 Not used LCTA470J2520 *1 C501 Not used CCSQCH390J50 *1 C502, C510 Not used CKSQYF103Z50 *1 C503, C504, C507, C511 Not used CKSQYF104Z25 *1 C508 Not used CEAT101M10 *1 R501 Not used RS1/10S681J *1 R502 RS1/10S0R0J RS1/10SC68R0D R503 Not used RS1/10S152J *1 R504 Not used RS1/10S151J *1 R505 Not used RS1/10S103J *1 R506, R507 Not used RS1/10S222J *1 R508 Not used RS1/10S223J *1 R570 RS1/10S0R0J Not used Mark Symbol and DescriptionPart No. VWV1693 VWV1692Remarks AVJB ASSY VWV1692 and VWV1693 are constructed the same except for the following: *1: These parts are used for DV-525/WY. Refer to the service manual RRV2158. R141 RS1/10S622J RS1/10S273J R143 RS1/10S363J RS1/10S683J Mark Symbol and DescriptionPart No. VWG2050 VWG2105Remarks FLKY ASSY VWG2105 and VWG2050 are constructed the same except for the following: D202 Not used SLR-343YC *1 S202 Not used ASG7013 *1 R210 Not used RS1/10S221J *1 R213 Not used RS1/10S0R0J *1 Mark Symbol and DescriptionPart No. VWG2103 VWG2056Remarks PWSB ASSY VWG2056 and VWG2103 are constructed the same except for the following: *1: These parts are used for DV-525/WY. Refer to the service manual RRV2158.
