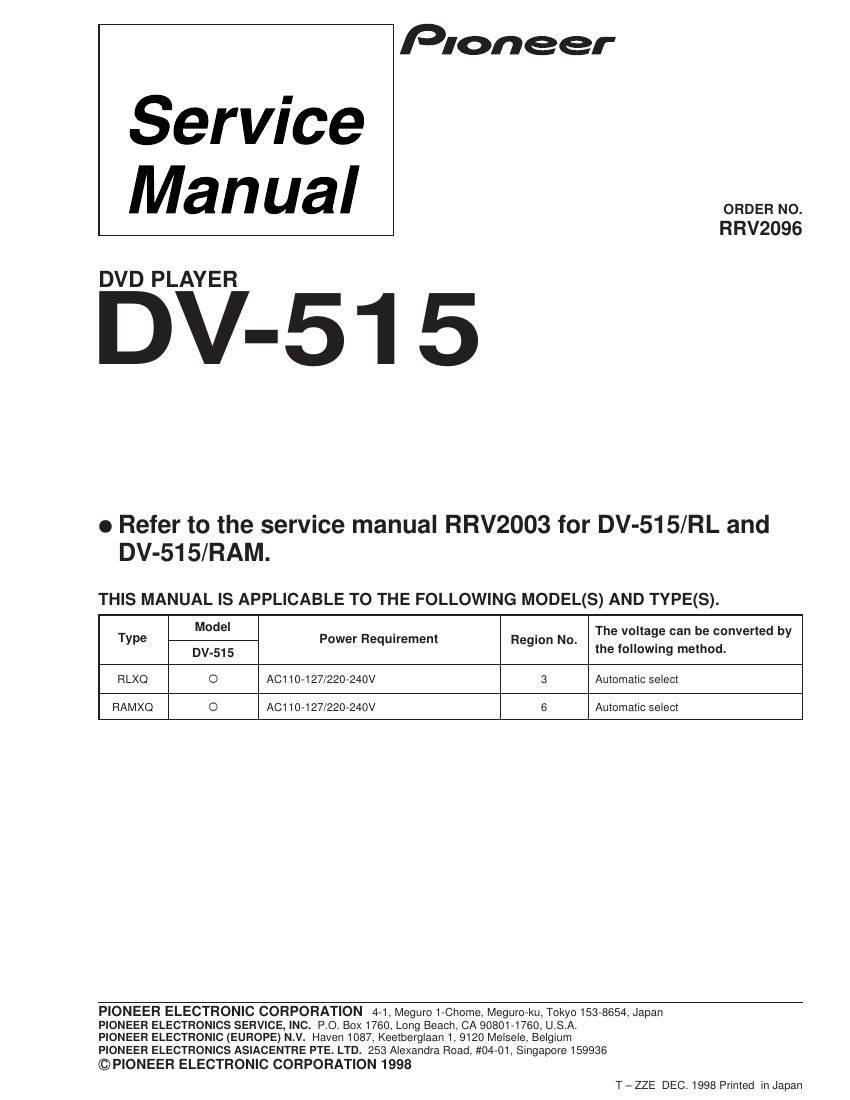

Pioneer dv 515 service manual

Page 1

DV-515 2 1. CONTRAST OF MISCELLANEOUS PARTS PACKING P4 - 1 AC Power Cord ADG1127 ADG1154 P4 - 7 NSP Dry Cell Battery(R6P, AA) VEM-013 VEM1010 P4 -13 Packing Case VHG1773 VHG1784 P4 -14 Mirror Mat Sheet Z23-007 DHL1006 BOTTOM VIEW SECTION P8 -13 Rear Panel VNA2001 VNA2046 Ref. No.Remarks RL type RLXQ typePart No. Mark Symbol and Description 7 CONTRAST TABLE for RLXQ type DV-515/RLXQ and DV-515/RL are constructed the same except for the following: NOTES :ÖParts marked by Ò NSP Ó are generally unavailable because they are not in our Master Spare Parts List. ÖThe mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ÖScrew adjacent to ° mark on the product are used for disassembly. ÖReference Nos. indicate the pages and Nos. in the service manual for the base model. PACKING P4 - 1 AC Power Cord ADG7017 ADG7018 P4 - 7 NSP Dry Cell Battery(R6P, AA) VEM-013 VEM1010 P4 -13 Packing Case VHG1774 VHG1781 P4 -14 Mirror Mat Sheet Z23-007 DHL1006 Label Not used VRW1760 for Packing Case BOTTOM VIEW SECTION P8 -13 Rear Panel VNA2035 VNA2042 Label Not used VRW1739 for Rear Panel Ref. No.Remarks RAM type RAMXQ typePart No. Mark Symbol and Description 7 CONTRAST TABLE for RAMXQ type DV-515/RAMXQ and DV-515/RAM are constructed the same except for the following:
