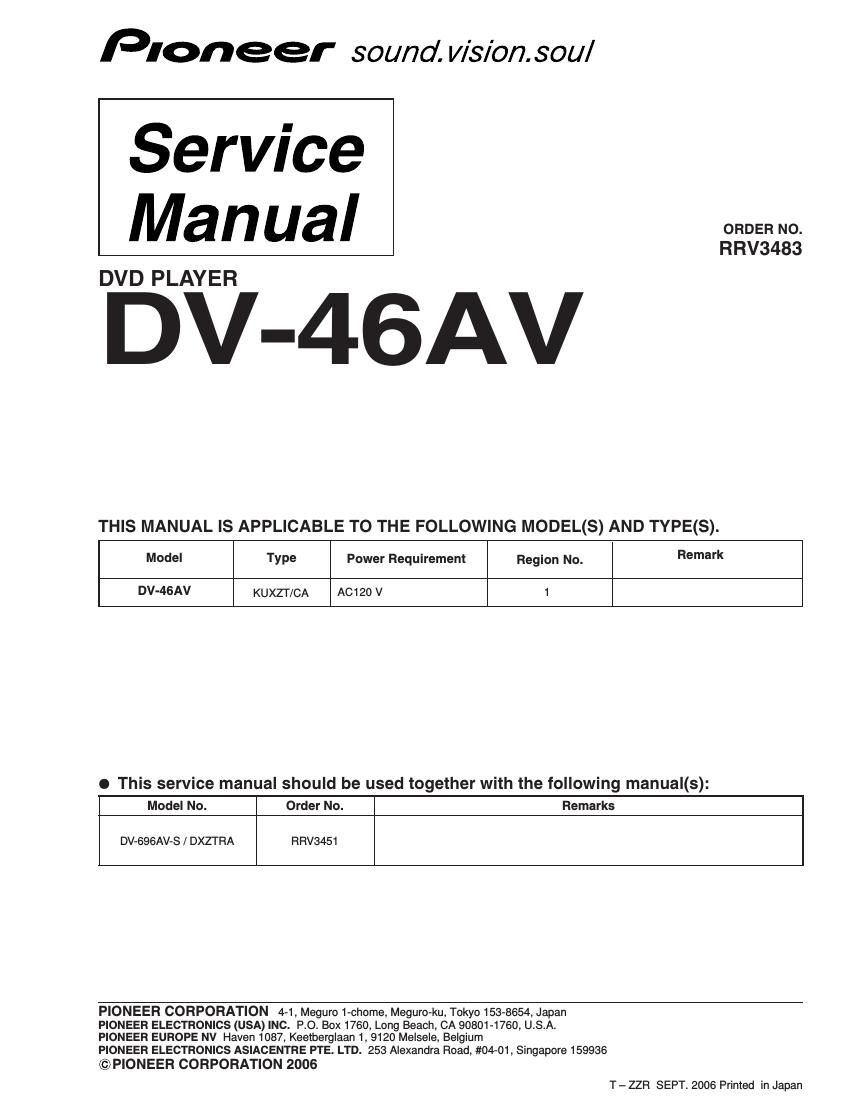

Pioneer dv 46 av service manual
This is the 3 pages manual for pioneer dv 46 av service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer dv 46 av service manual (Ocr-read)
Page 1
2 1 23 4 1234 C D F A B E DV-46AV 1. CONTRAST OF MISCELLANEOUS PARTS Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: CONTRAST TABLE DV-696AV-S/DXZTRA and DV-46AV/KUXZT/CA are constructed the same except for the following: DV-696-S / DXZTRADV-46AV / KUXZT/CA PCB ASSEMBLIES SECTION P9- 1 DVD MT PCB Assy A2J009A130 A2J015A130 P9- 2 OPERATION PCB Assy A2I813A270 A2I801A270 P9- 4 POWER PCB Assy A2J012A240 A2J015A240 PACKING SECTION P7- 1 Cord Set AC 1209198901Not used P7- 3 Remote Control 07650KY010 07650NF010 P7- 4 Battery Cover VNK4998 AZA7424-A P7- 6 NSP Guarantee Card J2I83002A J2J01502A P7- 7 Instruction Book (English) J2J00901A J2J01501A P7-14 Package 792WHAA190 792WHA0693 P7-15 Gift Box 793WCDD221 793WCDD302 P7-17 Carton Label 723000D381 Not used EXTERIOR SECTION P9- 7 NSP Energy, Star Label Not used 7230007965 Form Front Cabi Assy P9- 8 NSP Plate, Bottom 702WSA0291 702WSA0288 P9-14 Cabinet, Top 702WSB0114 702WSB0115 P9-15 NSP Sheet, Fuse 7240001122 Not used P9-20 Screw, Tap Tite (B) 8109K3060U 8109K3060S P9-24 NSP Sheet, Jack 2 722631A146 722631A164 P9-25 NSP Sheet, Jack 3 722631A158 722631A165 P9-32 NSP Sheet Caution 725000A089 7250000597 P9-101 Front, Cabi Assy 7A701A754A 7A701A806A P9-101D Flap, DVD 712WPA0249 712WPDA078 P9-101O Sheet DVD 7236740001 Not used Cord AC BushNot used 1209618901 No. 1 Ref. No.Remarks Part No. MarkSymbol and Description Notes:- The numbers in the remarks column correspond to the numbers on "EXPLODED VIEWS". - For ASSEMBLIES, refer to CONTRAST OF PCB ASSEMBLIES.
Page 2
3 1 234 1 23 4 C D F A B E DV-46AV A2J009A130 and A2J015A130 are constructed the same except for the following : DVD MT PCB ASSY Part No. A2J009A130 Mark Symbol and DescriptionRemarks A2J015A130 IC4004 FLASH IC (Memory Data) S2J003AF03 S2J015AF01 A OPERATION PCB ASSY Although A2I813A270 and A2I801A270 are different in part number, they consist of the same components. EXPLODED VIEWS - EXTERIOR SECTION POWER PCB ASSY Although A2J012A240 and A2J015A240 are different in part number, they consist of the same components. CONTRAST OF PCB ASSEMBLIES PCB240 (POWER PCB ASS'Y) A A F Sheet, Jack 3 Sheet, Jack 2 Sheet, Jack 1 PCB130 (DVD PCB ASS'Y) Screw Screw Screw ScrewScrew Screw Screw Screw Screw Screw Plate, BottomNo. 1 Power PCB ASSY DVD MT PCB ASSY
